Manroland - R 702

Key Technical Aspects:

Dimensions and Specifications : The Manroland R 702 has a length of 23.62 ft (7.2 m), a width of 6.56 ft (2 m), and a height of 7.87 ft (2.4 m). It weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size of 28.35 x 40.16 in (720 x 1020 mm). The machine's capacity is up to 15,000 sheets per hour.

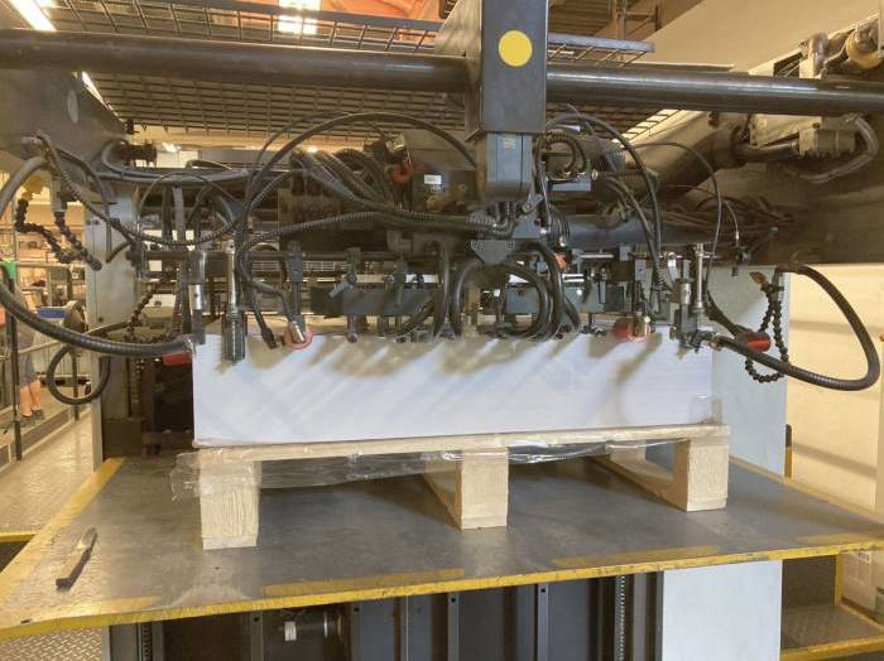

Paper Handling : The R 702 features a high-capacity feeder with a maximum pile height of 31.5 in (800 mm) and a sheet thickness range of 0.06-0.6 mm. The machine is equipped with a double-sheet detection system and an anti-static device to prevent sheet sticking. The delivery system includes a jogger and a pile Turner for efficient sheet stacking.

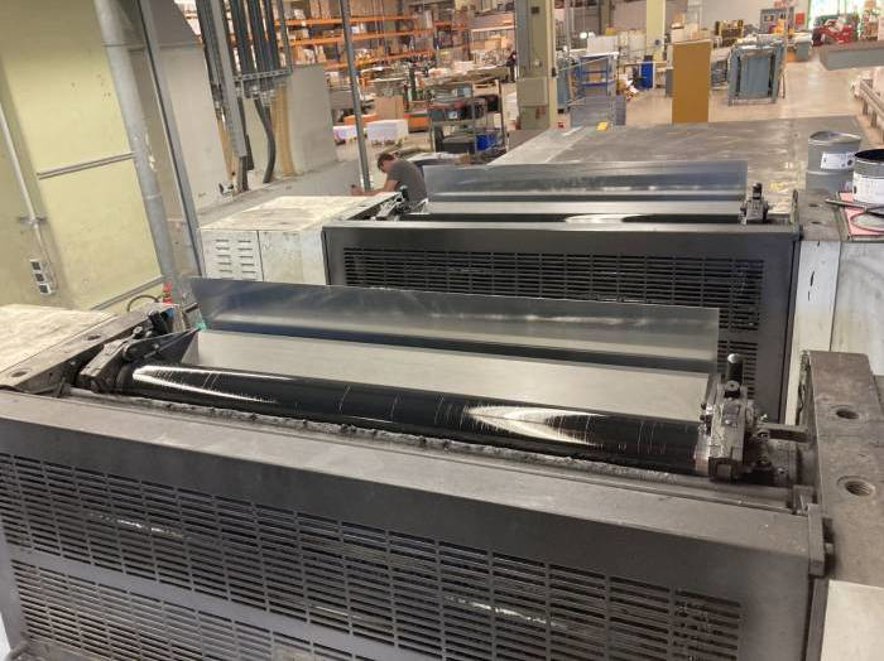

Printing Unit : The Manroland R 702 has a maximum printing speed of 15,000 sheets per hour and a resolution of 2540 dpi. It uses a conventional offset printing process with a maximum printing area of 28.35 x 40.16 in (720 x 1020 mm). The machine features a seven-color printing unit with a maximum ink transfer rate of 1.5 mm.

Ink System : The R 702 uses a conventional ink system with a maximum ink capacity of 20 kg per color. The machine features an ink temperature control system and an ink degassing system to ensure consistent ink flow and quality.

Plate Cylinder : The plate cylinder has a diameter of 4.33 ft (1.32 m) and a circumference of 13.78 ft (4.2 m). It features a quick-change plate system with a maximum plate size of 28.35 x 40.16 in (720 x 1020 mm) and a minimum plate size of 20.08 x 28.35 in (510 x 720 mm).
