Machine Specification
| Features | Value |
|---|---|
| Number of colours | 8 |
| Max sheet size | 29 x 23 inch | 74 x 59 cm |

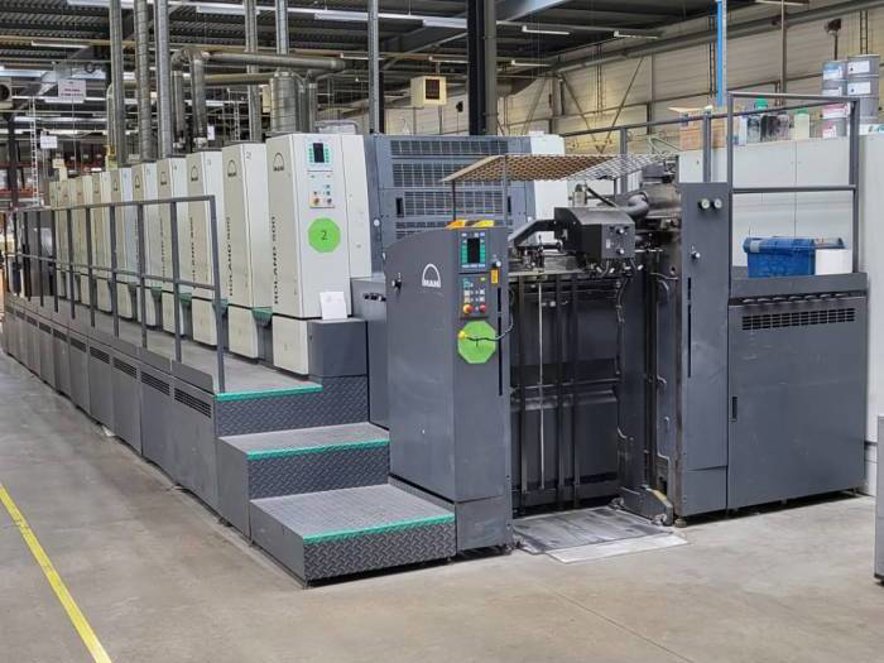

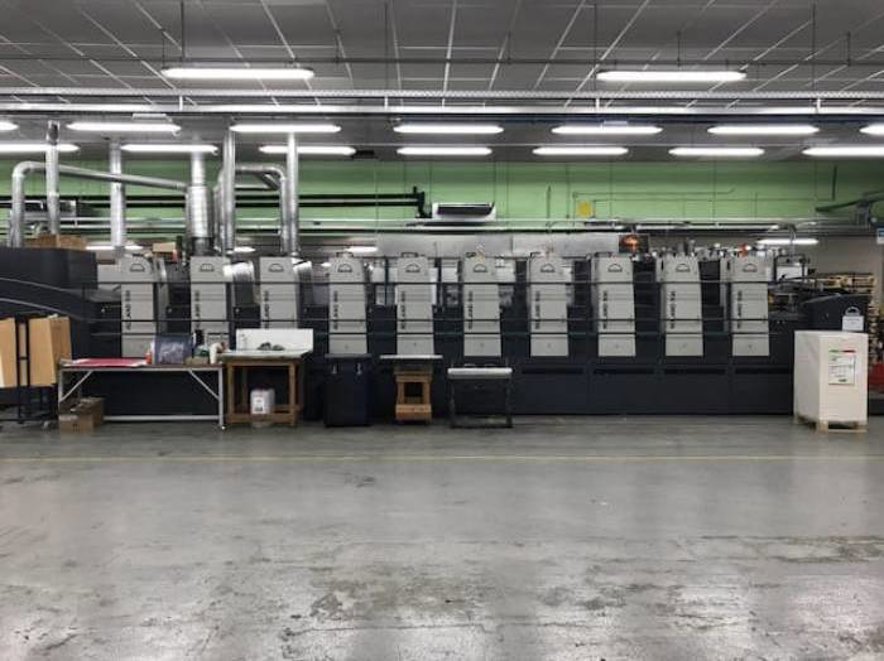

Machine Description
Up raised 240 mm (stand included).
.
Double coating unit with extension 1904 mm between each other.
.
ELINE Kammarrakel.
.
Quick change coating system.
.
Washing automatic system for varnish.
.
PPL.
.
RCI.
.

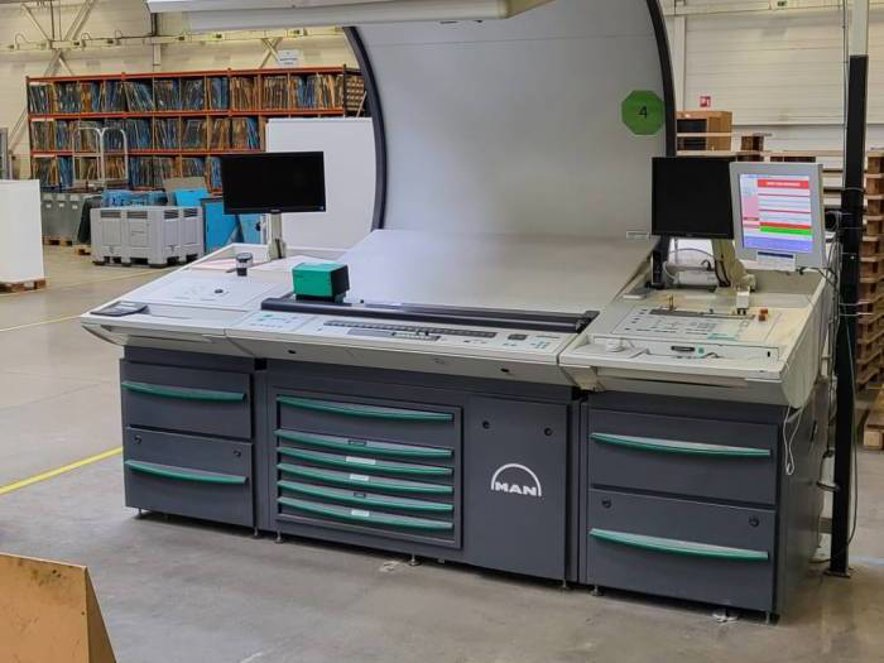

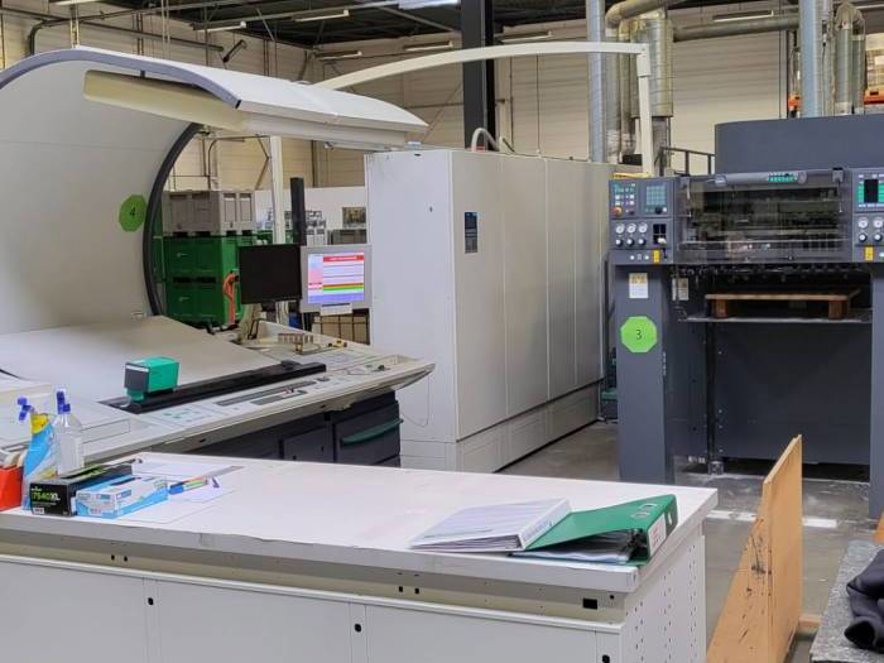

Press Pilot with color pilot D.
.
Automatic perfecting 1/5; 6/0.
.
Deltamatic dampening l ( IPA package ) for reduced alcohol level 2,5% or without alcohol.
.
Automatic washers for blankets and ink rollers.
.
Brush washers.
.
Rietschel Air Center.
.
Cooling, recirculation TECHNOTRANS BETA C.
.
Graft CAN Tronic.
.
Inline Observer ( 9 cameras, screen, computer, desk control).
.
Extended Delivery.
.
3 mechanical double sheets detectors.
.
1 electronic double sheet detector.
.
2 inter decks dryers IR/TL between 2 coating unit.
.
Final Dryer IR/TL/UV Rolandsecomatic
| Model | Manroland-R 506 PLTTL UV |
|---|---|
| Manufacturer | Manroland |
| Year | 2007 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Europe Western |
About Manroland - R 506 PLTTL UV
The Manroland R 506 PLTTL UV is a high-performance sheet-fed offset printing press designed for commercial and packaging printing applications. This machine is part of the ROLAND 500 series, known for its exceptional print quality, high productivity, and versatility. The R 506 PLTTL UV is equipped with advanced features such as UV printing capabilities, allowing for the production of high-gloss and special effects finishes. Its key benefits include fast job changeovers, reduced waste, and increased profitability. Typical applications of this press include printing of high-end commercial materials, packaging, and specialty products.
Key Technical Aspects:
Dimensions and Specifications : The Manroland R 506 PLTTL UV has a length of 23.62 ft (7.2 m), a width of 6.56 ft (2 m), and a height of 7.38 ft (2.25 m). It weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size of 20.47 x 29.53 in (520 x 750 mm). The press has a capacity of up to 15,000 sheets per hour.
Paper Handling : The R 506 PLTTL UV features a high-capacity feeder with a maximum pile height of 31.5 in (800 mm) and a sheet thickness range of 0.06-0.6 mm. The press is equipped with a double-sheet detection system and an anti-static device to prevent sheet sticking. The delivery system has a maximum pile height of 31.5 in (800 mm) and is equipped with a jogger and a pile Turner for easy sheet handling.
Printing Unit : The printing unit of the R 506 PLTTL UV features six colors plus a UV coating unit, with a maximum print speed of 15,000 sheets per hour. The press uses a 1:1:1:1:1:1 cylinder configuration and has a print resolution of 254 lpi (100 l/cm). The printing unit is equipped with Manroland's proprietary Alcolor dampening system and a temperature-controlled inking system.
Ink System : The R 506 PLTTL UV uses a high-pigment, low-VOC UV ink system with a capacity of 2.64 gal (10 L) per color. The ink system features a circulation system with a temperature control range of 20-40°C (68-104°F) and an ink viscosity control system.
Plate Cylinder : The plate cylinder of the R 506 PLTTL UV has a diameter of 4.33 ft (1.32 m) and a circumference of 13.45 ft (4.1 m). The plate cylinder is equipped with a plate changing system that allows for fast and easy plate changes, reducing downtime and increasing productivity.
