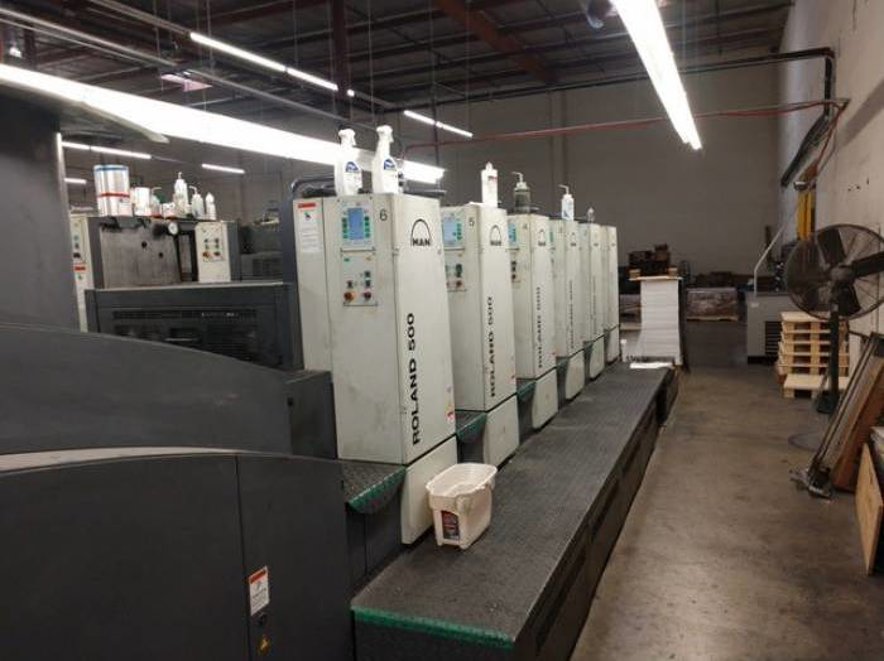

Manroland - R 505 PLV UV

Sheet Fed / Offset Manroland R 505 PLV UV
Sheet Fed / Offset Manroland R 505 PLV UV
Sheet Fed / Offset Manroland R 505 PLV UV
Sheet Fed / Offset Manroland R 505 PLV UV
Sheet Fed / Offset Manroland R 505 PLV UV
Sheet Fed / Offset Manroland R 505 PLV UV

Machine Specification

FeaturesValue
Number of colours5
Max sheet size20.87X29.13 inch | 53x74 cm

Machine Description

pprox. 135 million imps.
Perfector is 1 over 4.
PPL (semi auto plate changers).
Auto blanket wash (brush style).
Auto roller wash.
Paper and pressure presets.

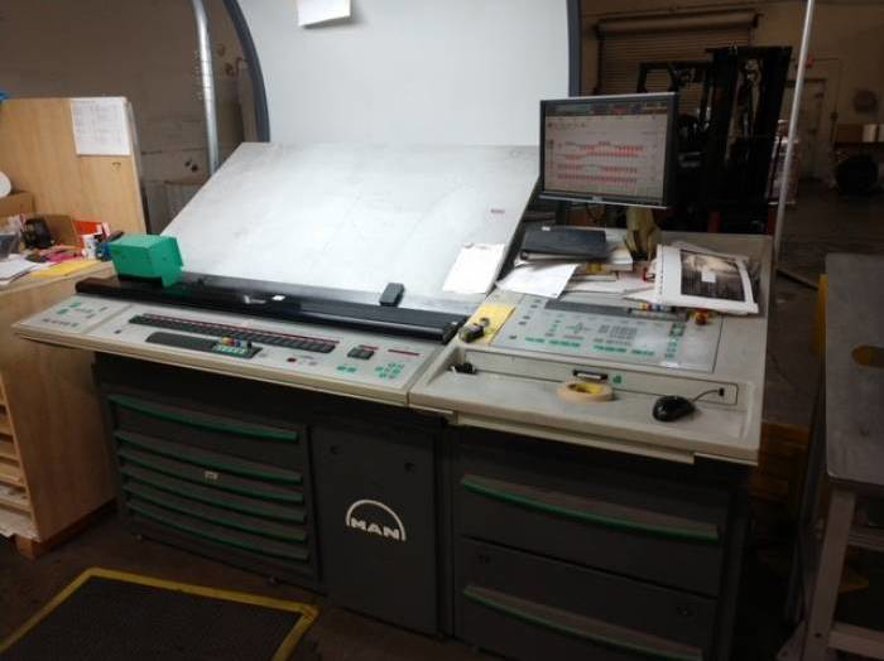

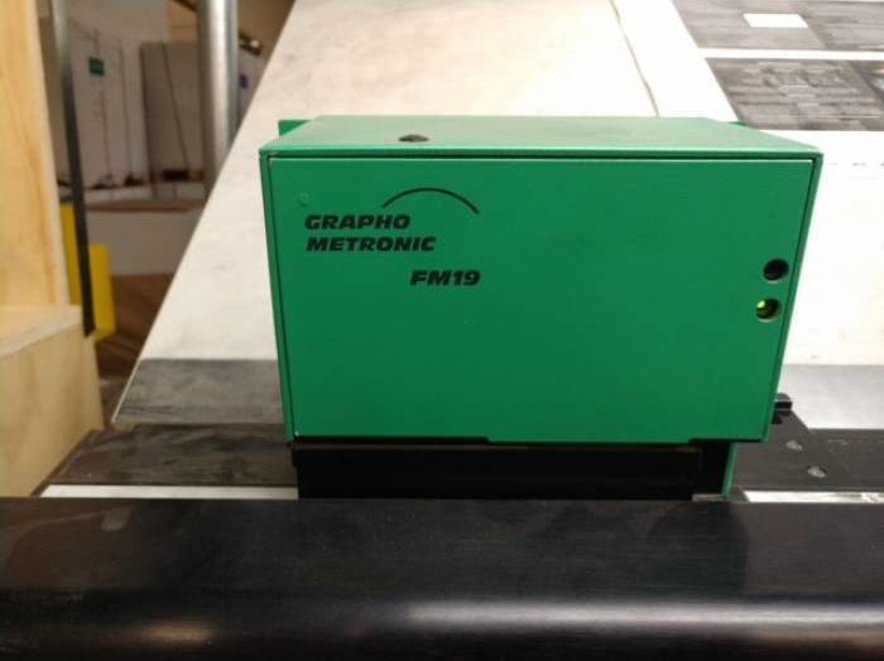

CCI closed loop color control with scanner.
Plate punch.

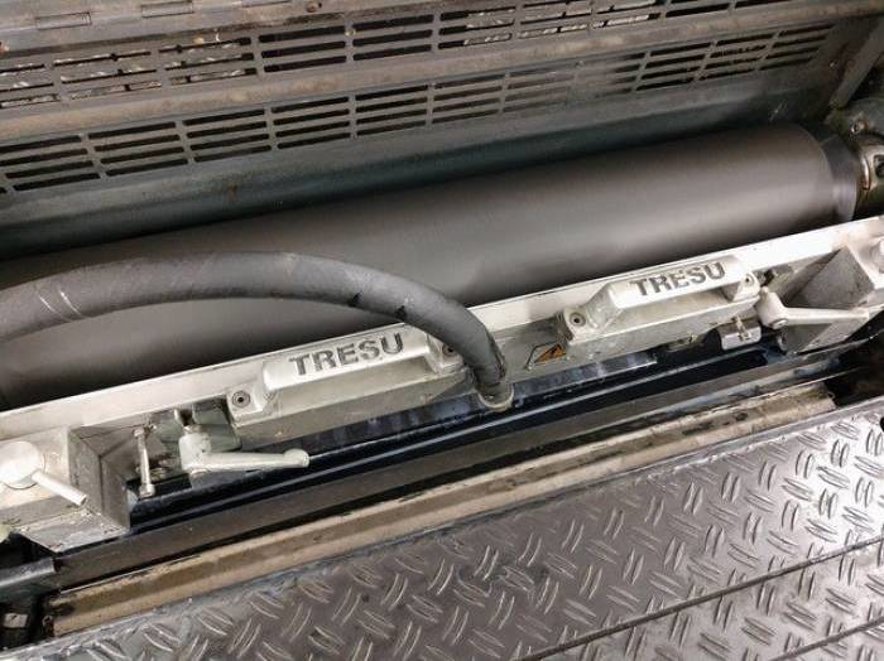

Tresu anilox coater.
Eltosch IR dryer.
Eltosch UV system total of 5 lamps..
3 lamps interdeck.
2 lamps in delivery.
Combi unit for both ink chilling and refrigeration recirculation for dampening.
Flash chromed impression cylinders after perfector.
Continuous feeder and delivery

ModelManroland-R 505 PLV UV
ManufacturerManroland
Year2006
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationItaly

About Manroland - R 505 PLV UV

The Manroland R 505 PLV UV is a high-performance sheet-fed offset printing press designed for commercial and packaging printing applications. This press is part of the ROLAND 500 series, known for its exceptional print quality, high productivity, and versatility. The R 505 PLV UV is equipped with advanced features such as UV printing capabilities, allowing for the production of high-gloss and special effects prints. Its key benefits include fast job changeovers, reduced waste, and increased profitability. Typical applications of this press include printing of high-end commercial materials, packaging, and specialty products.

Key Technical Aspects:

Dimensions and Specifications : The Manroland R 505 PLV UV has a length of 6,350 mm, a width of 2,350 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum sheet size of 720 x 1,020 mm. The press has a capacity of up to 15,000 sheets per hour.

Paper Handling : The R 505 PLV UV features a high-performance paper handling system, including a feeder with a capacity of up to 5,000 sheets, an infeed system with sheet alignment, and a delivery system with a pile height of up to 1,500 mm. The press is also equipped with an automatic sheet size changeover system and a sheet ejection system.

Printing Unit : The printing unit of the R 505 PLV UV is equipped with five printing units, each with a maximum print speed of 15,000 sheets per hour. The press uses a UV printing technology with a maximum resolution of 400 lpi. It also features a high-precision plate cylinder with a diameter of 1,020 mm and a gearless drive system.

Ink System : The R 505 PLV UV uses a UV ink system with a capacity of up to 20 kg per color. The press features a high-precision ink metering system and an automatic ink supply system. The UV ink is cured using high-powered UV lamps, allowing for fast drying and high-gloss finishes.

Plate Cylinder : The plate cylinder of the R 505 PLV UV has a diameter of 1,020 mm and is designed for high-precision printing. The cylinder features a gearless drive system and is equipped with a automatic plate changing system, allowing for fast job changeovers and reduced waste.
