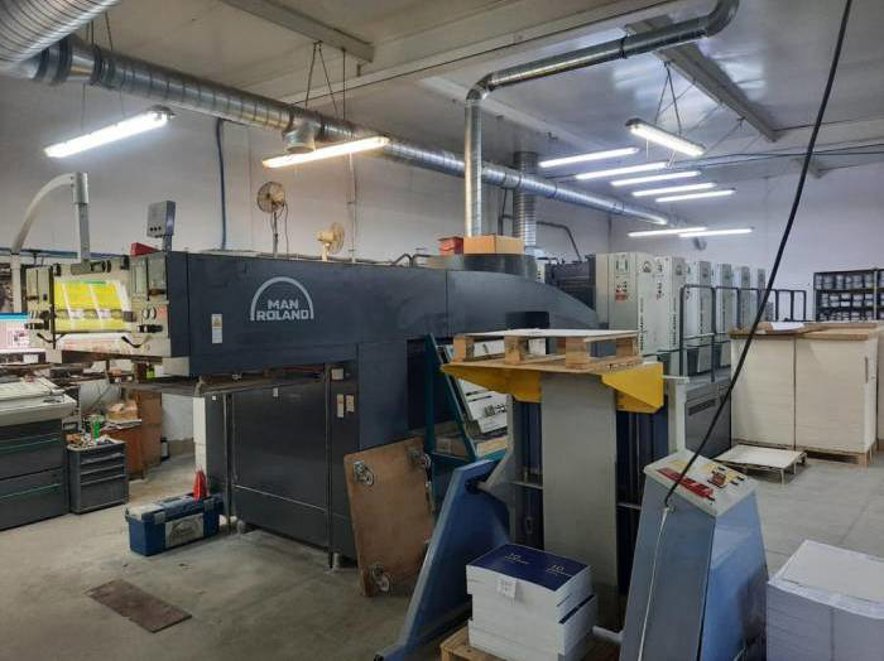

Manroland - R 505 OB+LV

Key Technical Aspects:

Dimensions and Specifications : The Manroland R 505 OB+LV has a length of 12,500 mm, a width of 2,500 mm, and a height of 2,200 mm. It weighs approximately 25 tons and has a maximum sheet size of 720 x 1,020 mm. The press has a capacity of up to 18,000 sheets per hour.

Paper Handling : The R 505 OB+LV features a high-performance paper handling system, including a feeder with a capacity of up to 5,000 sheets, an in-line sheet inspection system, and an output conveyor with a stacking capacity of up to 2,000 sheets. The press is also equipped with an automatic plate changing system and an automatic wash-up system.

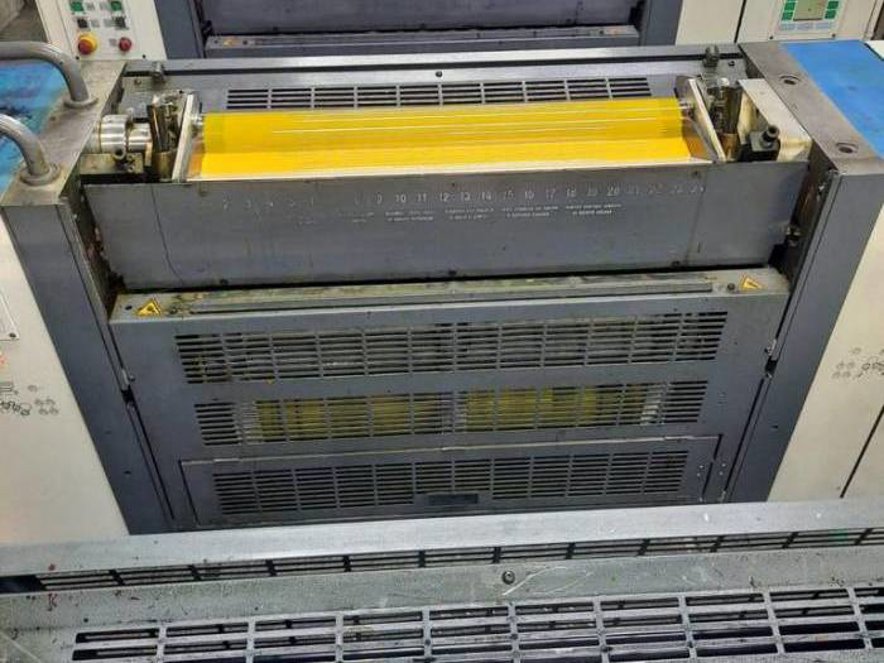

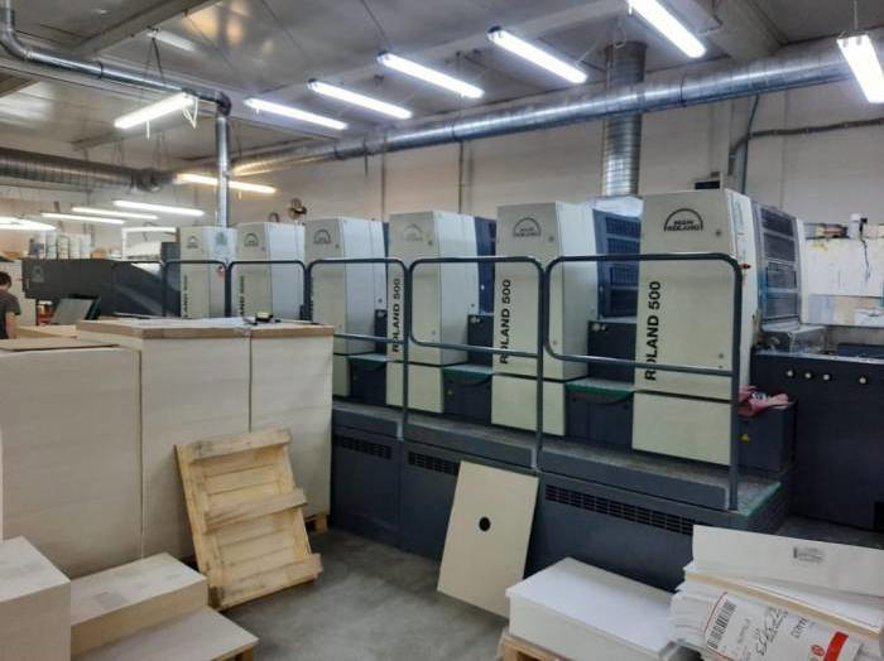

Printing Unit : The printing unit of the R 505 OB+LV is equipped with 5 printing units, each with a maximum printing speed of 18,000 sheets per hour. The press uses a high-precision printing cylinder with a diameter of 505 mm and a circumference of 1,570 mm. The printing unit features a maximum resolution of 300 lpi and uses a variety of printing technologies, including conventional offset, UV, and hybrid printing.

Ink System : The R 505 OB+LV uses a high-performance ink system with a capacity of up to 20 kg per color. The press features a closed-loop ink control system, which ensures consistent ink density and color accuracy. The ink system is also equipped with an automatic ink supply and wash-up system.

Plate Cylinder : The plate cylinder of the R 505 OB+LV has a diameter of 505 mm and a circumference of 1,570 mm. The plate cylinder is designed for high-precision printing and features a maximum plate thickness of 2.5 mm. The press uses a variety of plate materials, including conventional offset plates, UV plates, and hybrid plates.
