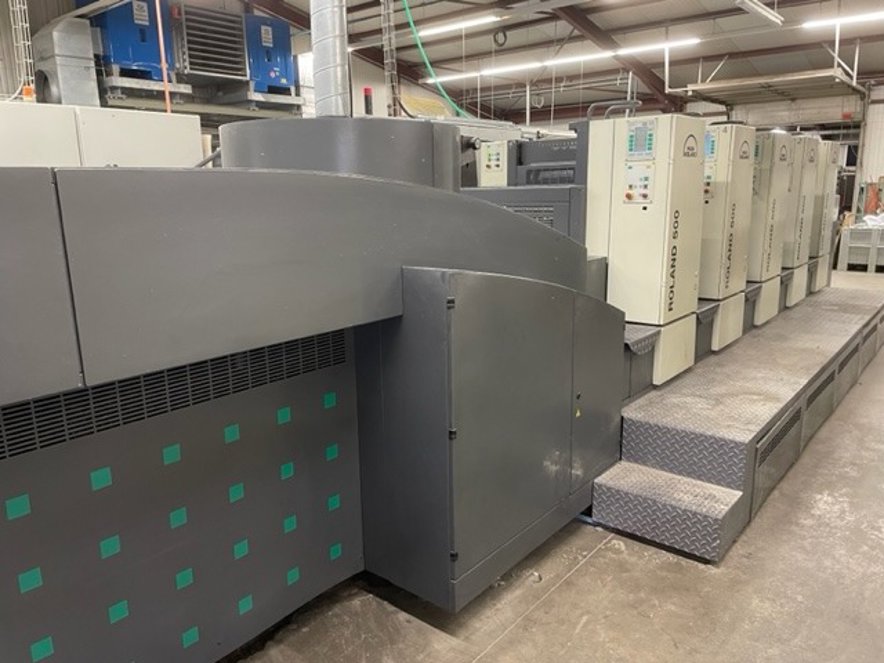

Manroland - R 504 OB+LV

Key Technical Aspects:

Dimensions and Specifications : The Manroland R 504 OB+LV has a length of 23.62 ft (7.2 m), a width of 6.56 ft (2 m), and a height of 7.38 ft (2.25 m). It weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size capacity of 20.47 x 29.53 in (520 x 750 mm).

Paper Handling : The R 504 OB+LV features a high-capacity feeder with a maximum pile height of 31.5 in (800 mm) and a sheet thickness range of 0.06-0.6 mm. It is equipped with a double-sheet detection system and an anti-static device to prevent sheet sticking. The machine has a maximum output capacity of 15,000 sheets per hour.

Printing Unit : The R 504 OB+LV has a maximum print speed of 15,000 sheets per hour and a print resolution of 254 lpi (100 l/cm). It uses a conventional offset printing process with a maximum printing area of 19.69 x 28.74 in (500 x 730 mm). The machine is equipped with a Variodamp dampening system and a remote inking system for precise ink control.

Ink System : The R 504 OB+LV uses a conventional oil-based ink system with a maximum ink capacity of 22.04 gal (83.5 L) per unit. The machine features an automatic ink supply system and an ink temperature control system to ensure consistent ink viscosity.

Plate Cylinder : The R 504 OB+LV has a plate cylinder diameter of 4.33 ft (1.32 m) and a plate thickness range of 0.039-0.118 in (1-3 mm). The machine features a semi-automatic plate changing system and a plate cleaning system to ensure efficient plate handling and reduced waste.
