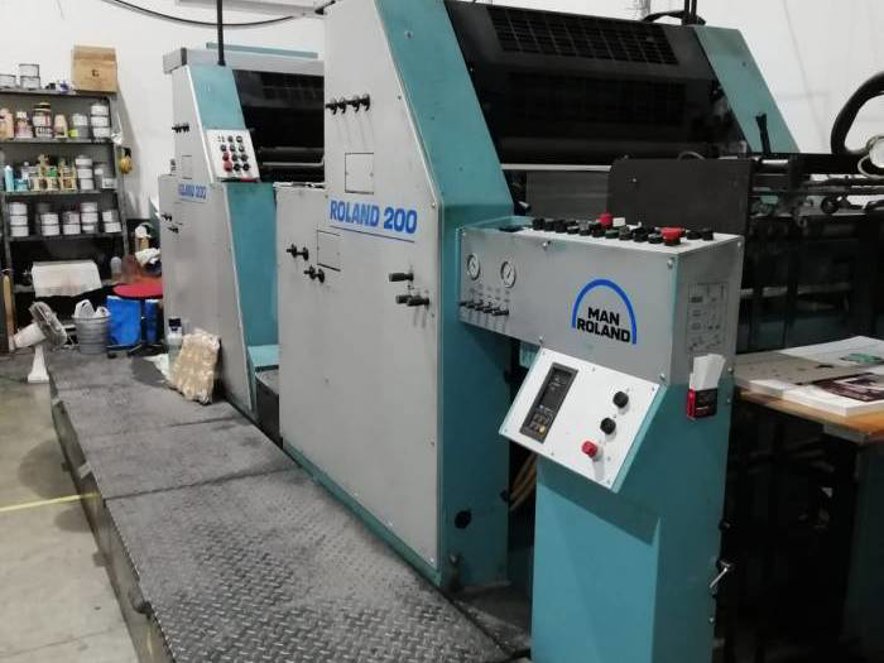

Manroland - R 204 T0B

Key Technical Aspects:

Dimensions and Specifications : The Manroland R 204 T0B has a length of 23.62 ft (7.2 m), a width of 6.56 ft (2 m), and a height of 7.38 ft (2.25 m). It weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size of 29.53 x 41.34 in (750 x 1050 mm). The press has a capacity of up to 15,000 sheets per hour.

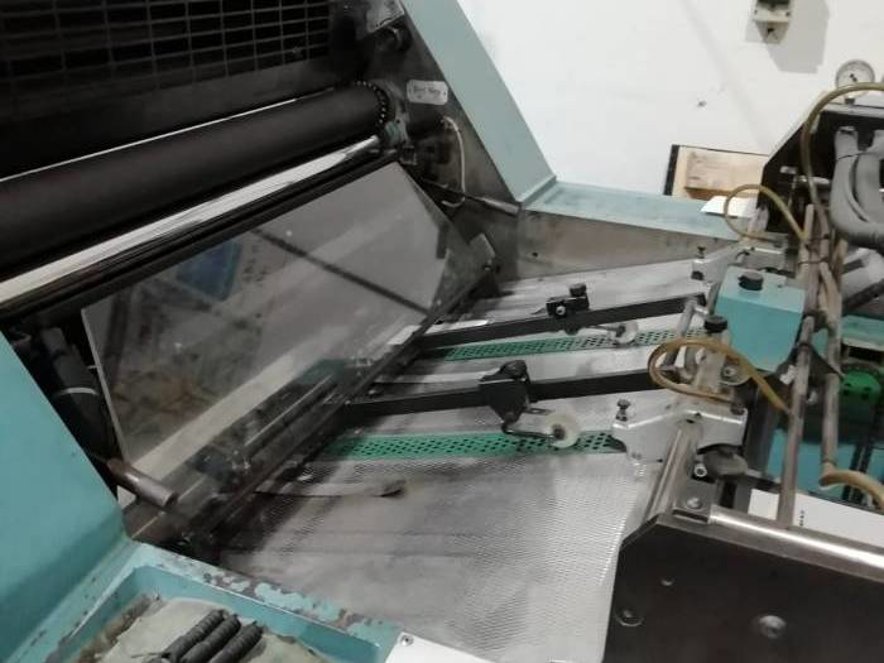

Paper Handling : The R 204 T0B features a high-capacity feeder with a maximum pile height of 31.5 in (800 mm) and a sheet thickness range of 0.06 mm to 1.5 mm. The press is equipped with a double-sheet detection system and an anti-static device to prevent sheet sticking. The delivery system includes a jogger and a pile Turner for efficient sheet stacking.

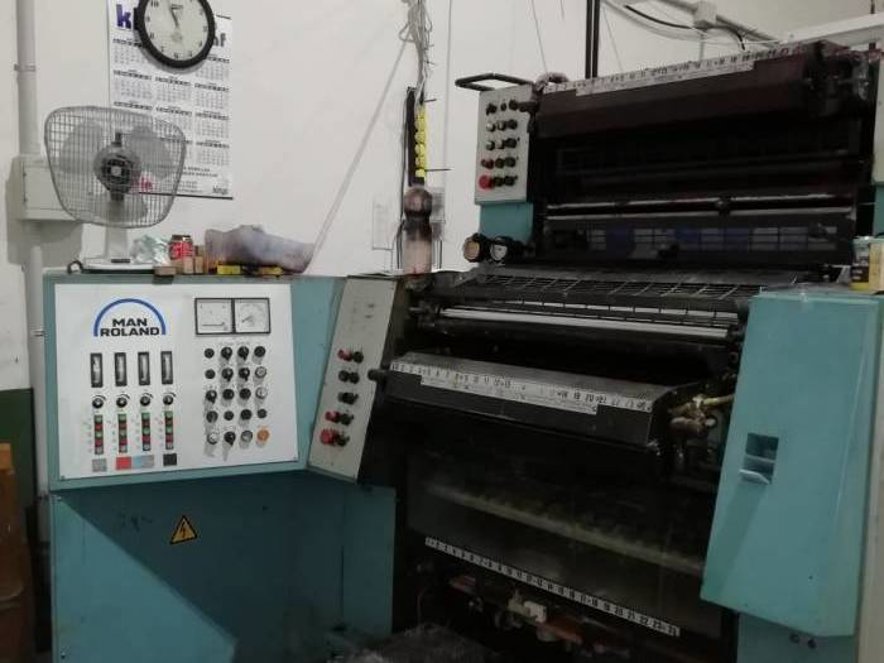

Printing Unit : The R 204 T0B has a maximum printing speed of 15,000 sheets per hour and a print resolution of 254 lpi (100 l/cm). The press uses a conventional offset printing process with a maximum printing area of 29.53 x 41.34 in (750 x 1050 mm). The printing unit features a seven-roller inking system with a separate dampening unit and a high-precision plate cylinder.

Ink System : The R 204 T0B uses a conventional offset ink system with a maximum ink capacity of 22.04 lbs (10 kg) per color. The press features an automatic ink supply system and an ink temperature control system to ensure consistent ink viscosity.

Plate Cylinder : The plate cylinder has a diameter of 4.33 ft (1.32 m) and a circumference of 13.78 ft (4.2 m). The cylinder features a high-precision bearing system and a temperature control system to ensure consistent plate registration and optimal printing results.
