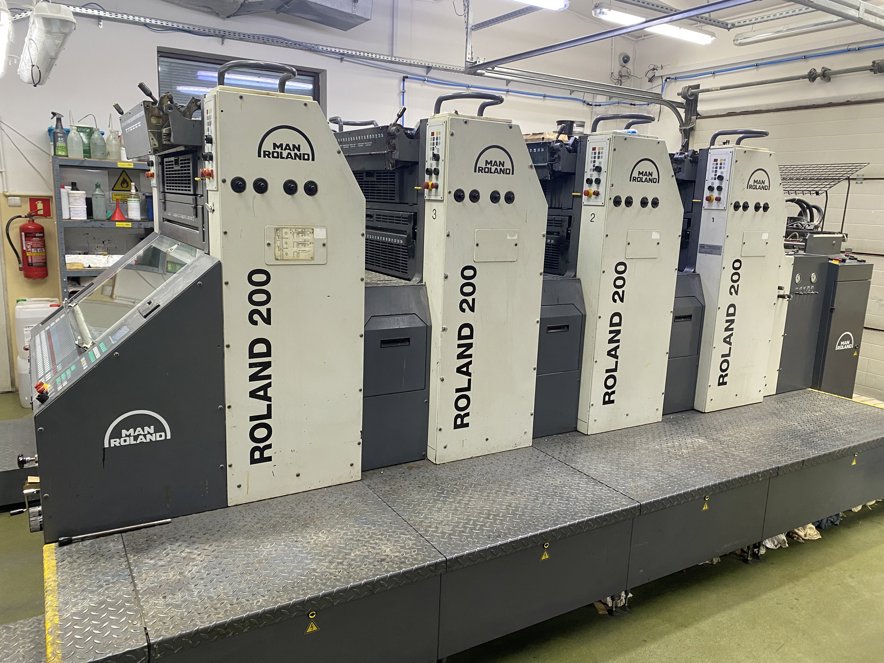

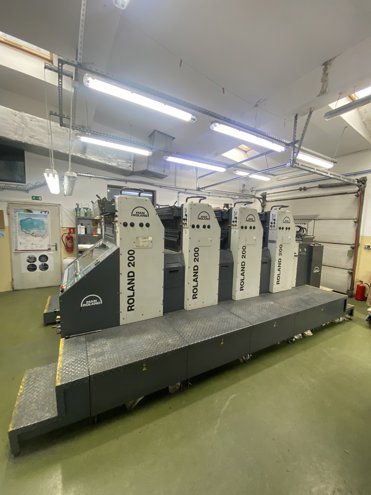

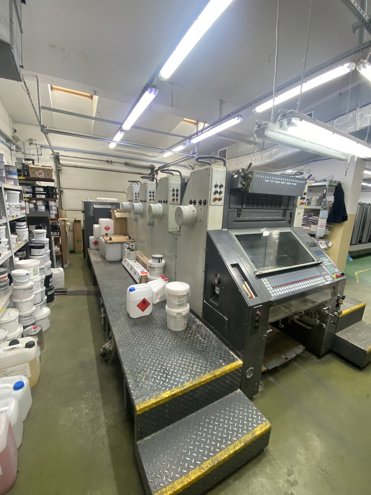

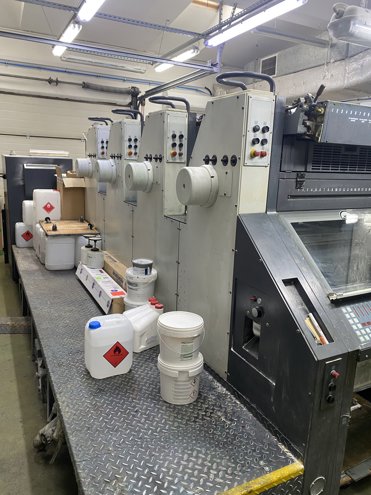

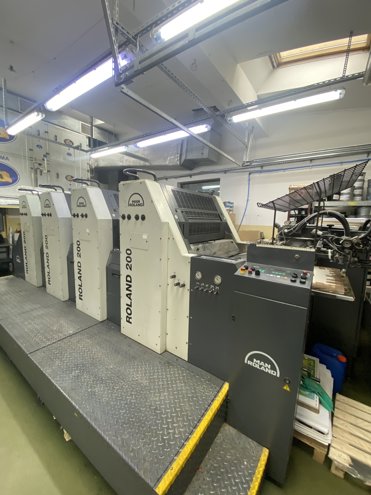

Manroland - R 204 E0B

Key Technical Aspects:

Dimensions and Specifications : The Manroland R 204 E0B has a length of 23.62 meters, a width of 2.45 meters, and a height of 2.35 meters. It weighs approximately 45 tons and has a maximum sheet size of 720 x 1,020 mm.

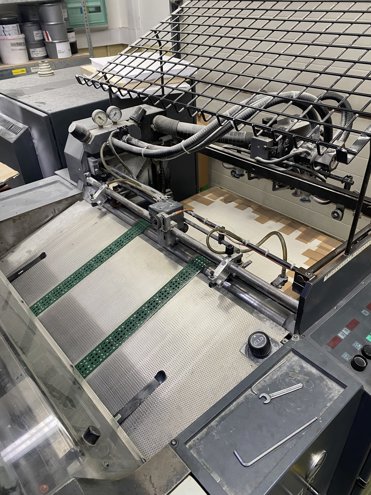

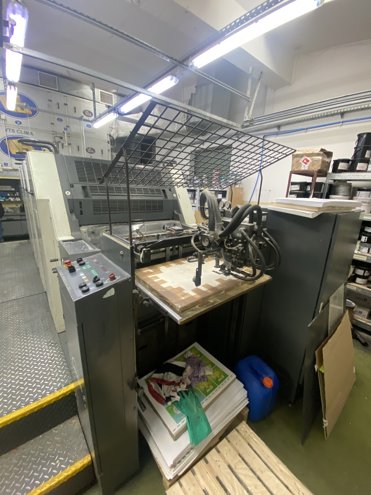

Paper Handling : The R 204 E0B features a high-capacity feeder with a maximum pile height of 1,500 mm and a sheet thickness range of 0.03 to 1.5 mm. The press is equipped with a double-sheet detection system and an anti-static device to ensure smooth paper flow. The delivery section has a maximum pile height of 1,200 mm and is equipped with a jogger and a pile Turner for easy sheet handling.

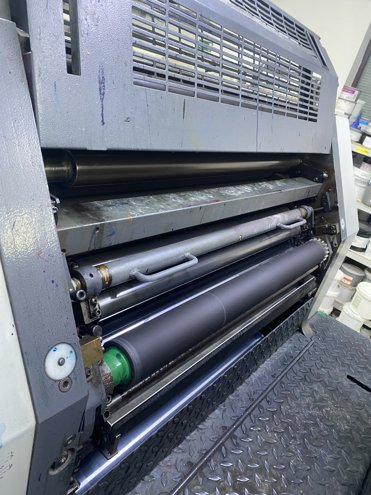

Printing Unit : The R 204 E0B has a maximum printing speed of 18,000 sheets per hour and a printing resolution of 300 lpi. The press uses a conventional offset printing process with a maximum printing area of 720 x 1,020 mm. The printing unit is equipped with a high-precision inking system and a advanced dampening system for consistent print quality.

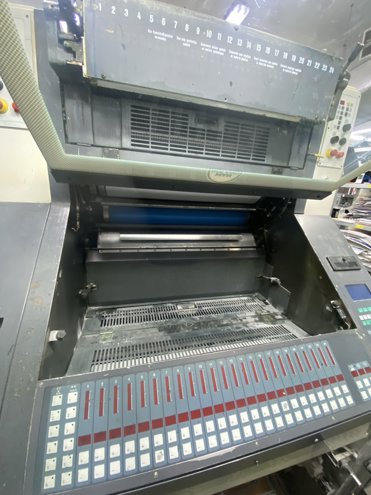

Ink System : The R 204 E0B uses a conventional offset ink system with a maximum ink capacity of 20 kg per unit. The press features an advanced ink pumping system with a high-precision ink metering system for consistent ink transfer.

Plate Cylinder : The plate cylinder has a diameter of 1,020 mm and a circumference of 3,200 mm. The cylinder is equipped with a high-precision plate clamping system and a advanced plate changing system for fast and easy plate changes.
