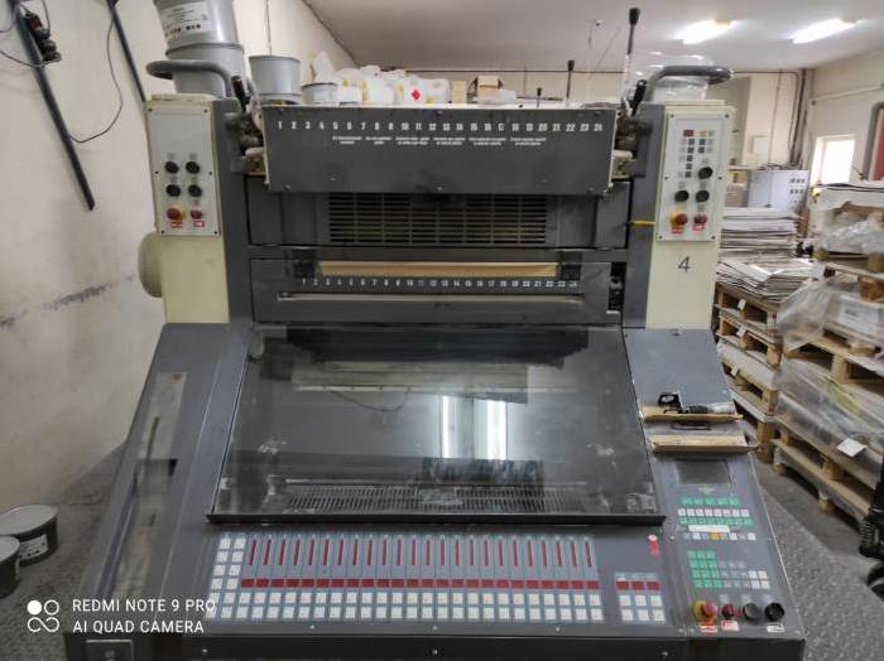

Manroland - R 204 E

Key Technical Aspects:

Dimensions and Specifications : The Manroland R 204 E has a length of 6,350 mm, a width of 2,350 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum sheet size of 720 x 1,020 mm. The press has a capacity of up to 15,000 sheets per hour.

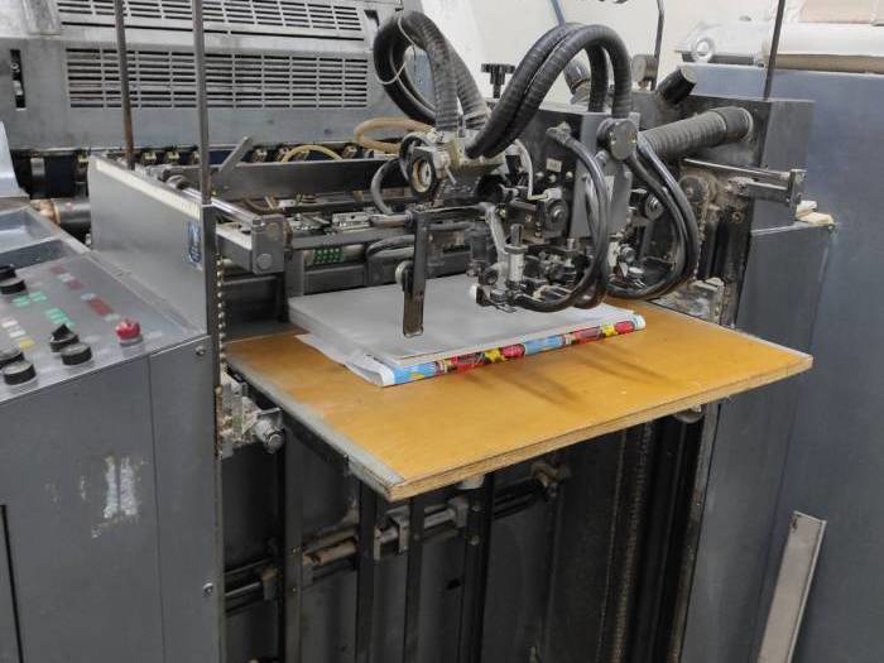

Paper Handling : The R 204 E features a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet thickness range of 0.03 to 1.2 mm. The press is equipped with a dual-circuit sheet transport system, ensuring smooth and precise sheet movement. The delivery section features a high-speed pile turner and a jogger for precise sheet alignment.

Printing Unit : The Manroland R 204 E is equipped with a high-performance printing unit featuring a maximum print speed of 15,000 sheets per hour. The press uses a conventional offset printing process with a maximum resolution of 300 lpi. The printing unit is designed for high-quality, high-speed printing, with advanced features such as automatic plate changing and impression cylinder washing.

Ink System : The R 204 E features a high-performance ink system with a maximum ink flow rate of 1,200 kg/h. The press uses a conventional oil-based ink system with a capacity of up to 200 kg per ink fountain. The ink system is equipped with advanced features such as automatic ink temperature control and ink viscosity monitoring.

Plate Cylinder : The plate cylinder of the Manroland R 204 E has a diameter of 1,020 mm and a circumference of 3,200 mm. The plate cylinder is designed for high-quality, high-speed printing, with advanced features such as automatic plate changing and plate washing. The plate cylinder is equipped with a precision-bearing system, ensuring smooth and precise plate movement.
