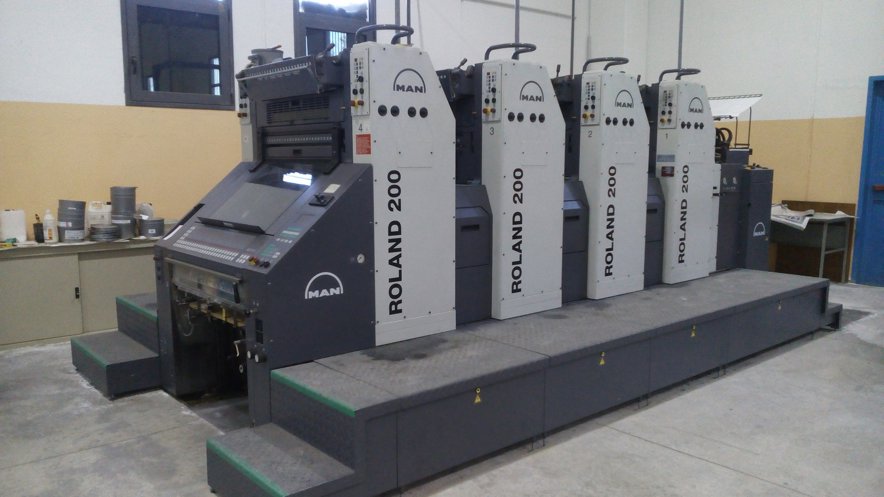

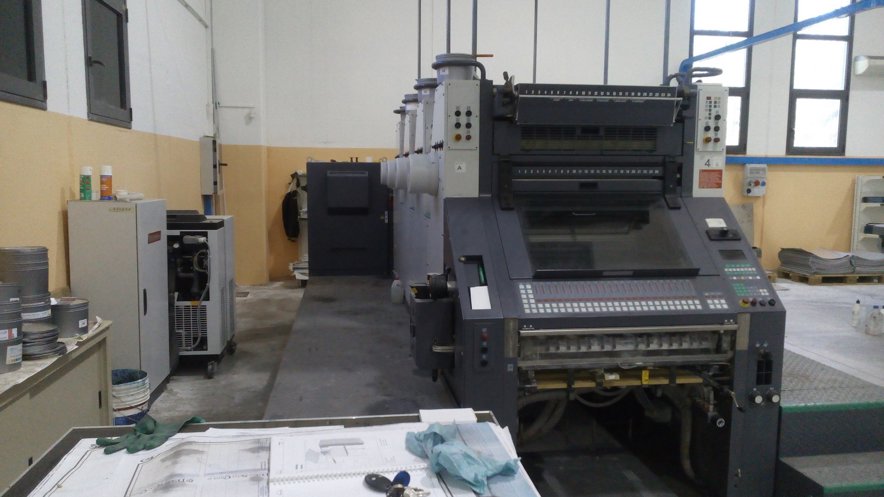

Manroland - R 204 E

Key Technical Aspects:

Dimensions and Specifications : The Manroland R 204 E has a maximum sheet size of 740 x 1040 mm (29.13 x 40.94 in) and a minimum sheet size of 350 x 500 mm (13.78 x 19.69 in). The machine's weight is approximately 12,000 kg (26,455 lbs), and its maximum printing speed is 15,000 sheets per hour.

Paper Handling : The R 204 E features a high-capacity feeder with a maximum pile height of 1,500 mm (59 in) and a sheet separator for precise sheet feeding. The machine is equipped with a delivery system that includes a jogger, a sheet aligner, and a pile Turner for efficient and organized sheet delivery.

Printing Unit : The printing unit of the R 204 E is equipped with a seven-color configuration, including a varnish unit, and features a maximum printing speed of 15,000 sheets per hour. The machine uses a high-precision plate cylinder with a diameter of 1,040 mm (40.94 in) and a gearless drive system for precise registration and smooth operation.

Ink System : The R 204 E features a high-performance ink system with a flow rate of 120 kg/h (264.55 lbs/h) and an ink temperature control system for optimal ink viscosity. The machine uses a dry offset ink system with a maximum ink film thickness of 1.5 μm.

Plate Cylinder : The plate cylinder of the R 204 E has a diameter of 1,040 mm (40.94 in) and a gearless drive system, ensuring precise registration and smooth operation. The plate cylinder is designed for high-speed printing and features a quick-change system for efficient plate changing.
