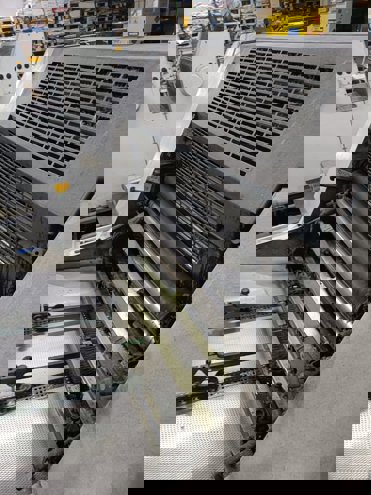

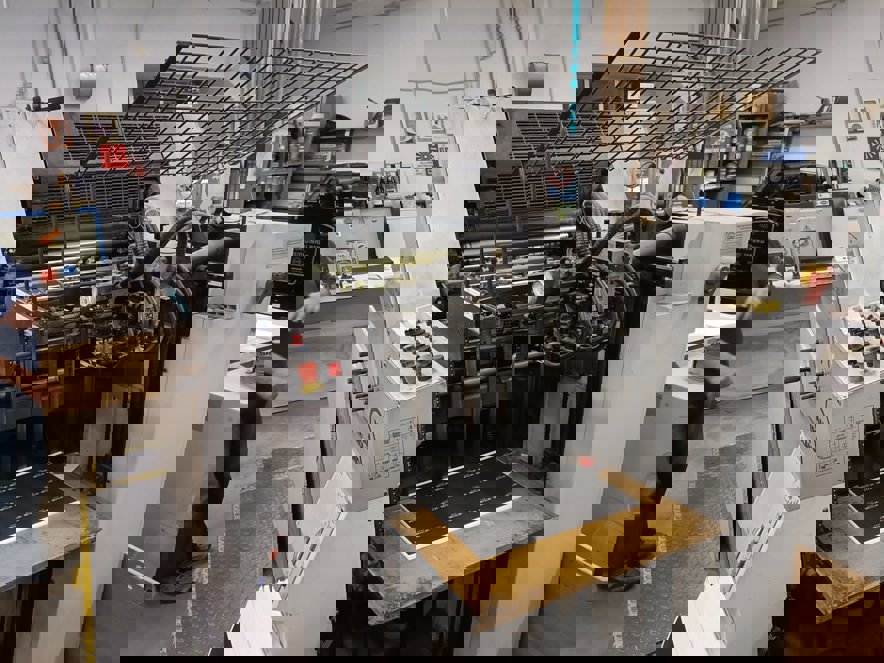

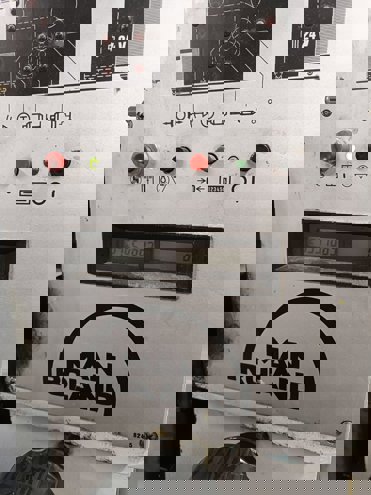

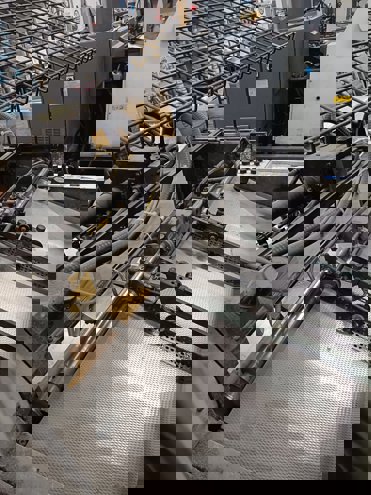

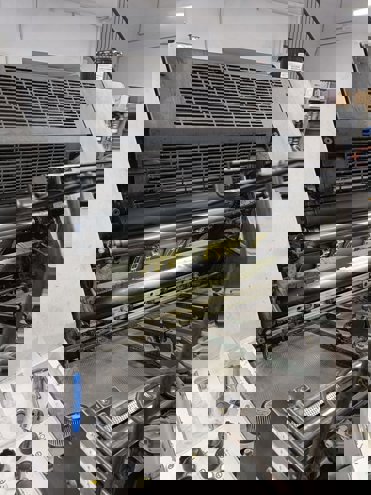

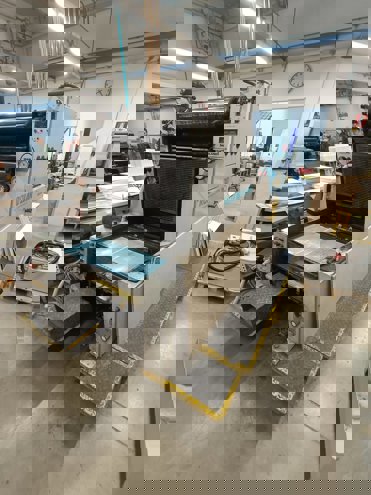

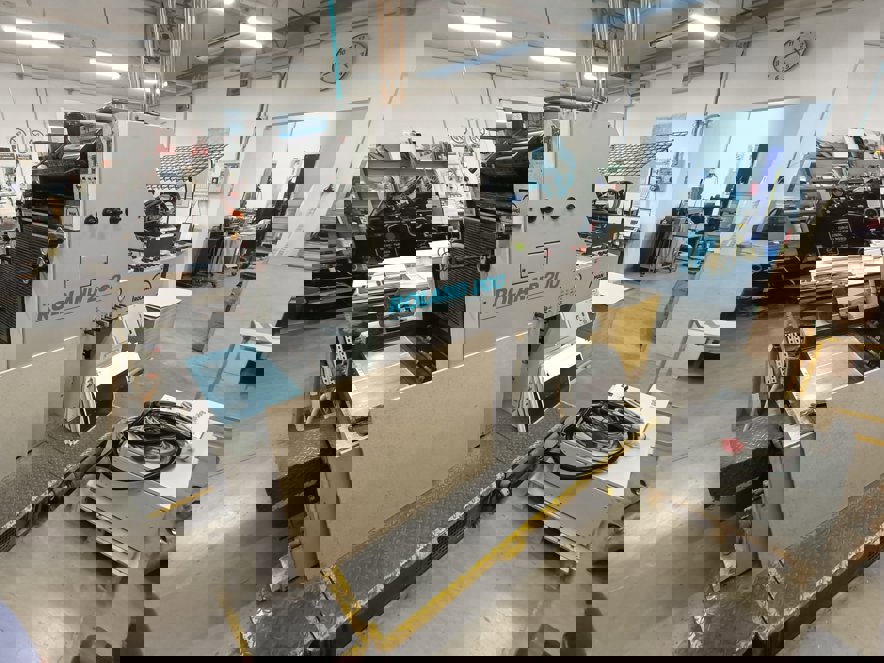

Manroland - R 201 T0B

Key Technical Aspects:

Dimensions and Specifications : The Manroland R 201 T0B has a length of 6,350 mm, a width of 1,800 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum sheet size of 720 x 1,020 mm. The press has a capacity of up to 18,000 sheets per hour.

Paper Handling : The R 201 T0B features a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet size range of 360 x 520 mm to 720 x 1,020 mm. The press is equipped with a high-speed delivery system with a maximum pile height of 1,500 mm and a sheet size range of 360 x 520 mm to 720 x 1,020 mm.

Printing Unit : The printing unit of the R 201 T0B features a maximum printing speed of 18,000 sheets per hour and a printing resolution of 300 lpi. The press uses a conventional offset printing process with a maximum printing area of 720 x 1,020 mm.

Ink System : The R 201 T0B uses a high-performance ink system with a maximum ink flow rate of 12 kg/h. The press is equipped with a ductless ink system and an ink temperature control system, ensuring consistent and high-quality printing results.

Plate Cylinder : The plate cylinder of the R 201 T0B has a diameter of 1,020 mm and a circumference of 3,200 mm. The plate cylinder is designed for high-speed printing and features a quick-change system for efficient plate changing.
