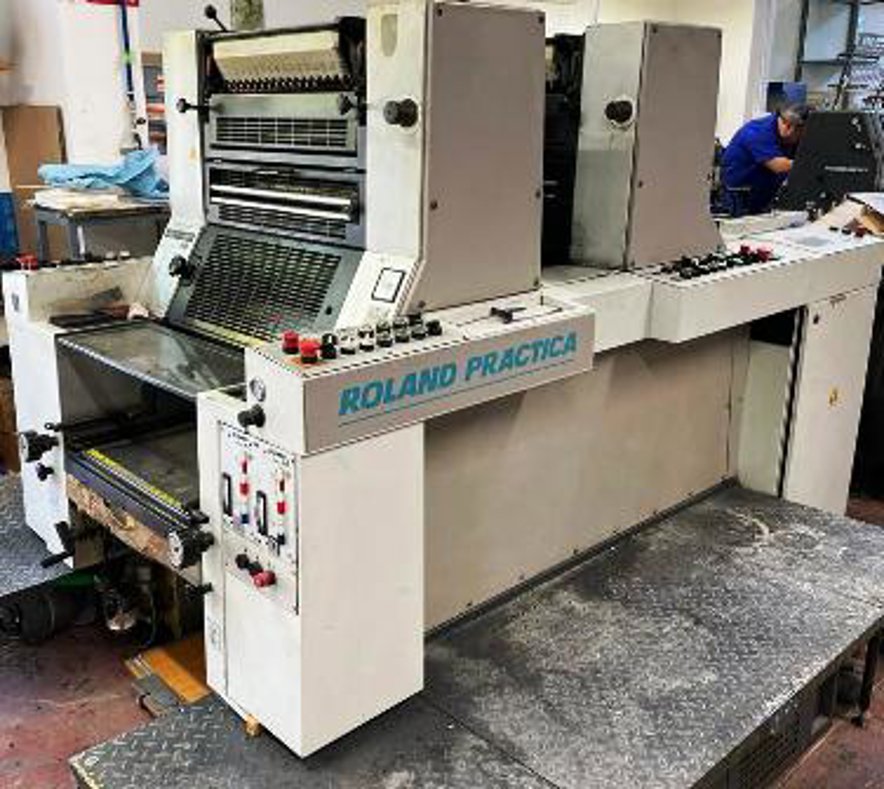

Manroland - Practica PRZ 00 2/0+NP

Key Technical Aspects:

Dimensions and Specifications : The Manroland Practica PRZ 00 2/0+NP has a length of 14,170 mm, a width of 2,400 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum printing speed of 15,000 sheets per hour.

Paper Handling : The press features a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet size range of 350 x 500 mm to 750 x 1,050 mm. The delivery system includes a high-speed pile turner and a jogger for precise sheet alignment.

Printing Unit : The PRZ 00 2/0+NP is equipped with a two-color printing unit, with a maximum printing format of 720 x 1,020 mm. It uses a high-precision, indirect offset printing process with a maximum resolution of 300 lpi. The printing unit is capable of producing up to 15,000 sheets per hour.

Ink System : The press features a high-performance, alcohol-free dampening system with a maximum ink capacity of 20 kg per color. The ink system is designed for fast ink changes and minimal waste, ensuring high-quality prints with minimal downtime.

Plate Cylinder : The plate cylinder has a diameter of 1,200 mm and is designed for high-speed printing. It features a quick-change system for fast plate changes, reducing downtime and increasing overall productivity.
