Manroland - 705 LV

Key Technical Aspects:

Dimensions and Specifications : The Manroland 705 LV has a maximum sheet size of 705 x 1020 mm (27.8 x 40.2 in) and a minimum sheet size of 350 x 500 mm (13.8 x 19.7 in). The machine weighs approximately 12,000 kg (26,455 lbs) and has a maximum printing speed of 18,000 sheets per hour.

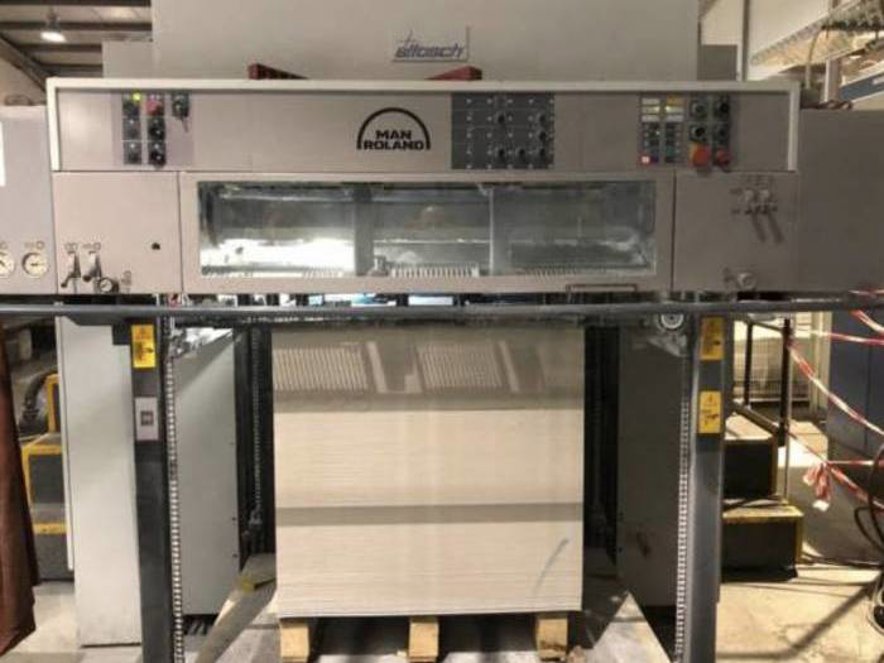

Paper Handling : The 705 LV features a high-capacity feeder with a maximum pile height of 1,500 mm (59 in) and a sheet transport system with adjustable sheet guides. The machine is equipped with a delivery system that includes a jogger, a sheet stacker, and a palletizer.

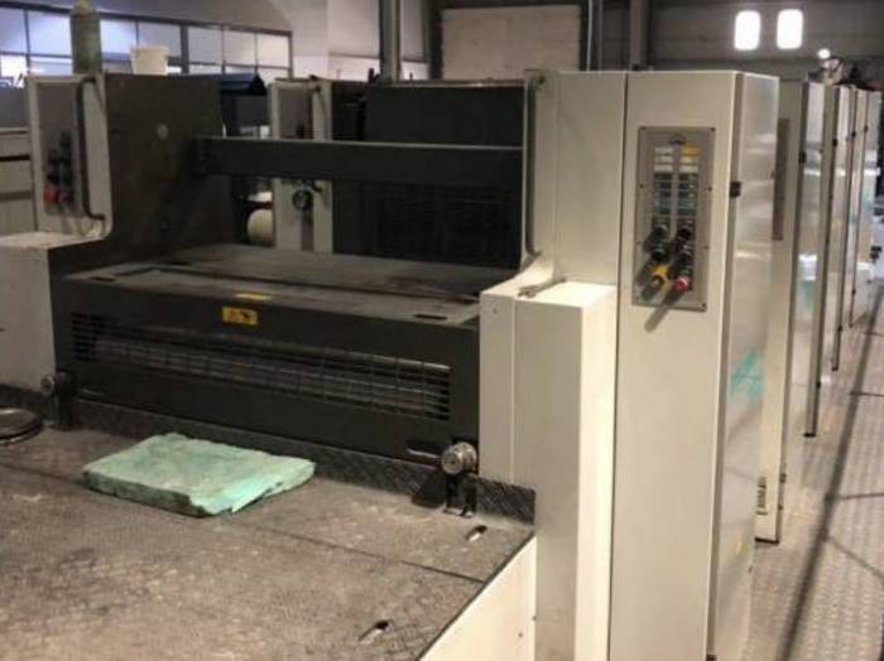

Printing Unit : The printing unit of the 705 LV is equipped with seven printing units, each with a maximum printing speed of 18,000 sheets per hour. The machine features a maximum printing resolution of 300 lpi (lines per inch) and uses a conventional offset printing process.

Ink System : The 705 LV uses a high-precision ink system with a maximum ink flow rate of 1,200 ml/min (40.6 oz/min). The machine is equipped with a ink fountain with a capacity of 20 kg (44 lbs) and features an automatic ink supply system.

Plate Cylinder : The plate cylinder of the 705 LV has a diameter of 1,070 mm (42.1 in) and a circumference of 3,350 mm (131.9 in). The machine features a plate changing system with a maximum plate size of 1,020 x 705 mm (40.2 x 27.8 in) and a minimum plate size of 500 x 350 mm (19.7 x 13.8 in).
