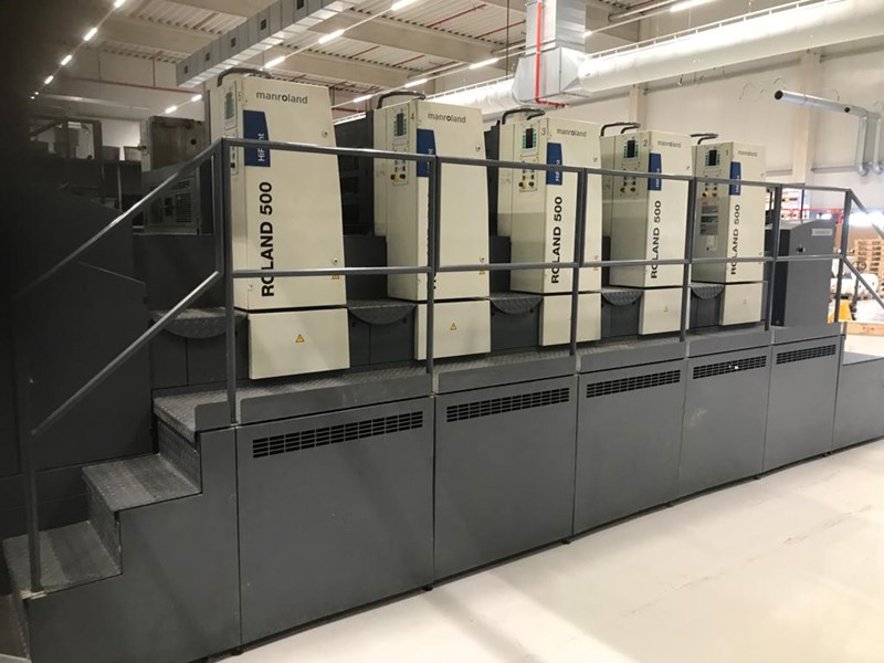

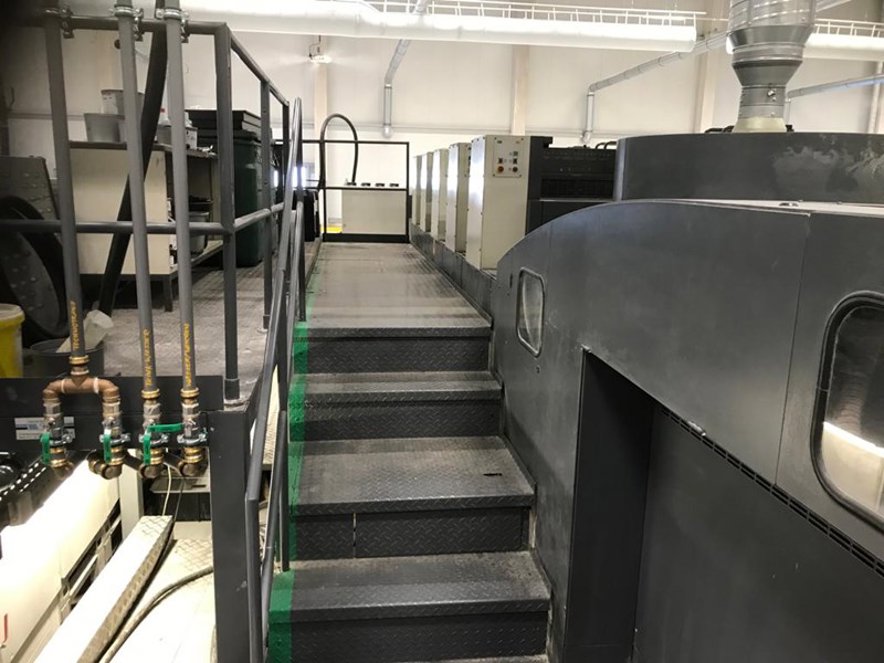

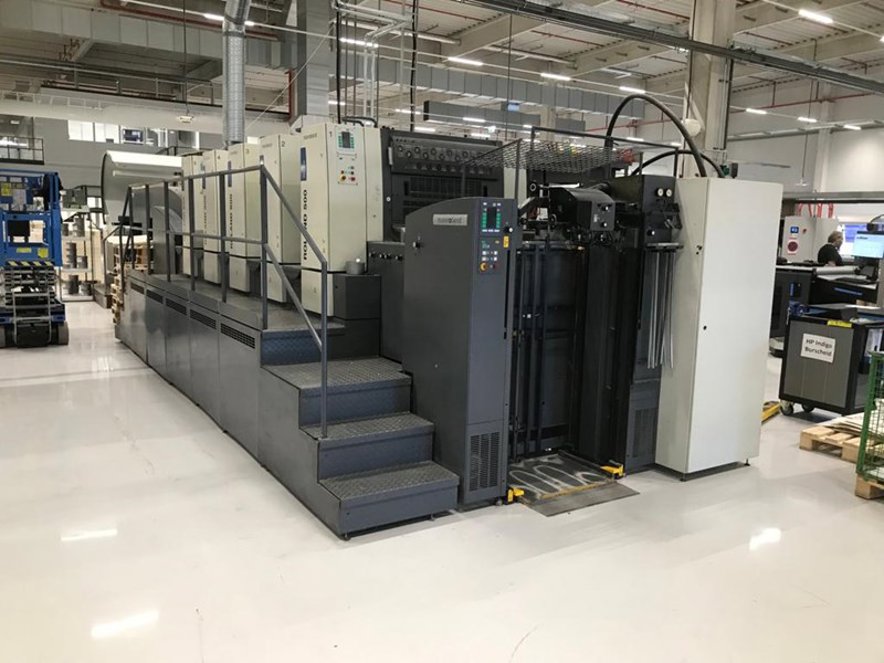

Manroland - 505 LV

Key Technical Aspects:

Dimensions and Specifications : The Manroland 505 LV has a maximum sheet size of 720 x 1,020 mm (28.3 x 40.2 in) and a minimum sheet size of 350 x 500 mm (13.8 x 19.7 in). The machine weighs approximately 12,000 kg (26,455 lbs) and has a maximum printing speed of 15,000 sheets per hour.

Paper Handling : The 505 LV features a high-capacity feeder with a maximum pile height of 1,200 mm (47.2 in) and a sheet separator for precise sheet feeding. The press is equipped with a delivery system that includes a jogger, a pile turner, and a sheet stacker, ensuring efficient and organized sheet handling.

Printing Unit : The printing unit of the 505 LV is equipped with a maximum of 10 printing units, each with a printing speed of up to 15,000 sheets per hour. The press features a maximum printing resolution of 300 lpi (lines per inch) and uses a conventional offset printing process with a three-cylinder arrangement.

Ink System : The 505 LV uses a high-precision ink system with a maximum ink flow rate of 1,200 ml/min (40.6 fl oz/min). The press features a ductless ink system with a single-ink train per unit, ensuring consistent and precise ink application.

Plate Cylinder : The plate cylinder of the 505 LV has a diameter of 1,070 mm (42.1 in) and a circumference of 3,350 mm (131.9 in). The plate cylinder is designed for high-quality plate reproduction and features a precision-ground surface for optimal printing results.
