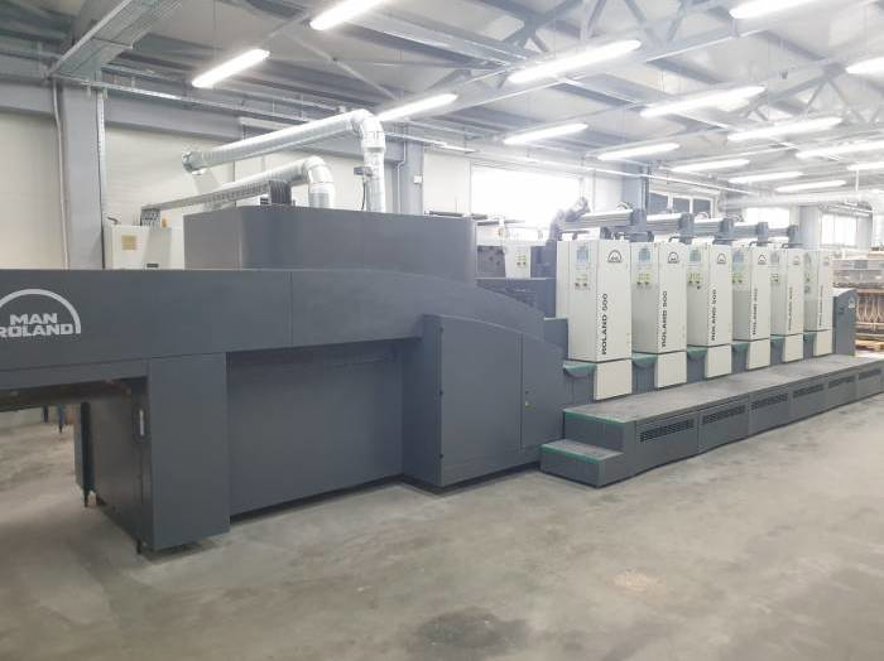

Manroland - 505 LV

Key Technical Aspects:

Dimensions and Specifications : The Manroland 505 LV has a length of 6,350 mm, a width of 2,350 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum sheet size capacity of 720 x 1,020 mm.

Paper Handling : The 505 LV features a high-capacity feeder with a maximum pile height of 1,200 mm, allowing for efficient handling of large print runs. The machine is equipped with a dual-circuit sheet transport system, ensuring precise registration and smooth sheet flow. The output section features a high-speed delivery system with a maximum output capacity of 15,000 sheets per hour.

Printing Unit : The Manroland 505 LV is equipped with a high-performance printing unit, capable of producing up to 15,000 sheets per hour at a maximum print speed of 18,000 sheets per hour. The machine features a maximum print resolution of 300 lpi and utilizes advanced Alcolor dampening and inking systems for exceptional print quality.

Ink System : The 505 LV uses a high-performance, alcohol-free dampening system, ensuring consistent and precise ink transfer. The machine features a maximum ink capacity of 20 kg per unit, with an optional ink pumping system available for enhanced ink supply.

Plate Cylinder : The plate cylinder on the Manroland 505 LV has a diameter of 1,020 mm and is designed for precise plate registration and consistent print quality. The machine features a semi-automatic plate changing system, allowing for quick and efficient plate changes.
