Manroland - 505 LV

Sheet Fed / Offset Manroland 505 LV
Sheet Fed / Offset Manroland 505 LV
Sheet Fed / Offset Manroland 505 LV
Sheet Fed / Offset Manroland 505 LV

Machine Specification

FeaturesValue
Number of colours5
Max sheet size20.87X29.13 inch | 53x74 cm

Machine Description

FOR SALE AS OWNER.
.
MANROLAND R505 OB L 5/0.
Year: 2004.
Impressions: 119 mio.
Colors: 5.
Max format: 530x740mm.
Min format: 260x400mm.
Max speed: 16000 sheets/h.
Max stock thickness: 1 mm.

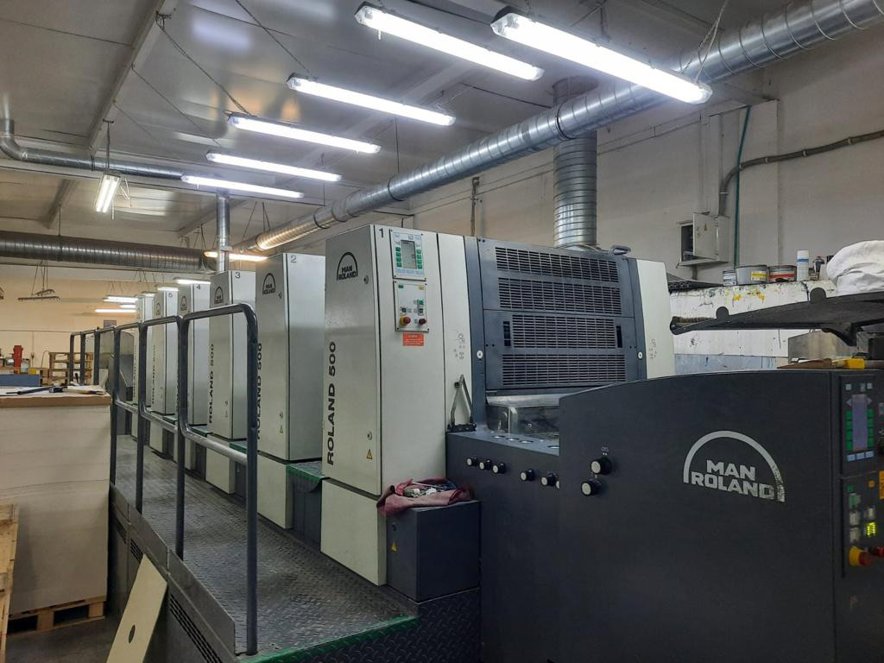

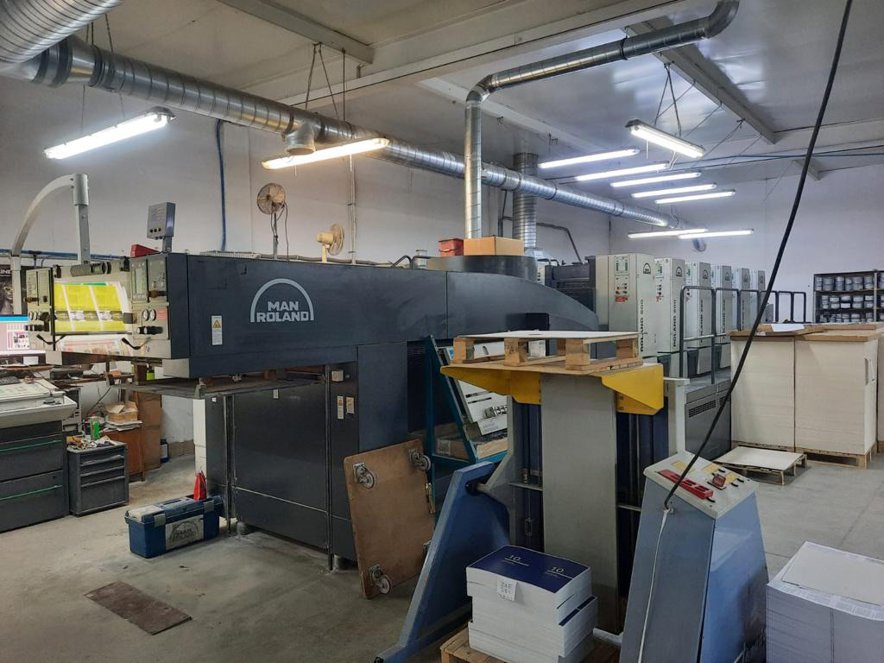

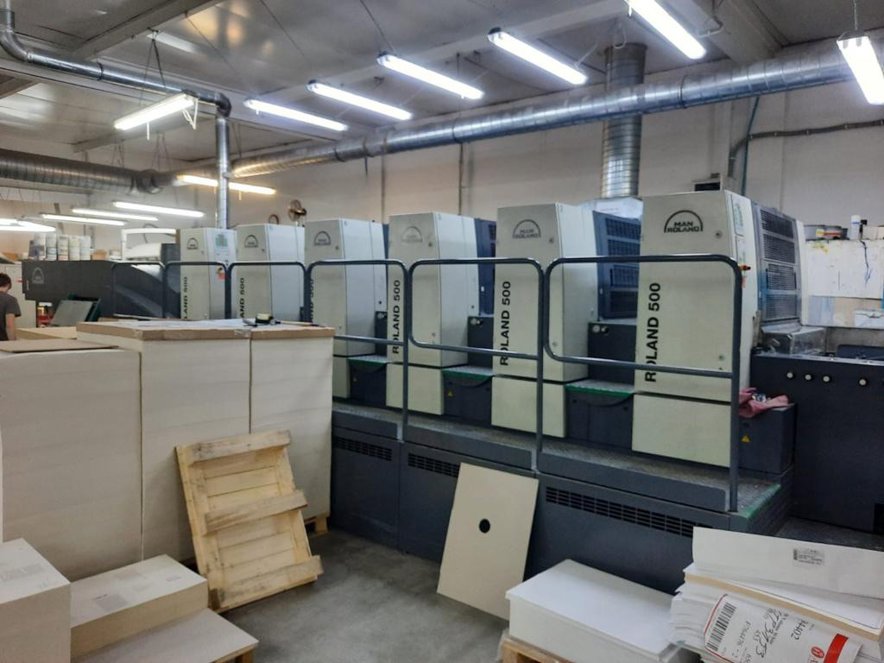

5 Printing Units + Coating Unit(disprersion coating) + Extended Delivery.

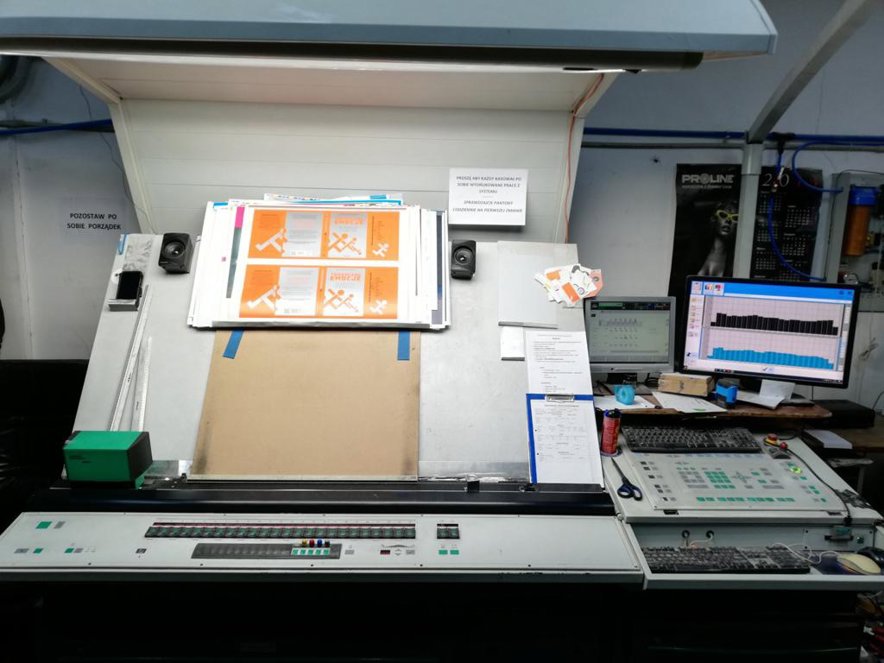

Ink Remote Control RCI.
Ink Control System ColorPilot.
ROLAND Deltamatic Dampenings.
Ink Unit Temperature Control.
Combi-Cooling Unit TECHNOTRANS (Water-Cooled).
Alcoprint 3000.
Semi-Automatic Plate Change PPL.
Automatic Washing Devices.
Dry Sprayer GRAFIX.
IR / TL Dryer GRAFIX.
AIRGLIDE Delivery.
Central Air Supply Cabinet.
Water Cooled Machine.
.
❓More information: price, transport, current location - available on priv

ModelManroland-505 LV
ManufacturerManroland
Year2004
Machine AvailabilityImmediately
Machine ConditionIn Production
PriceOn Request
LocationPoland

Special Features

  • Autoplate
  • Autosize
  • Coating
  • Computer Controls/ Digital Controls
  • Dryer
  • IR Dryer
  • Touch-Screen Control
  • Water Dampening

About Manroland - 505 LV

The Manroland 505 LV is a high-performance sheet-fed offset printing press designed for commercial and packaging printing applications. This machine is part of the 500 series, known for its versatility, reliability, and high-quality output. The 505 LV is ideal for printing a wide range of materials, including paper, board, and plastics, and is suitable for various industries, such as packaging, labels, and commercial printing. Its key features include high-speed printing, precise registration, and advanced automation, making it an excellent choice for printers seeking to increase productivity and reduce costs.

Key Technical Aspects:

Dimensions and Specifications : The Manroland 505 LV has a length of 6,350 mm, a width of 1,800 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum sheet size of 720 x 1,020 mm. The machine's capacity is up to 15,000 sheets per hour.

Paper Handling : The 505 LV features a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet thickness range of 0.04 to 1.2 mm. The machine is equipped with a double-sheet detection system and an anti-static device to ensure smooth paper flow. The delivery system has a maximum pile height of 1,500 mm and is equipped with a jogger and a pile-turner.

Printing Unit : The printing unit of the 505 LV is equipped with six printing units, each with a maximum printing speed of 15,000 sheets per hour. The machine features a maximum printing area of 720 x 1,020 mm and a printing resolution of 300 lpi. The printing unit uses a combination of oil-based and UV inks.

Ink System : The 505 LV uses a high-precision ink system with a maximum ink flow rate of 120 kg/h. The machine is equipped with a ductless ink system, which reduces ink consumption and waste. The ink system features an automatic ink supply and a wash-up system for easy maintenance.

Plate Cylinder : The plate cylinder of the 505 LV has a diameter of 1,020 mm and a circumference of 3,200 mm. The machine features a plate changing system with a maximum plate size of 720 x 1,020 mm and a minimum plate size of 400 x 400 mm. The plate cylinder is equipped with a temperature control system to ensure consistent printing results.
