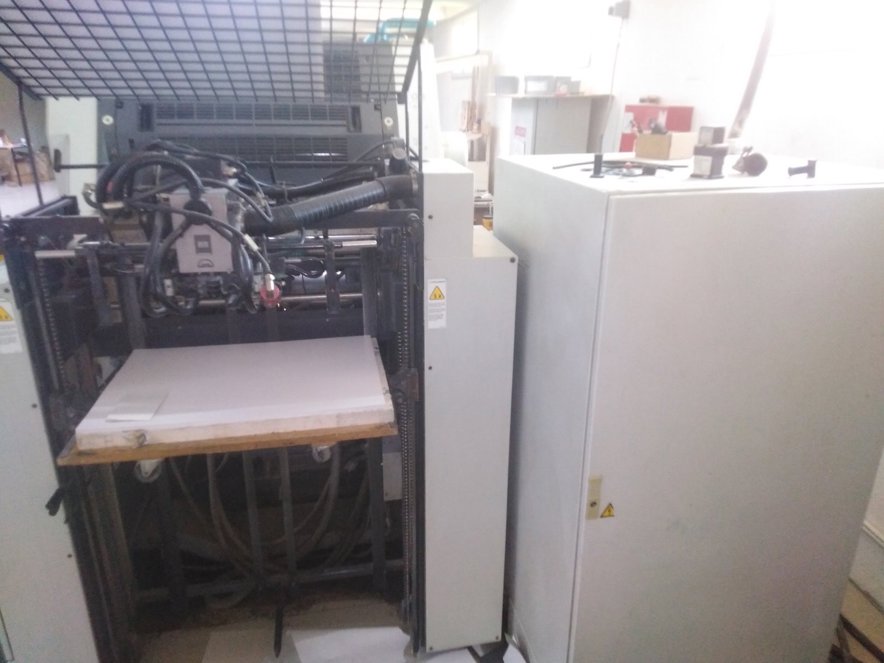

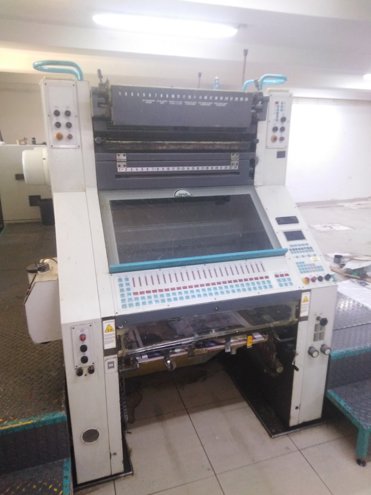

Manroland - 204 ETOB

Key Technical Aspects:

Dimensions and Specifications : The Manroland 204 ETOB has a length of 23.62 ft (7.2 m), a width of 6.56 ft (2 m), and a height of 7.38 ft (2.25 m). It weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size capacity of 20.47 x 29.53 in (520 x 750 mm).

Paper Handling : The 204 ETOB features a high-capacity feeder with a maximum pile height of 31.5 in (800 mm) and a sheet thickness range of 0.06-0.6 mm. It is equipped with a double-sheet detection system and an anti-static device to ensure smooth paper flow. The machine has a maximum output capacity of 15,000 sheets per hour.

Printing Unit : The printing unit of the 204 ETOB is equipped with a maximum printing speed of 15,000 sheets per hour and a resolution of 300 lpi. It utilizes a conventional offset printing technology with a maximum printing area of 19.69 x 27.56 in (500 x 700 mm).

Ink System : The 204 ETOB features a high-performance ink system with a maximum ink flow rate of 120 kg/h. It uses a conventional offset ink system with a drying capacity of 120,000 BTU/h. The machine is equipped with an automatic ink supply system and an ink temperature control system.

Plate Cylinder : The plate cylinder of the 204 ETOB has a diameter of 4.33 ft (1.32 m) and a circumference of 13.78 ft (4.2 m). It features a maximum plate thickness of 0.12 in (3 mm) and is equipped with a plate changing system that allows for fast and efficient plate changes.
