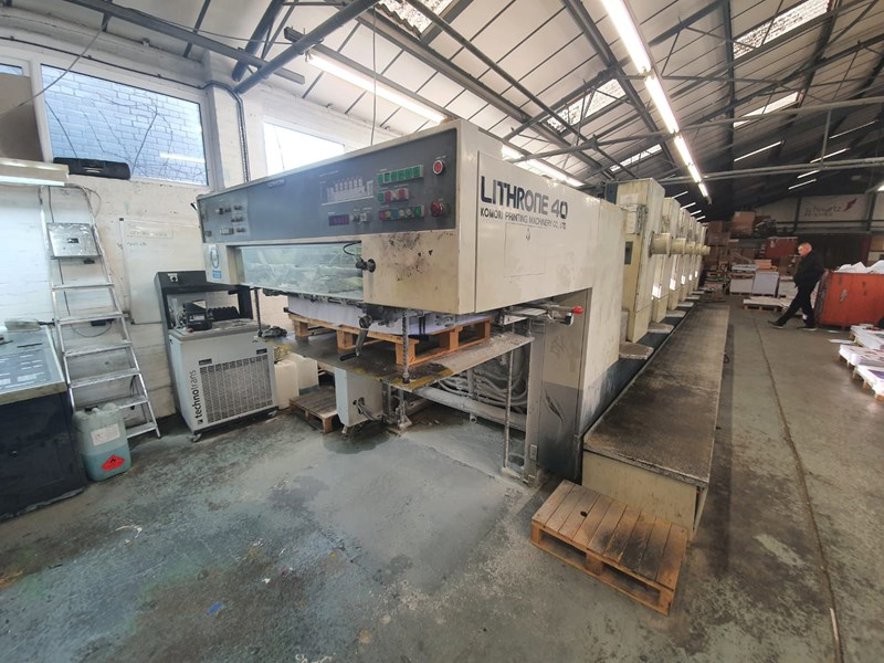

Komori - Lithrone L-640

Key Technical Aspects:

Dimensions and Specifications : The Komori Lithrone L-640 has a length of 7,320 mm, a width of 2,440 mm, and a height of 2,440 mm. It weighs approximately 12,000 kg and has a maximum printing speed of 18,000 sheets per hour. The machine has a maximum sheet size of 640 x 920 mm and a minimum sheet size of 360 x 520 mm.

Paper Handling : The L-640 features a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet capacity of 5,000 sheets. The machine is equipped with a double-sheet detection system and an anti-marking system to prevent sheet-to-sheet marking. The delivery system has a maximum pile height of 1,200 mm and a sheet capacity of 5,000 sheets.

Printing Unit : The Komori Lithrone L-640 features a six-color printing unit with a maximum printing speed of 18,000 sheets per hour. The machine uses a high-precision printing cylinder with a diameter of 640 mm and a length of 920 mm. The printing unit is equipped with Komori's proprietary KHS-AI (Advanced Ink Supply System) and A-APC (Advanced Automatic Plate Changer) systems.

Ink System : The L-640 uses a high-precision ink supply system with a maximum ink flow rate of 12 kg/h. The machine is equipped with a 20-liter ink tank and an ink recycling system to minimize ink waste.

Plate Cylinder : The plate cylinder has a diameter of 640 mm and a length of 920 mm. It features Komori's proprietary PDC-SX (Plate Cylinder with Spiral X-axis) technology, which provides high-precision plate registration and improved printing quality.
