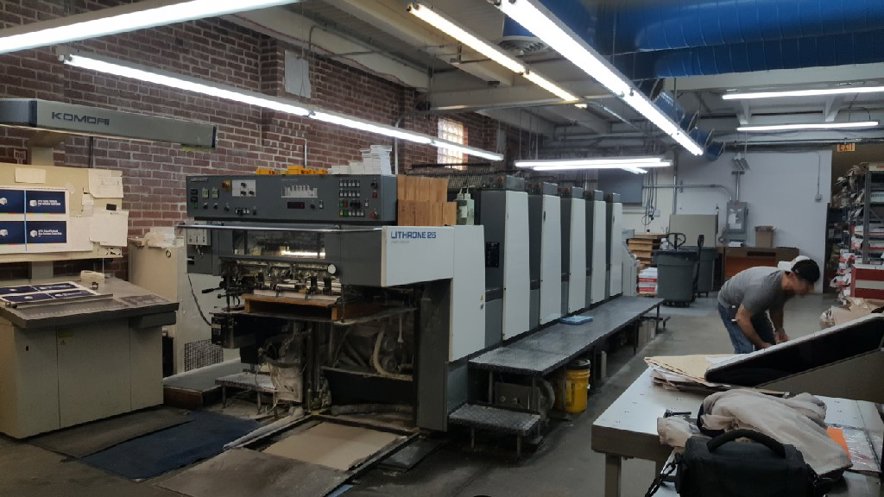

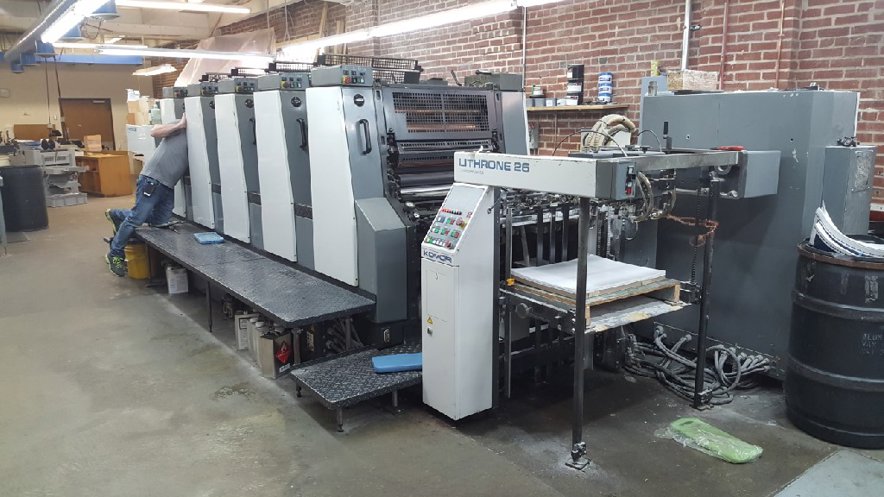

Komori - Lithrone L-526

Key Technical Aspects:

Dimensions and Specifications :The Komori Lithrone L-526 has a maximum printing area of 520 x 720 mm and a minimum printing area of 250 x 360 mm. The machine's dimensions are 6,350 mm in length, 1,800 mm in width, and 1,800 mm in height, with a weight of approximately 12,000 kg. The press has a maximum printing speed of 15,000 sheets per hour.

Paper Handling :The Komori Lithrone L-526 features a highly advanced paper handling system, which includes a sheet feeder with a capacity of up to 4,000 sheets, and a delivery system with a pile height capacity of up to 1,500 mm. The machine is capable of handling paper weights ranging from 0.04 to 0.6 mm and paper sizes from A3 to A1.

Printing Unit :The printing unit of the Komori Lithrone L-526 features a maximum printing speed of 15,000 sheets per hour, with a resolution of 400 lpi. The machine uses a conventional offset printing process, with a maximum printing area of 520 x 720 mm. The printing unit is equipped with a highly advanced ink and water control system, which enables precise control over ink and water levels.

Ink System :The Komori Lithrone L-526 uses a high-quality, oil-based ink system, with a maximum ink capacity of 20 kg per color. The machine features a highly advanced ink control system, which enables precise control over ink levels and reduces waste. The ink system is also equipped with an automatic ink supply and cleaning system, which reduces downtime and improves productivity.

Plate Cylinder :The plate cylinder of the Komori Lithrone L-526 is designed to provide high-quality, precise printing. The cylinder has a diameter of 1,060 mm and a length of 720 mm, and is equipped with a highly advanced plate clamping system, which enables quick and easy plate changes. The plate cylinder is also equipped with a automatic plate cleaning system, which reduces downtime and improves productivity.
