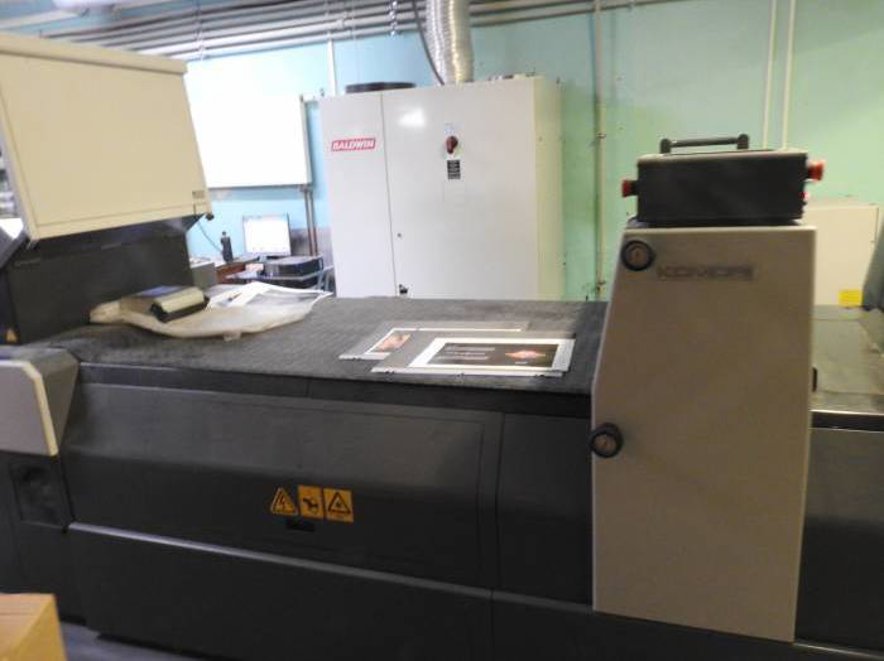

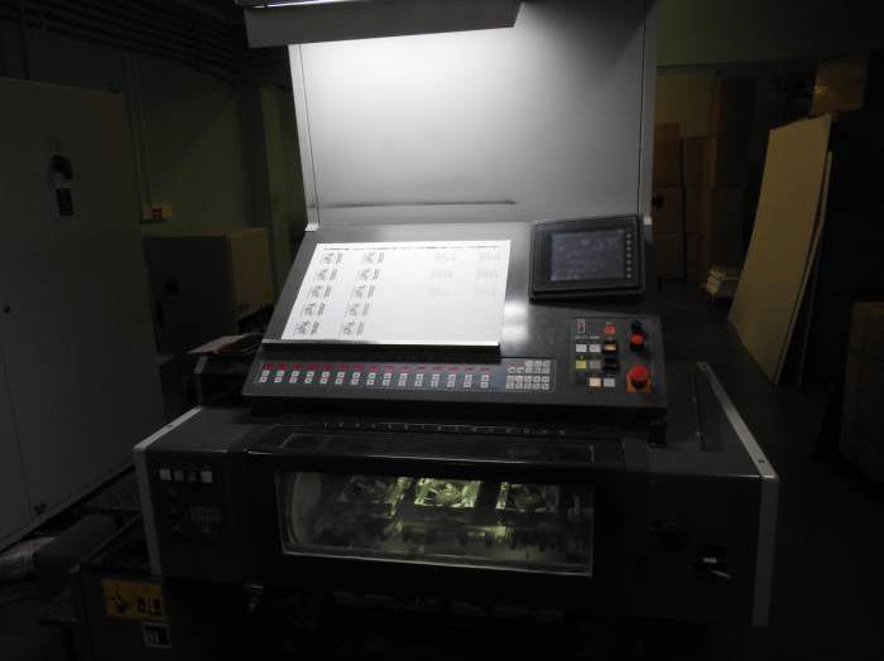

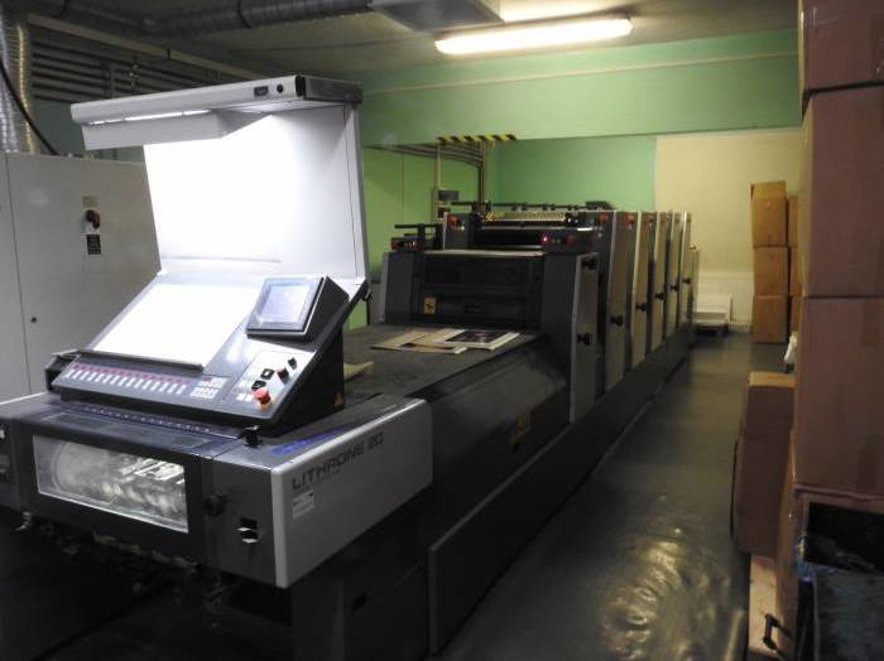

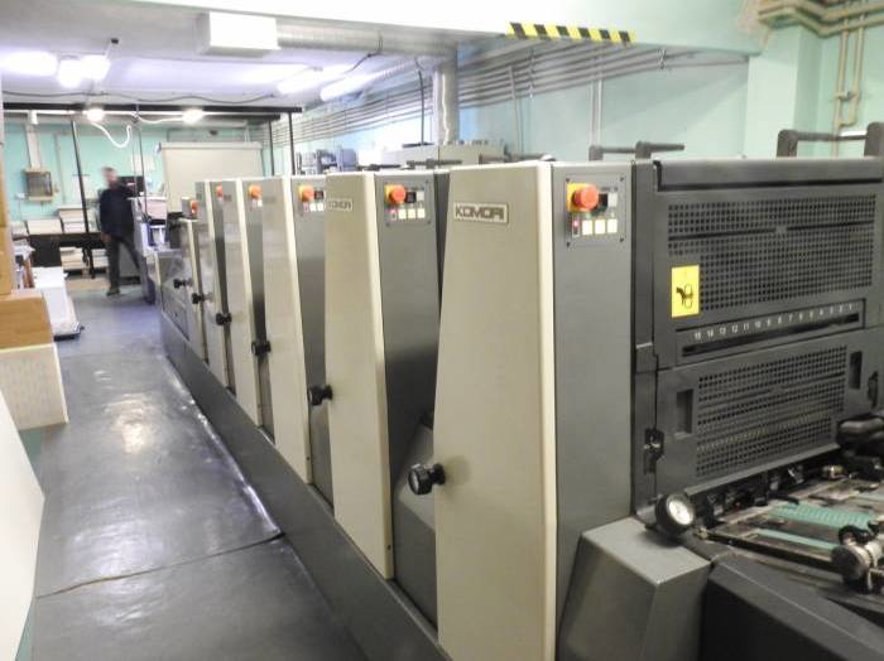

Komori - Lithrone L-520

Key Technical Aspects:

Dimensions and Specifications : The Komori Lithrone L-520 has a length of 7,320 mm, a width of 1,830 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum printing speed of 18,000 sheets per hour. The machine has a maximum sheet size of 520 x 740 mm and a minimum sheet size of 350 x 500 mm.

Paper Handling : The L-520 features a high-capacity paper handling system, including a 3,000-sheet feeder and a 2,000-sheet delivery stacker. The machine is equipped with advanced paper handling features, such as automatic sheet alignment, sheet detection, and anti-static devices.

Printing Unit : The printing unit of the L-520 is equipped with advanced Komori's KHS-AI (Advanced Intertech) technology, which provides high-quality printing at speeds of up to 18,000 sheets per hour. The machine has a maximum printing resolution of 300 lpi and uses a combination of oil-based and UV inks.

Ink System : The L-520 features a high-performance ink system, which includes a 20-liter ink tank capacity and an advanced ink circulation system. The machine uses oil-based and UV inks, which provide excellent print quality and durability.

Plate Cylinder : The plate cylinder of the L-520 is designed for high-speed printing and features a diameter of 520 mm and a length of 740 mm. The plate cylinder is equipped with advanced plate clamping and registration systems, ensuring precise plate registration and high-quality printing.
