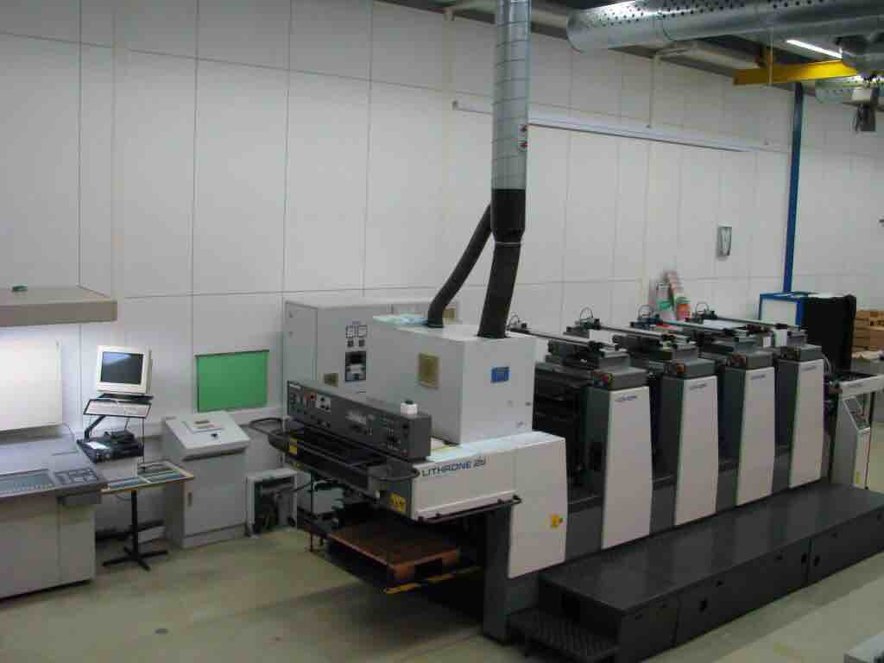

Komori - Lithrone L-428

Key Technical Aspects:

Dimensions and Specifications :The Komori Lithrone L-428 has a maximum sheet size of 28.7 x 40.2 inches and a minimum sheet size of 8.3 x 11.8 inches. The machine weighs approximately 55,000 pounds and has a printing speed of up to 15,000 sheets per hour. The press has a maximum printing area of 29.5 x 41.7 inches and a plate size of 30.7 x 42.5 inches.

Paper Handling :The Komori Lithrone L-428 features a highly advanced paper handling system, including a sheet feeder with a capacity of up to 5,000 sheets and a delivery system with a pile height capacity of up to 59 inches. The press is also equipped with an automatic sheet size changeover system, which allows for quick and easy switching between different sheet sizes.

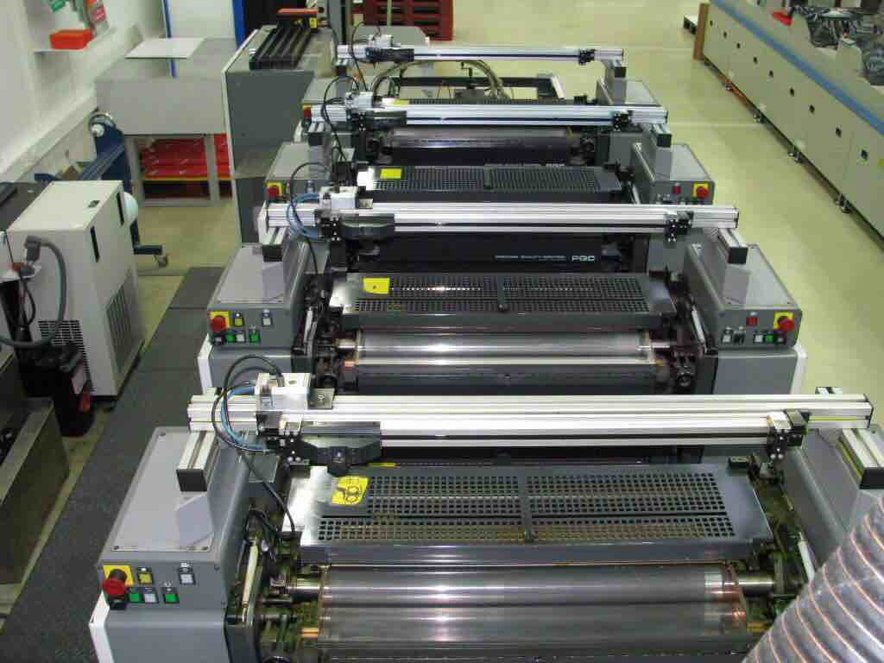

Printing Unit :The printing unit of the Komori Lithrone L-428 features a maximum printing speed of 15,000 sheets per hour and a resolution of 240 lpi. The press uses a conventional offset printing process with a waterless or wet offset system, depending on the specific configuration. The printing unit is also equipped with a number of advanced features, including automatic plate changing, automatic ink control, and a sophisticated color management system.

Ink System :The Komori Lithrone L-428 uses a high-quality, oil-based ink system with a maximum ink fountain volume of 26.4 gallons. The press is equipped with an automatic ink control system, which ensures precise control over ink flow and density, resulting in consistent and high-quality prints. The ink system also features a number of advanced features, including ink temperature control and an ink agitator system.

Plate Cylinder :The plate cylinder of the Komori Lithrone L-428 is designed to provide high-quality, consistent prints with precise registration. The plate cylinder has a diameter of 4.33 inches and a plate thickness of 0.012 inches. The press features an automatic plate changing system, which allows for quick and easy plate changes, reducing downtime and increasing productivity. The plate cylinder is also equipped with a number of advanced features, including automatic plate cleaning and a plate protection system.
