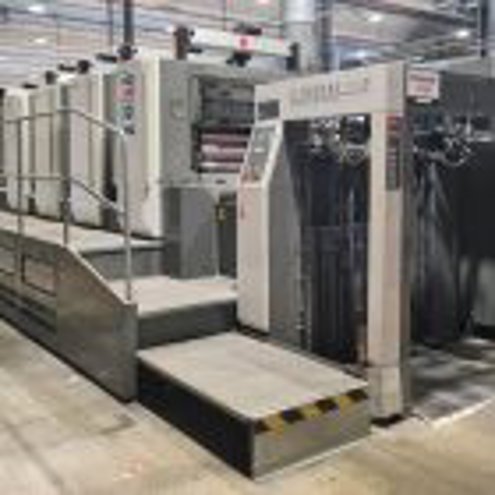

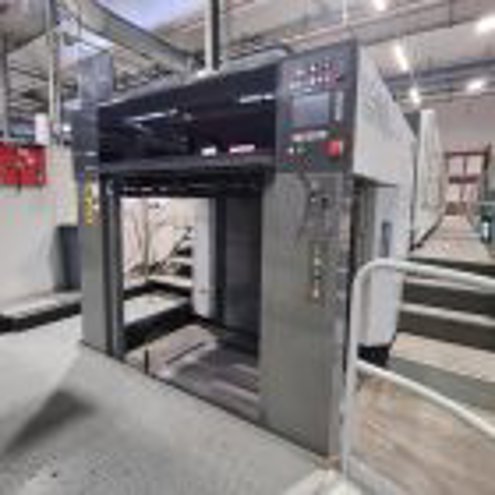

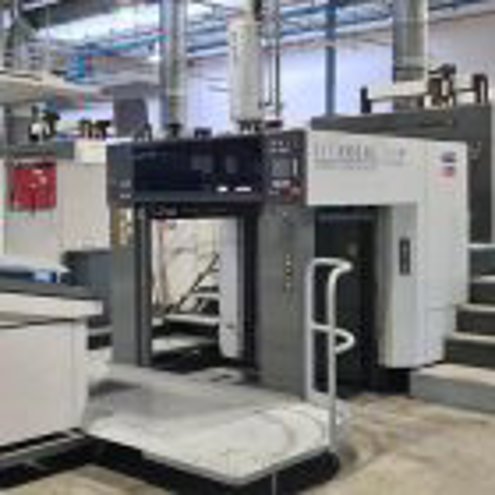

Komori - GL 840PH H-UV LED

Machine Description

Year: 2016.
200 mill imp.
Maximum Printing Speed: 15,000 sph.
Maximum Sheet Size: 720 × 1030 mm.
Minimum Sheet Size: 360 × 520 mm.
Sheet Thickness Range: 0.06 – 0.6 mm.
Maximum Printing Area: 710 × 1020 mm (face side) / 700 × 1020 mm (back side).
Plate Size: 800 × 1030 mm.
Feeder Pile Height: 1450 mm (without 300 mm plinth).
Delivery Pile Height: 1380 mm (without 300 mm plinth).
Control & Automation.
PQC-S off-press controls with USB/CF media input and overhead lamp.
High-speed start-up & smart sequence.
Self-Diagnosis II.
KHS-AI with pre-inking/removing, self-learning, production management, and register preset.
Smart Feedback system.
Front/back ink keys simultaneous preset (all units).
Fully automatic plate changing (benderless).
Feeder side blower preset & anti-static system.
Automatic blanket cleaner and impression cylinder cleaner (H-UV/pre-pack).
PDC-SX spectrophotometer with auto register control.
KID (Komori Info-Service Display).
K-PressNavi integration.
Printing & Feeding.
Transfer cylinder cocking and gripper pad height adjustment.
Anti-rust treatment for plate, blanket, and impression cylinders.
Impression cylinders with stainless steel jacket after perfecting unit.
Ink roller temperature control (oscillation) and automatic ink roller cleaning (twin nozzles).
Komorimatic dampening system with advanced controls.
Technotrans Beta.c 280G with alcohol and pH control.
Baldwin H-UV LED curing: 1× H-UV LED at end of press, 1× H-UV LED before perfecting unit.
Drying & Delivery.
H-UV drying preparation and equipment.
Automatic lubrication on delivery chain guide.
Delivery anti-deviation device and anti-static bar.
Intercom system.
The press is offered in excellent working condition,.
equipped with H-UV LED technology, and ready for inspection and immediate availability..
Price: On request.
