Machine Specification
| Features | Value |
|---|---|
| Number of colours | 8 |
| Max sheet size | 28.35X40.94 inch | 72x104 cm |
Machine Description
Counter 95 mil..
.
Max. Sheet format - 720x1030mm.
.
Max. Print area:.
.
- one-sided printing - 710x1020mm.
.
- two-sided printing - 700x1020mm.
.
Printing substrate thickness range - 0.06 - 0.6 mm.
.
Max Print Speed:.
.
- one-sided printing - 15,000 sheets / hour.
.
- two-sided printing - 15,000 sheets / hour.
.
The minimum printing speed - 3,000 sheets / hour.
.
Stack Height:.
.
Feeder -1450 mm.
.
Delivery - 1380 mm.
.
PQC-S quality remote control system.
.
-Remote control of inking.
.
-Remote humidification control.
.
-Remote register control.
.
Longitudinal ( /- 2mm).
.
Transverse ( /- 3mm).
.
Diagonal transfer cylinder ( /- 0.2mm).
.
-Remote control of mowing cylinder A -in input ( /- 0.3mm).
.
- Remote control trapezoidal sheet stretching - at the input (0-0.6mm).
.

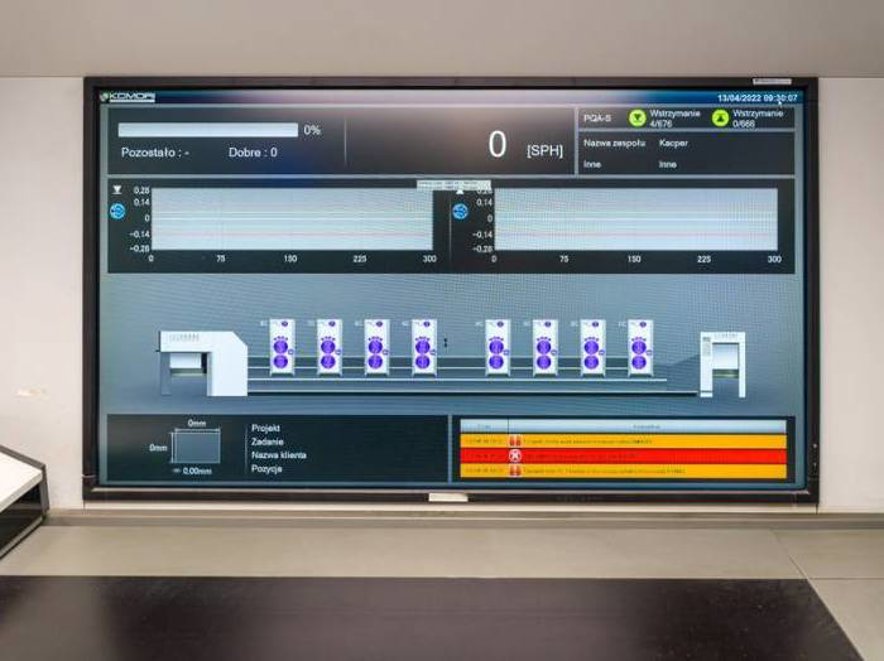

Komori Management System - KMS4 machine monitoring system.
.
Advanced, self-adaptive system for quick inking, dying and automatic control of printing parameters - Komori KHS-AI.
.
PQA-S - double-sided sheet inspection.
.
In-line color control system.
.
PDC-SX spectrophotometric reference control integrated in the PQC control panel.
.
Automatic washing of the inking unit.
.
Automatic washing of blankets and cylinders (Baldwin Impact).
.
Automatic impression cylinder washing (Baldwin Impact).
.
Disc register preset.
.
Preset format and thickness of the substrate.
.
Air preset.
.
Pressure cylinders with double diameter.
.
Double diameter transfer cylinders.
.
AF-APC - fully asynchronous automatic plate change without bending.
.

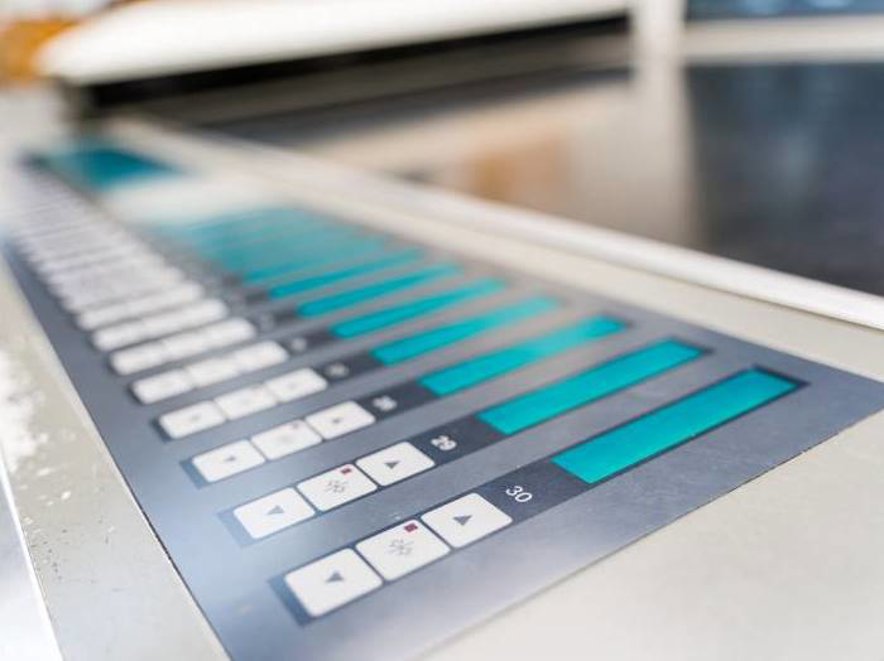

Fine adjustment of the ink supply (500 steps of the ink bottle screw opening).
.
KOMORIMATIC humidification unit.
.
Ultrasonic double sheet inspection (Ultrasonic).
.
Electronic meter control.
.
Cooling system for dampening solution and ink thinners (Baldwin Combiliner).
.
H-UV drying system
| Model | Komori-GL 840 P H-UV |
|---|---|
| Manufacturer | Komori |
| Year | 2014 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Europe Western |
About Komori - GL 840 P H-UV
The Komori GL 840 P H-UV is a high-performance, sheet-fed offset printing press designed for commercial and packaging printing applications. This machine is part of the GL series, known for its exceptional print quality, high productivity, and advanced features. The GL 840 P H-UV is ideal for printing high-volume jobs, such as brochures, catalogs, and packaging materials, that require precise color registration and vibrant colors. Its advanced H-UV curing system enables fast drying and instant curing, making it suitable for printing on a wide range of substrates, including plastics and non-absorbent materials.
Key Technical Aspects:
Dimensions and Specifications : The Komori GL 840 P H-UV has a maximum sheet size of 840 x 640 mm (33.07 x 25.2 in) and a minimum sheet size of 360 x 250 mm (14.17 x 9.84 in). The machine weighs approximately 12,000 kg (26,455 lbs) and has a maximum printing speed of 18,000 sheets per hour.
Paper Handling : The GL 840 P H-UV features a high-capacity feeder with a maximum pile height of 1,500 mm (59 in) and a sheet capacity of 5,000 sheets. The machine is equipped with a high-speed delivery system that can handle up to 18,000 sheets per hour.
Printing Unit : The printing unit is equipped with eight printing units, each with a maximum printing speed of 18,000 sheets per hour. The machine features Komori's advanced KHS-AI (Komori High-Speed Inking System-Automatic Ink Supply) inking system, which ensures consistent and precise ink transfer. The printing unit has a maximum resolution of 5,080 dpi and uses Komori's H-UV curing system, which enables fast drying and instant curing.
Ink System : The GL 840 P H-UV uses Komori's H-UV ink system, which is a high-reactive, 100% UV-curable ink system. The ink system has a capacity of 20 kg (44 lbs) per color and features an automatic ink supply system.
Plate Cylinder : The plate cylinder has a diameter of 840 mm (33.07 in) and is designed for high-speed printing. The cylinder features Komori's PDC-S (Plate Cylinder with Double-Surface) technology, which enables precise plate registration and consistent printing results.
