Console
Machine Specification
| Features | Value |
|---|---|
| Number of colours | 8 |
| Max sheet size | 25.59X37.01 inch | 65x94 cm |
Machine Description
A-APC, PDC-SX, Ink key simultaneous, KHS-AI *self learning function *self diagnosis *Plate register preset.
PQC-S, Smart sequence, High speed start up, Self diagnosis.

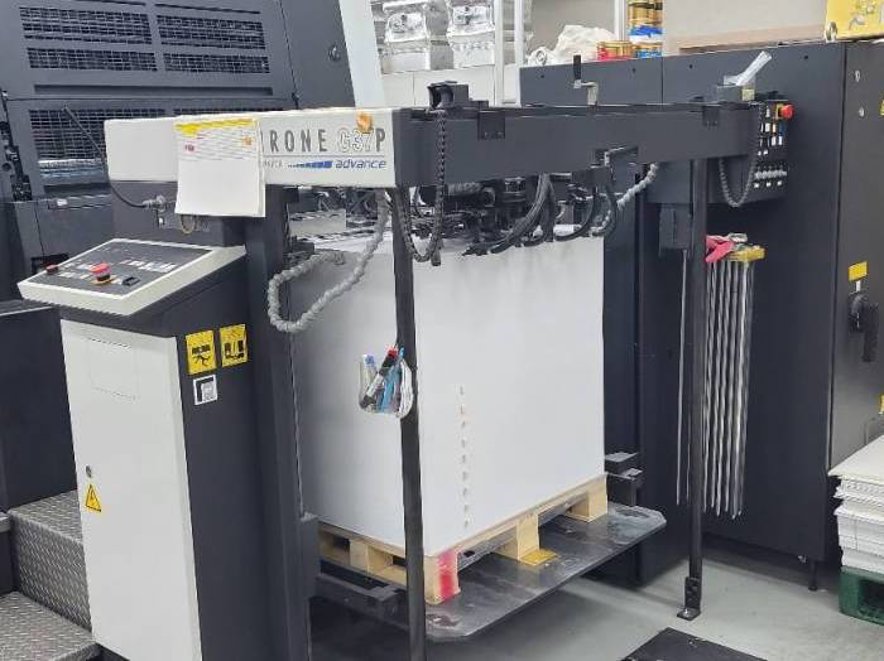

Feeder.
Manual nonstop feeder, Feeder anti static side blower, Feeder pile sideway control, Additional blower in front of sucker, Suction side lay guide,.
Register.
Side lay guide fine adjustment remote control, Pit less skid loader, Suction tape feeder, Anti static at feeder/Ionizing blower foot,.
Feeder side blower, Feeder board over shoot stopper, Ultrasonic double sheet detector, Register detection/2 step detection,.
Transfer cylinder cocking remote control,.
Cylinder.
Anti rust treatment for all cylinders, Automatic blanket cleaner, Perfecting device, Automatic impression cylinder cleaner..
Inker.
Ink doctor interval adjustment, Motorized ink fountain roller, Ink roller nip following, Ink oscillation timing manual adjustment, Automatic ink roller cleaner with twin nozzle,.
Ink roller temperature control circulator/local supply, Inker dampener declutch all printing units..
Damper.
Komorimatic, Oscillating rider roller on dampening from r from roller/under dampening roller, Ink washing tray pneumatic on/off, Refrigerated water circulator,.
Dampening from roller speed gear declutch..
Delivery.
Sheet decurler, Anti-static, Additional Anti-static bar at delivery, Delivery pile flat plate, Delivery sheet anti deviation device, Delivery pile upper temporary stop sensor,.
Powder spray, PQC integration..
Preset device.
Paper size preset package, Sucker head preset, Slow down preset, Side lay guide preset, Delivery side jogger preset, Ink keys simultaneous preset, Paper thickness preset..
H-UV system.
UV proof oil seals, Bridge roller, Inker doctor blade, Automatic blanket cleaner / UV prepack, Automatic ink roller cleaner with twin nozzles, H-UV system.
/delivery goose Check, Ink fountain tray cover, Electrical signal and mechanical parts arrangement, PQC-S integration for H-UV system..
Complete with standard accessories, with some spare parts.
| Model | Komori-GL 837 P H-UV Advance |
|---|---|
| Manufacturer | Komori |
| Year | 2021 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Asia |
About Komori - GL 837 P H-UV Advance
The Komori GL 837 P H-UV Advance is a high-performance, sheet-fed offset printing press designed for commercial and packaging printing applications. This advanced machine is equipped with cutting-edge technology, offering exceptional print quality, increased productivity, and reduced environmental impact. Key features of the GL 837 P H-UV Advance include its high-speed printing capabilities, advanced H-UV curing system, and automated plate changing system. This press is ideal for printing a wide range of materials, including paper, board, and plastics, making it a versatile solution for printers and converters.
Key Technical Aspects:
Dimensions and Specifications : The Komori GL 837 P H-UV Advance has a maximum sheet size of 740 x 1030 mm (29.13 x 40.55 in) and a minimum sheet size of 360 x 520 mm (14.17 x 20.47 in). The machine weighs approximately 12,000 kg (26,455 lbs) and has a maximum printing speed of 18,000 sheets per hour.
Paper Handling : The GL 837 P H-UV Advance features a high-capacity feeder with a maximum pile height of 1,500 mm (59 in) and a sheet thickness range of 0.04-1.2 mm (0.0016-0.047 in). The press is equipped with a high-speed delivery system, which includes a jogger and a stacker, allowing for efficient and precise sheet handling.
Printing Unit : The printing unit of the GL 837 P H-UV Advance features a maximum printing speed of 18,000 sheets per hour and a printing resolution of 300 lpi (lines per inch). The press utilizes Komori's advanced H-UV curing system, which provides instant drying and curing of inks, allowing for high-speed printing and reduced energy consumption.
Ink System : The GL 837 P H-UV Advance uses a high-performance, low-VOC (volatile organic compound) ink system, which is environmentally friendly and reduces emissions. The ink system features a maximum ink capacity of 20 kg (44 lbs) per color and is equipped with an automatic ink supply system for efficient ink management.
Plate Cylinder : The plate cylinder of the GL 837 P H-UV Advance features a diameter of 1,030 mm (40.55 in) and a circumference of 3,230 mm (127.17 in). The plate cylinder is designed for high-speed printing and features an automatic plate changing system, which allows for quick and efficient plate changes, reducing downtime and increasing productivity.
