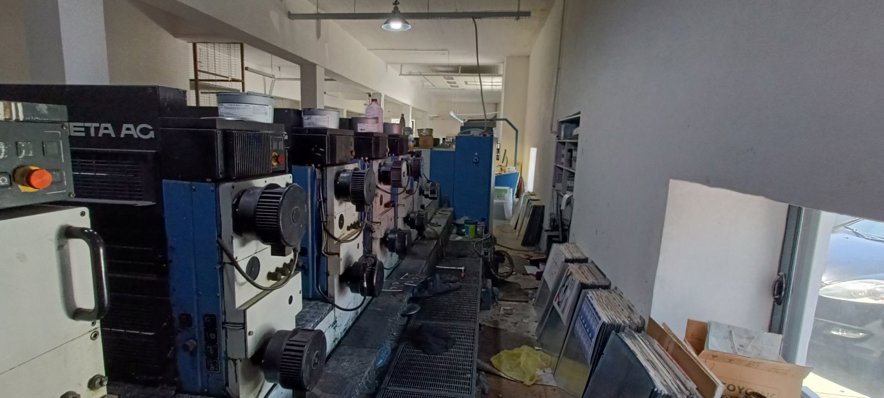

KBA - Rapida RA 72-5+L PWHA ALV

Key Technical Aspects:

Dimensions and Specifications : The KBA Rapida RA 72-5+L PWHA ALV has a length of 23.62 ft (7.2 m), a width of 6.56 ft (2 m), and a height of 7.38 ft (2.25 m). It weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size of 20.47 x 29.53 in (520 x 750 mm).

Paper Handling : The machine is equipped with a PWHA (Presetting Washing and High-Stacking Automation) system, which enables automated plate changing, washing, and drying. It features a high-pile feeder with a capacity of up to 5,000 sheets, and a delivery system with a stacking capacity of up to 5,000 sheets. The press also has an ALV (Automatic Logistics System) for efficient paper handling and logistics.

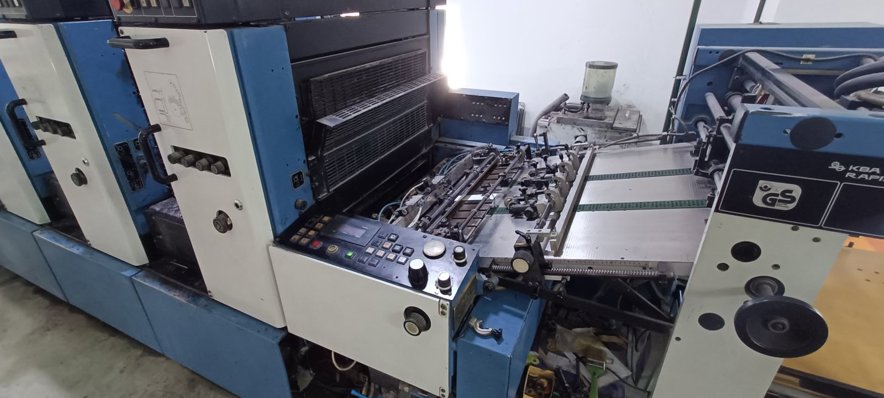

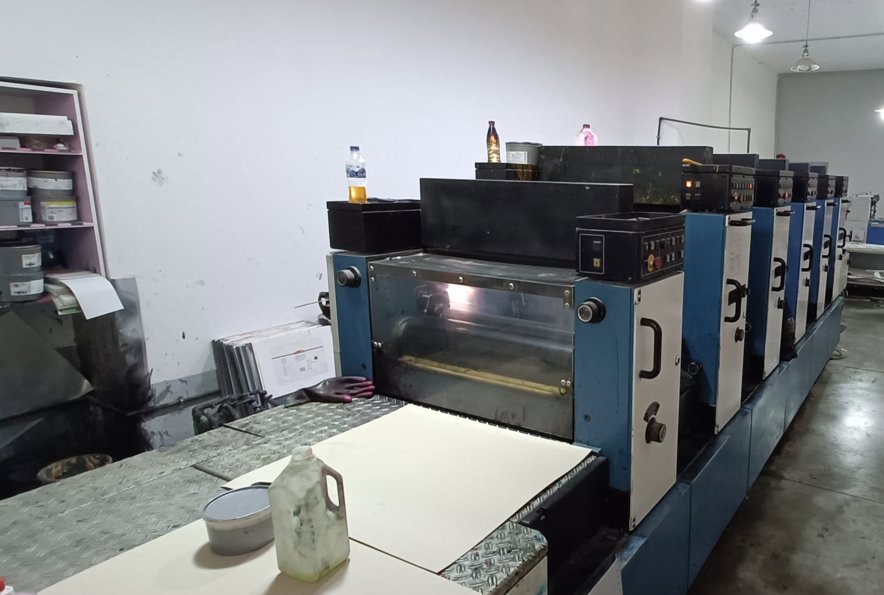

Printing Unit : The KBA Rapida RA 72-5+L PWHA ALV has five printing units, each capable of printing at speeds of up to 18,000 sheets per hour. The press features a maximum print resolution of 250 lpi and uses a combination of conventional and UV inks. The printing units are equipped with KBA's DriveTronic SPC (Simultaneous Plate Changing) system, which enables fast and simultaneous plate changing.

Ink System : The press uses a high-precision ink system with a flow rate of up to 120 kg/h. The system features a central ink supply unit and a ink pumping system that ensures consistent ink flow and pressure. The press is capable of handling a wide range of inks, including conventional, UV, and special inks.

Plate Cylinder : The plate cylinder has a diameter of 1.57 in (40 mm) and is designed for high-precision printing. It features a quick-change system that enables fast and easy plate changing, and is equipped with KBA's PlateTronic system, which ensures precise plate registration and alignment.
