Machine Specification
| Features | Value |
|---|---|
| Number of colours | 6 |
| Max sheet size | 29.13 X 41.73 inch | 74.00 X 106.00 cm |
Machine Description
Six Color with Coater.
CX Package.
Year: 2023.
Imp count: ca. 56 mil only.
Max sheet size: 740 X 1060 mm.
Min sheet size: 340 X 480 mm.
Max image area: 730 X 1050 mm.
Gripper edge: 10 mm.
Stock range: 0.04 – 1.2 mm (CX).
Voltage/Frequency: 380-420/50Hz.
Max speed: 18,000 s/h .
Equipment. DriveTronic Feeder.
ErgoTronic Console.
ErgoTronic App.
Wallscreen.
ColorTronic .
ErgoTronic XY color control.
QualiTronic Color Control Inline Color density control.
Logotronic Professional (includes CIP3/4 CTP workstation) .
Performannce Package.
FAPC (PWVA) – Fully Auto Plate Changing.
ErgoTronic automatic make ready.
ErgoTronic ACR automatic Register-control.
Ink Temperature Control preparation.
VariDamp alcohol dampening.
TECHNOTRANS IPA reduction Combi refrigeration & recirculation .
TECHNOTRAN InkLine supply.
CleanTronic All Automatic Washing devices.
Coating unit with chambered doctotor blade system.
1 Anilox roller - volume 10-11 cm²/m³.
1 Anilox roller - volume 13-14 cm²/m³.
Preparation for UV coating.
Circulator pump for water-based .
VariDry BLUE IR & hot air dryers.
Powder spray.

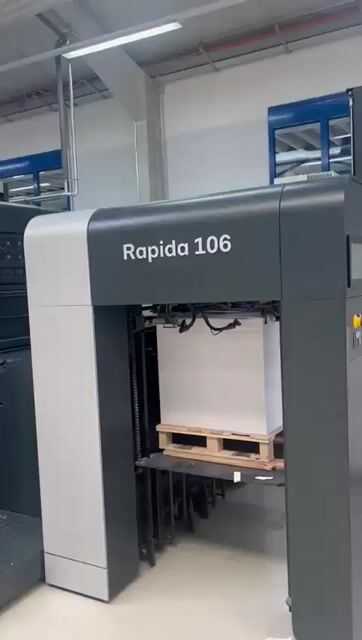

Non-stop rollo PileTronic Feeder and Delivery.
AntiStatic device.
Vacuum feed table.
Vacuum Side lay control.
All standard equipment, tools and manuals..
Available. by appointment.
Price: On Request...
The KBA RAPIDA 105-5-L FAPC ALV2 is a state-of-the-art sheet-fed offset printing press designed for high-performance commercial printing applications. This six-color machine with coater delivers exceptional print quality, efficiency, and automation, making it ideal for producing high-volume print jobs such as packaging, magazines, brochures, and commercial materials. Featuring advanced automation technologies like fully automatic plate changing (FAPC), inline color density control, and ergonomic operation systems, this 2023 model ensures precision, reduced setup times, and consistent output. Its robust construction and cutting-edge features cater to modern printing demands, offering reliability and versatility for diverse printing needs.
Key Technical Aspects:
Dimensions and Specifications : The KBA RAPIDA 105-5-L FAPC ALV2 operates at a maximum speed of 18,000 sheets per hour and supports a voltage/frequency range of 380-420V/50Hz. It features a compact yet powerful design, optimized for high-efficiency production with minimal downtime. The machine includes advanced automation packages such as DriveTronic Feeder, ErgoTronic Console, and Logotronic Professional for seamless workflow integration.
Paper Handling : This press accommodates a maximum sheet size of 740 x 1060 mm and a minimum sheet size of 340 x 480 mm, with a gripper edge of 10 mm. It supports a stock range of 0.04 – 1.2 mm, making it suitable for a wide variety of substrates. The machine is equipped with a non-stop rollo PileTronic feeder and delivery system, vacuum feed table, and anti-static devices to ensure smooth and uninterrupted paper handling.
Printing Unit : The RAPIDA 105-5-L features six printing units with a coater, enabling high-quality multi-color printing in a single pass. The maximum image area is 730 x 1050 mm, and the machine includes advanced features such as VariDamp alcohol dampening, ink temperature control preparation, and CleanTronic automatic washing devices. The coating unit is equipped with a chambered doctor blade system and two anilox rollers (10-11 cm²/m³ and 13-14 cm²/m³) for precise coating applications.
Ink System : The press includes a TECHNOTRANS InkLine supply system and VariDry BLUE IR & hot air dryers to ensure optimal ink consistency and drying performance. The ink system is designed for high-speed production, supporting both conventional and UV coating preparations. Additional features like QualiTronic inline color density control and ErgoTronic XY color control enhance color accuracy and repeatability.
Plate Cylinder : The machine is equipped with FAPC (Fully Automatic Plate Changing) technology, enabling quick and precise plate changes to minimize downtime. The ErgoTronic automatic make-ready and ACR (Automatic Register Control) systems further enhance operational efficiency and print precision.
| Model | KBA-RAPIDA 106-5-L FAPC ALV2 |
|---|---|
| Manufacturer | KBA |
| Year | 2023 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Dronning Mauds gate 1, 0250 Oslo, Norway |
Special Features
- Coating
KBA - RAPIDA 106-5-L FAPC ALV2
