Machine Specification
| Features | Value |
|---|---|
| Number of colours | 5 |
| Max sheet size | 41.34 X 28.35 inch | 105.00 X 72.00 cm |
Machine Description

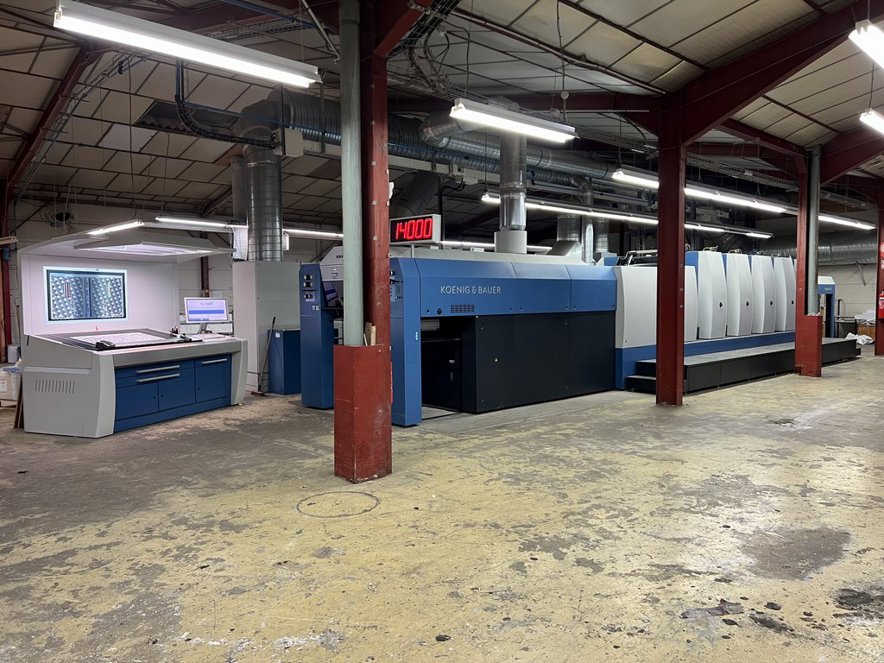

KBA Rapida 105-5 L FAPC ALV2 CX, Year 2019.
72x105 cm - 5 Colors Coating Tower Extended Delivery ALV2.
Counter: ONLY ca 64 mio impressions.
Equipped with:.
KBA ErgoTronic Console.
Wallscreen, QualiTronic LiveView.
ErgoTronic QualiTronic ColorControl (Inline colour measuring system).
ErgoTronic ColorDrive (Compact colour measurement) with Techkon SpectroDens.
LogoTronic with CIPLink-X (CIP3-PPF) Server.
KBA PressSupport 24Sheetfed.
FAPC (Fully Automatic Plate Change).
Cocking Register (lateral, vertical & diagonal).
CleanTronic Automatic Washers (Inking Rollers, Blanket and Impressions Cylinders).
VariDamp Dampening.
Technotrans Beta-c Central Refrigeration.
Technotrans Alcosmart AZR.

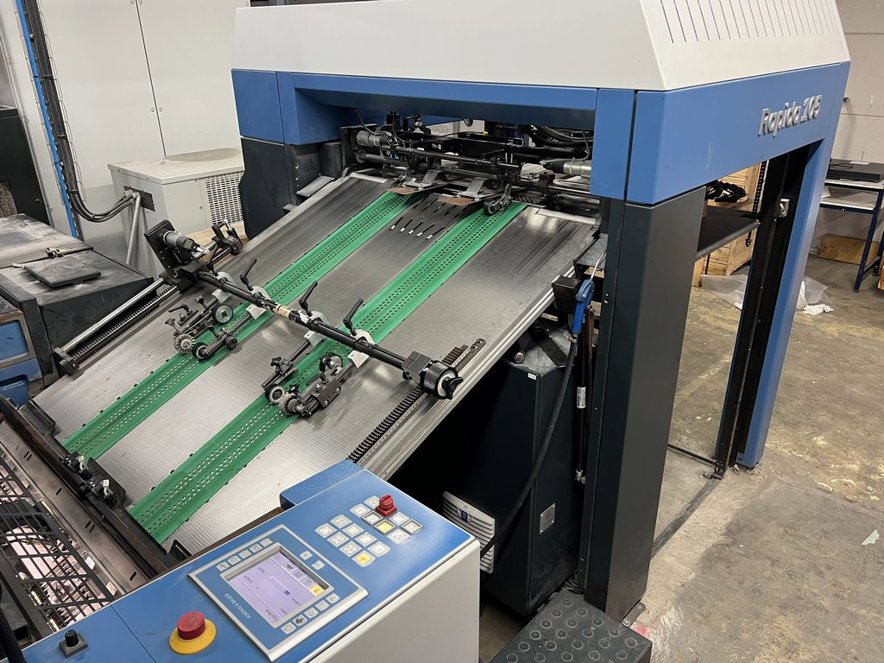

Feeder DriveTronic with 2 Suction-belts feed table.
Multiple-sheet detector and Ultrasonic Double-sheet detector.
Air Side lay and Front lay Detector.
Manual Non-Stop system in the Feeder.
Cardboard Sheet Guide Attatchment CX: 0,06 ~ 1,2mm.
Ink unit temperature control.
KBA Colortronic Ink keys.
Ink Agitators.
Venturi (Air Transfer System).
Chromed Impression Cylinders.
Extended Delivery ALV2 with Non-Stop Rollo.

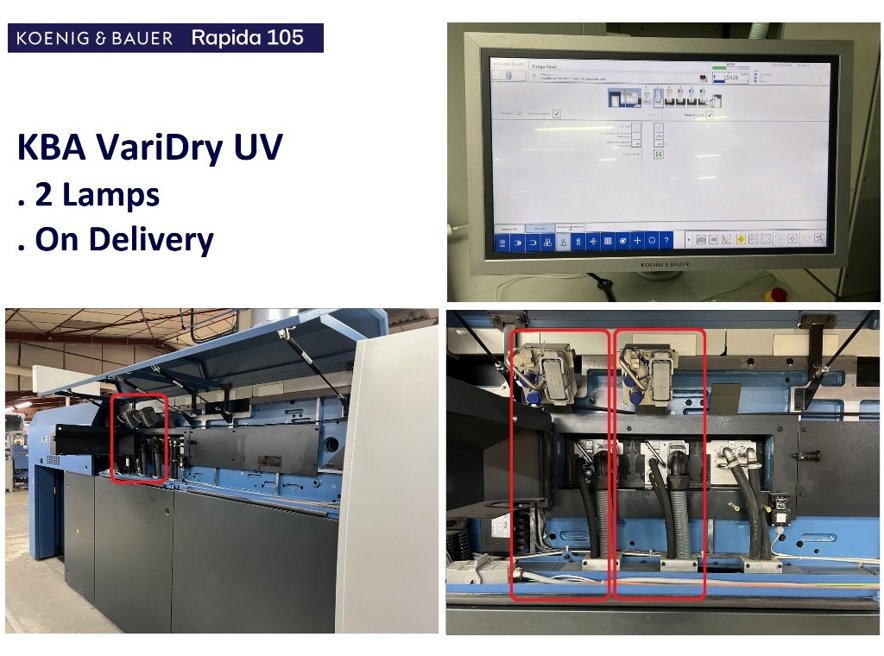

Dryer VariDry UV with 2 lamps on Delivery.

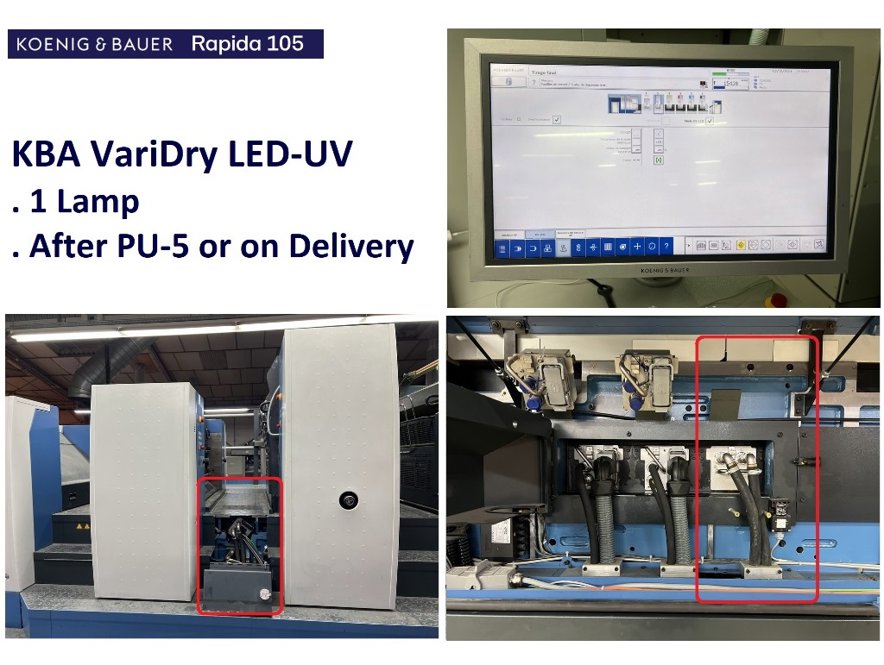

Dryer VariDry LED-UV with 1 lamp (Interdeck after PU-5 or on Delivery).
Chiller Grafix Coolmax for LED-UV lamps.
Grafix PowderMax Powder Spray with antistatic device.
Coating Tower Harris & Bruno with Chambered Doctor Blade.

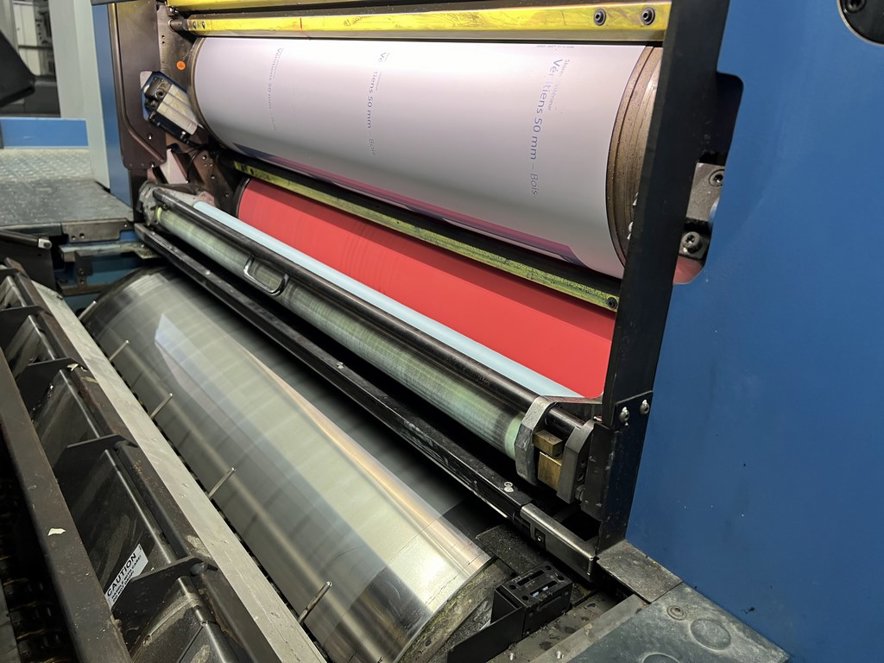

2x Anilox rollers (13 cm3 and 19 cm3).
Automatic Washer LithoCoat for Chambered Doctor Blade.

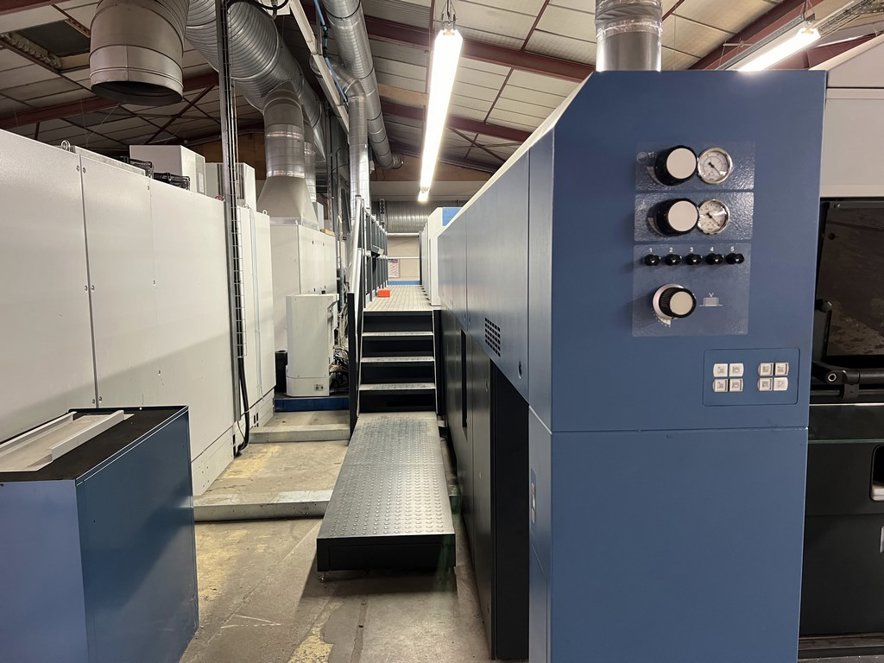

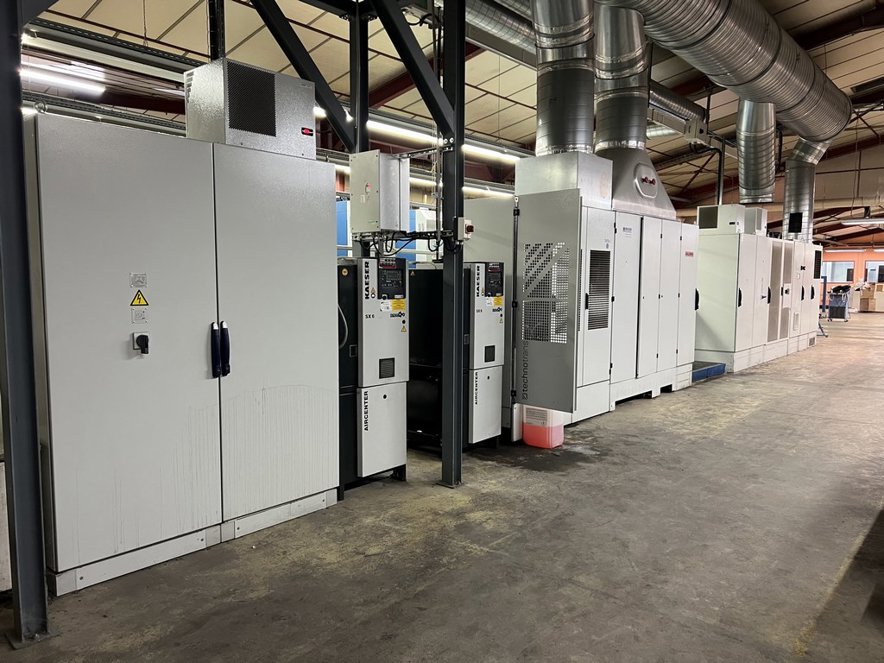

Air supply cabinet Becker.
2x Pneumatic compressors Kaeser SX6 AirCenter.
Including Tools, Manuals and Accessories.
Speed 16000 sph with Speed Display at the delivery.
.
Including: Plate Punch Wandt, Manuals, Tools, Transformer and Accessories.
Including: 1 Set of new inking rollers, 5 Sets of new dampening rollers, Several used rollers.
Possible to add: New Dryer KBA IR/Hot air...
The KBA Rapida 105-5 L FAPC ALV2 CX is a high-performance sheet-fed offset printing press designed for precision, efficiency, and versatility in commercial printing applications. Part of the renowned Rapida series, this 2019 model combines advanced automation, superior print quality, and robust construction to meet the demands of high-volume production. With a maximum sheet size of 72x105 cm and five color units plus a coating tower, it excels in producing vibrant, high-resolution prints on a wide range of substrates. Key features include fully automatic plate changing (FAPC), inline color measurement systems, and extended delivery with UV/LED drying capabilities, making it ideal for packaging, labels, commercial print, and specialty applications where consistency and speed are critical.
Key Technical Aspects:
Dimensions and Specifications : The KBA Rapida 105-5 L FAPC ALV2 CX operates at a maximum speed of 16,000 sheets per hour (sph) with a sheet size range of 360x300 mm to 720x1050 mm. It features a 5-color configuration with a coating tower and extended delivery (ALV2), supporting substrates from 0.06 mm to 1.2 mm thickness. The machine includes advanced automation such as ErgoTronic console, QualiTronic color control, and PressSupport 24Sheetfed for optimized performance and minimal setup time.

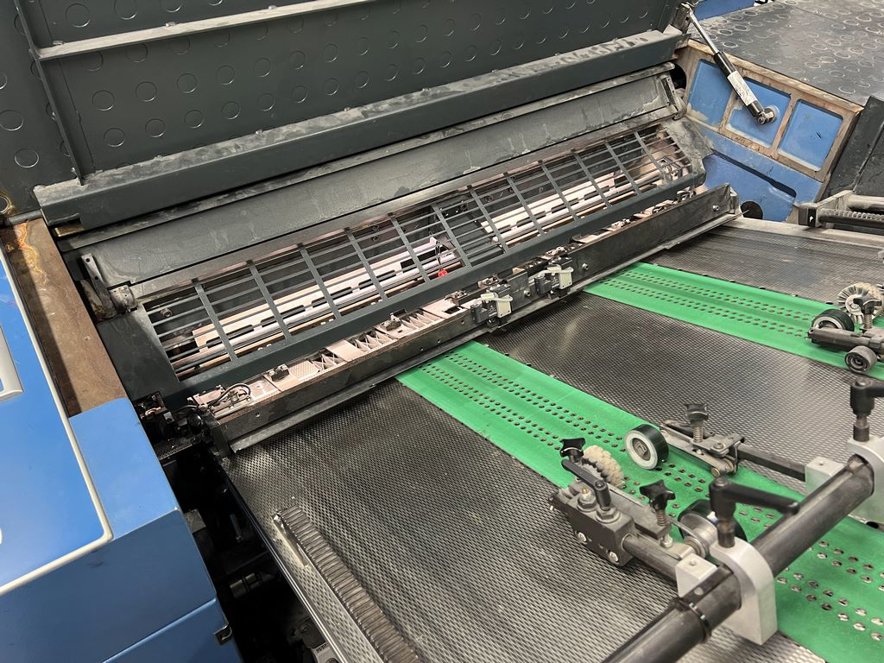

Paper Handling : Equipped with a feeder drive system featuring two suction-belt feed tables, the press ensures precise sheet alignment and transport. It includes a manual non-stop system in the feeder, air side lays, front lay detectors, and ultrasonic double-sheet detection for reliable handling of diverse substrates. The cardboard sheet guide attachment (CX) accommodates materials from 0.06 mm to 1.2 mm thickness, enhancing versatility for packaging and specialty applications.

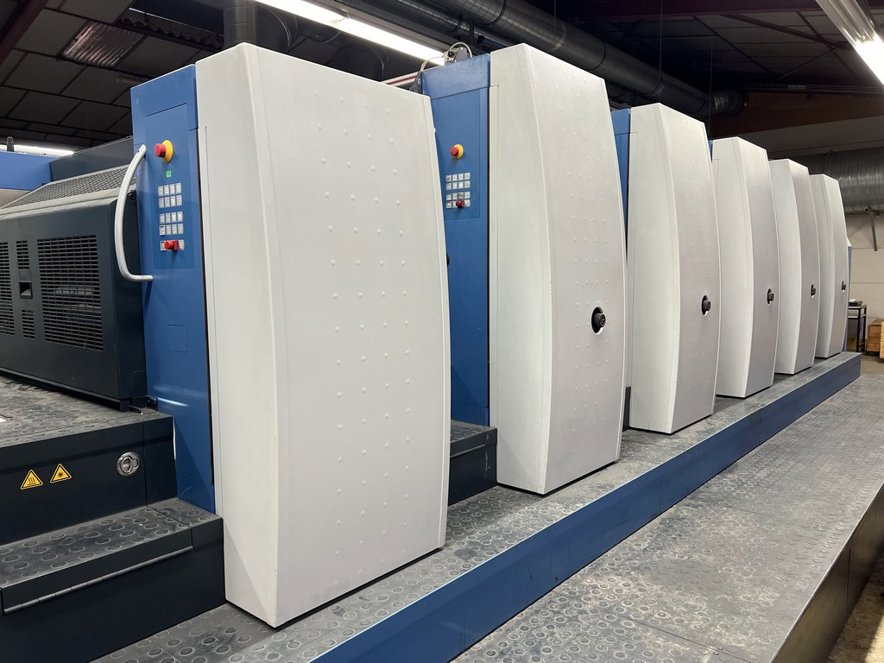

Printing Unit : The press features five printing units with a coating tower, enabling high-quality multicolor printing and inline coating in a single pass. It includes chromed impression cylinders, VariDamp dampening system, and CleanTronic automatic washers for inking rollers, blankets, and impression cylinders. Advanced drying options include VariDry UV (2 lamps) and VariDry LED-UV (1 lamp) with Grafix Coolmax chiller, ensuring rapid curing and consistent print quality.
Ink System : The KBA Colortronic ink keys and temperature-controlled ink units maintain precise ink distribution and viscosity. The system includes ink agitators and Technotrans Beta-c central refrigeration for stable ink performance. Automatic washers (CleanTronic) and Technotrans Alcosmart AZR further enhance ink management and reduce downtime.
Plate Cylinder : The press is equipped with a fully automatic plate change (FAPC) system, reducing setup time and improving efficiency. It includes cocking register (lateral, vertical, and diagonal) for precise plate alignment, along with a LogoTronic system featuring CIPLink-X (CIP3-PPF) server for seamless integration with prepress workflows. The plate punch (Wandt) and automatic washer (LithoCoat) for chambered doctor blades ensure optimal plate handling and maintenance.
| Model | KBA-Rapida 105-5 L FAPC ALV2 CX |
|---|---|
| Reference Number | # D9488 |
| Manufacturer | KBA |
| Year | 2019 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | 15 Rue de la Presse, 42000 Saint-Étienne, France |
