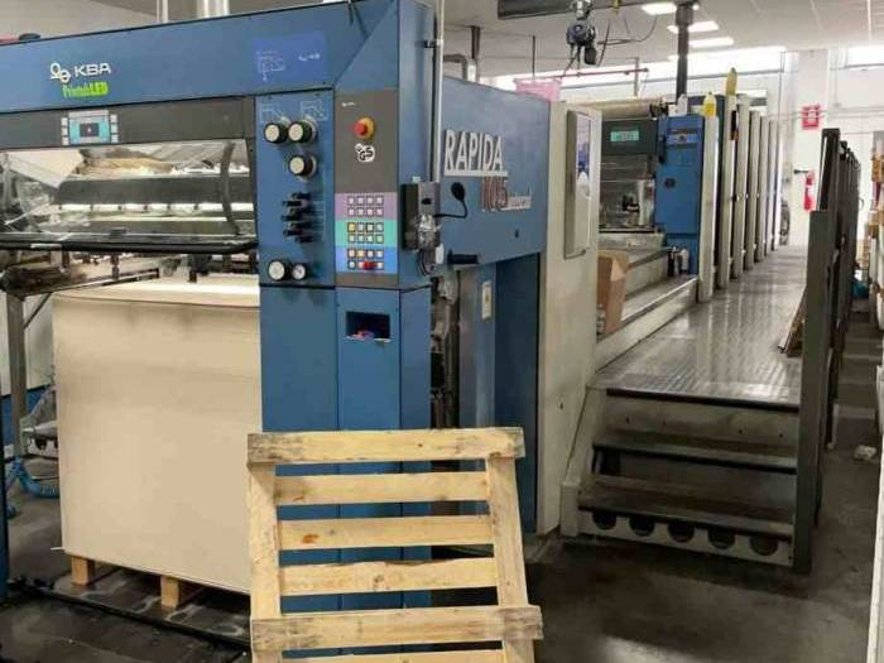

KBA - Rapida RA 105 6 L PWVA UV LED

Key Technical Aspects:

Dimensions and Specifications : The KBA Rapida RA 105 6 L PWVA UV LED has a maximum sheet size of 740 x 1050 mm (29.13 x 41.34 in) and a minimum sheet size of 350 x 500 mm (13.78 x 19.69 in). The machine weighs approximately 12,000 kg (26,455 lbs) and has a maximum printing speed of 18,000 sheets per hour.

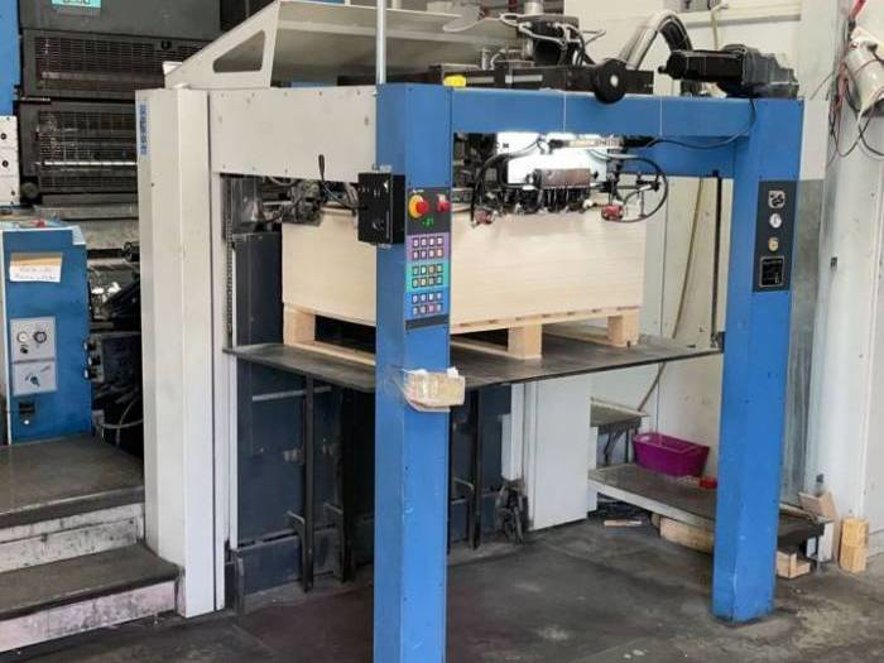

Paper Handling : The RA 105 6 L PWVA UV LED features a high-capacity feeder with a maximum pile height of 1,400 mm (55.12 in) and a sheet capacity of 5,000 sheets. The machine is equipped with a PWVA (Parallel Walker Vacuum Assist) system, which enables smooth and precise sheet transport. The delivery section features a L (long) delivery extension, allowing for efficient and organized sheet stacking.

Printing Unit : The printing unit is equipped with six printing units, each featuring a maximum printing speed of 18,000 sheets per hour and a resolution of 1:1. The machine uses a UV LED curing system, which provides fast drying times and enables the use of special inks and coatings. The printing unit also features KBA's VariDryBLUE drying system, which ensures consistent and high-quality drying results.

Ink System : The RA 105 6 L PWVA UV LED uses a UV LED ink system, which provides fast curing times and enables the use of special inks and coatings. The machine features a maximum ink capacity of 20 kg (44.09 lbs) per color and is equipped with an automatic ink supply system.

Plate Cylinder : The plate cylinder has a diameter of 105 mm (4.13 in) and features KBA's PlateIdent automatic plate recognition system, which enables fast and precise plate changing. The machine also features a PlateSave plate cleaning system, which reduces waste and minimizes environmental impact.
