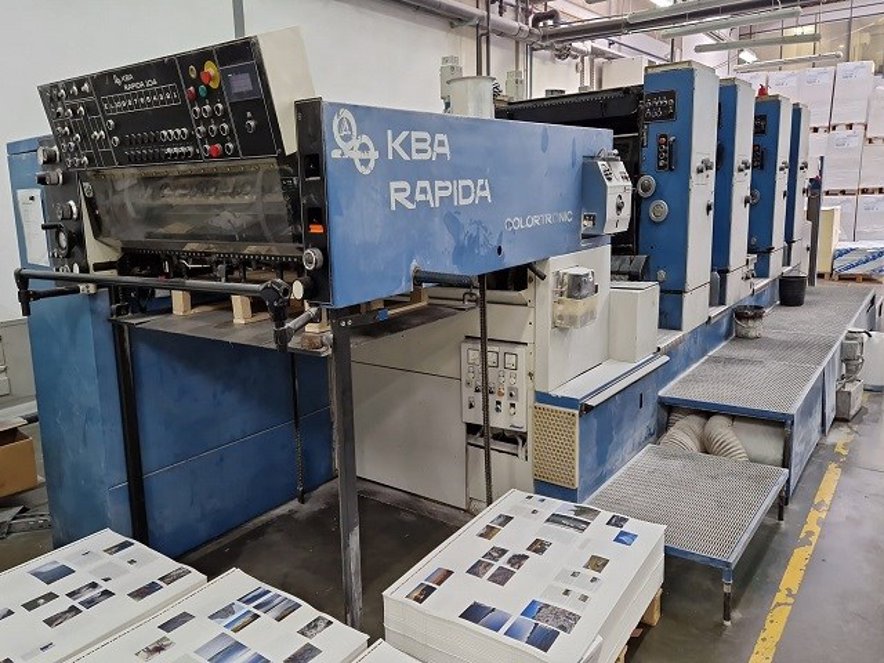

KBA - Rapida RA 104

Key Technical Aspects:

Dimensions and Specifications : The KBA Rapida RA 104 has a length of 6,350 mm, a width of 2,350 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum sheet size of 740 x 1,040 mm. The press has a capacity of up to 18,000 sheets per hour.

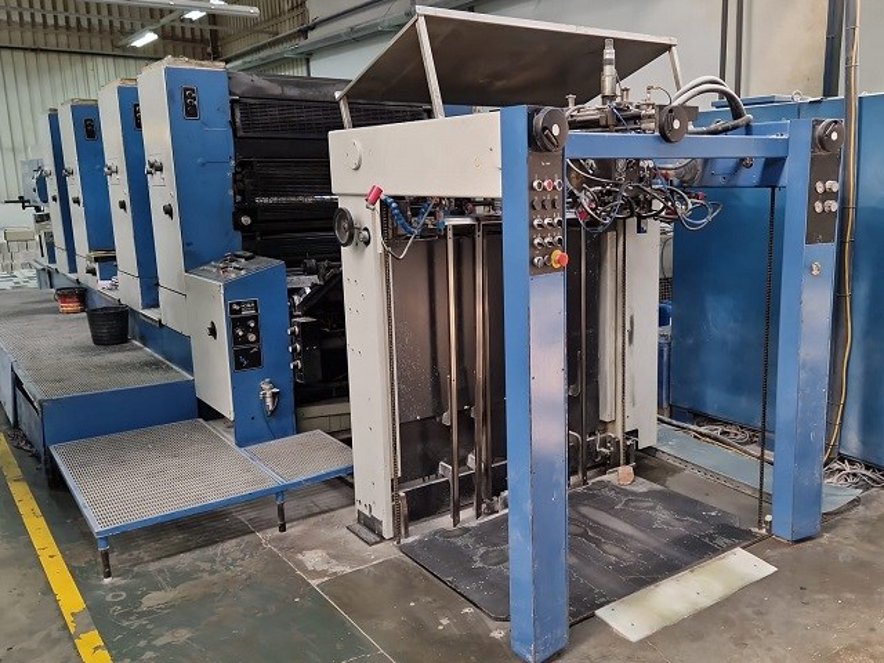

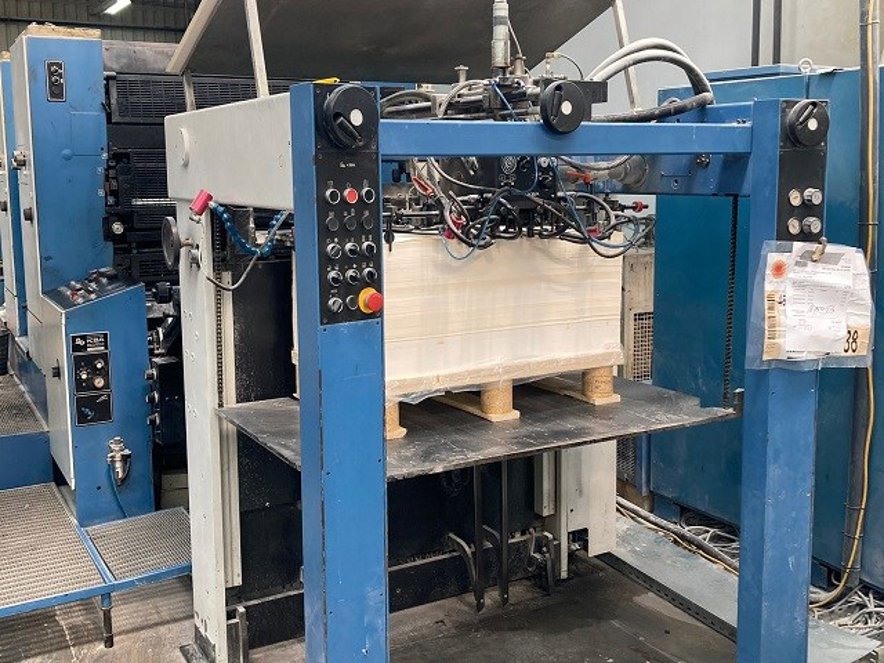

Paper Handling : The RA 104 features a high-performance paper handling system, including a feeder with a capacity of up to 5,000 sheets, an infeed system with automatic sheet alignment, and a delivery system with a pile height of up to 1,500 mm. The press is also equipped with an optional automatic plate changing system.

Printing Unit : The KBA Rapida RA 104 has a maximum print speed of 18,000 sheets per hour and a print resolution of up to 300 lpi. The press uses a high-precision printing unit with a maximum printing pressure of 400 kN and a printing cylinder diameter of 104 mm. The RA 104 also features KBA's VariDry drying system, which ensures fast and efficient drying of inks.

Ink System : The RA 104 uses a high-performance ink system with a maximum ink flow rate of 1,200 kg/h. The press is equipped with a chambered doctor blade system and an anilox roller with a maximum line screen of 400 lpi. The ink system also features an optional ink mist extraction system.

Plate Cylinder : The plate cylinder of the RA 104 has a diameter of 104 mm and a maximum plate thickness of 2.48 mm. The plate cylinder is designed for high-precision plate registration and features an automatic plate changing system, allowing for fast and efficient job changes.
