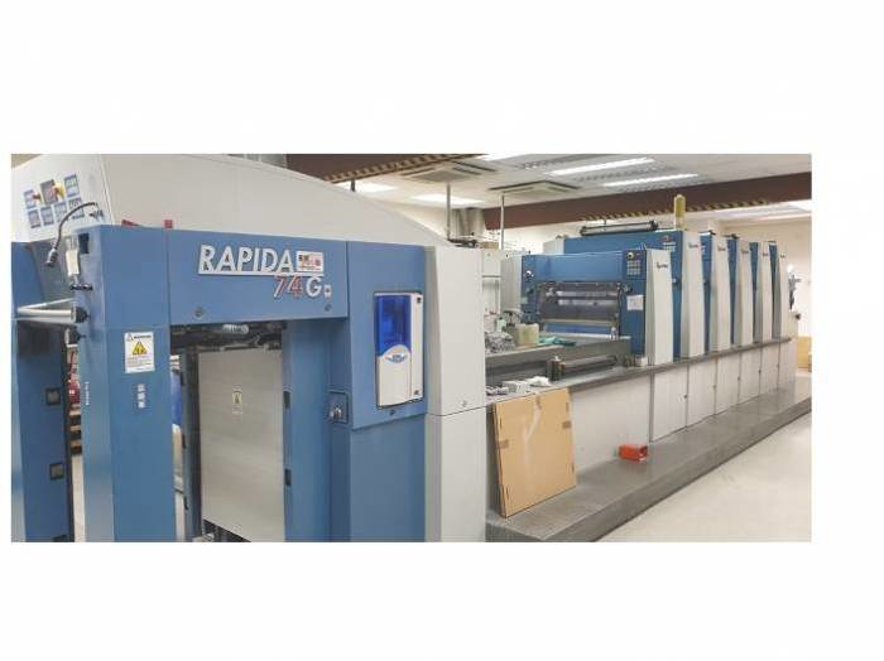

KBA - 74 G-5 L ALV2 CX PWHA

Key Technical Aspects:

Dimensions and Specifications : The KBA 74 G-5 L ALV2 CX PWHA has a length of 23.62 ft (7.2 m), a width of 10.17 ft (3.1 m), and a height of 8.2 ft (2.5 m). It weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size of 28.74 x 40.55 in (730 x 1030 mm).

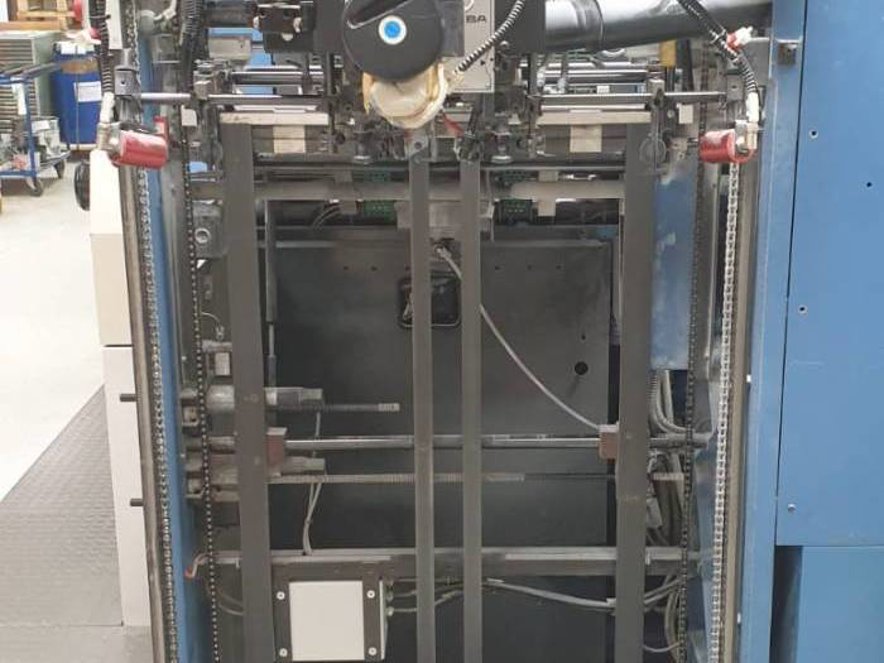

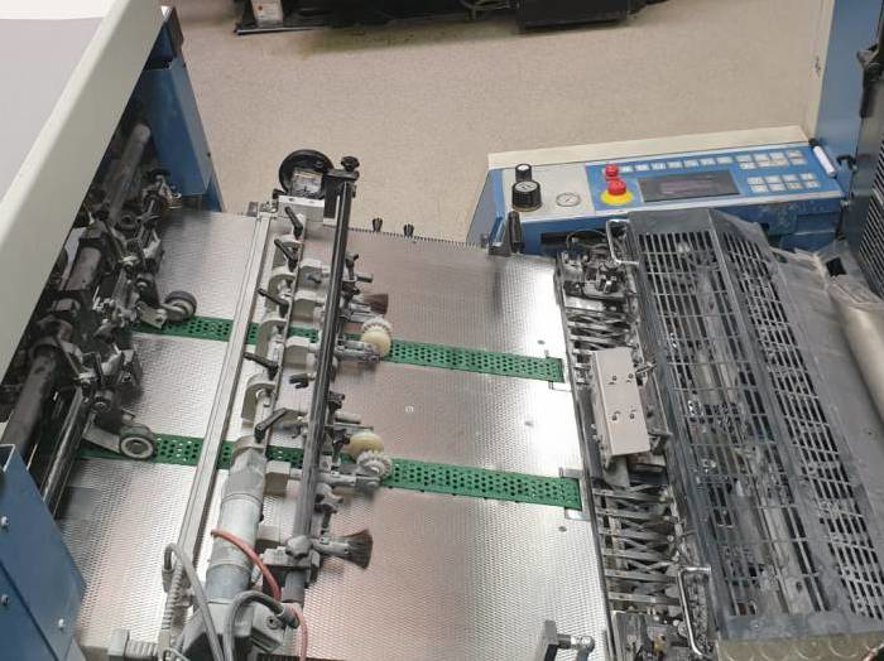

Paper Handling : The press features a high-capacity feeder with a maximum pile height of 31.5 in (800 mm) and a sheet size range of 11.81 x 15.75 in (300 x 400 mm) to 28.74 x 40.55 in (730 x 1030 mm). The delivery system includes a CX-type extended delivery with a maximum pile height of 39.37 in (1000 mm) and a sheet ejection system.

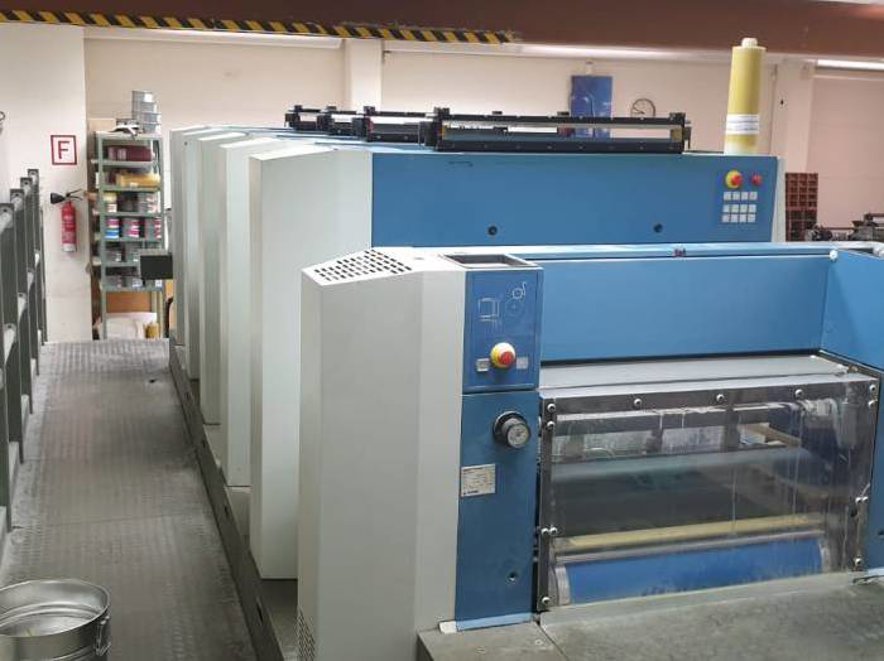

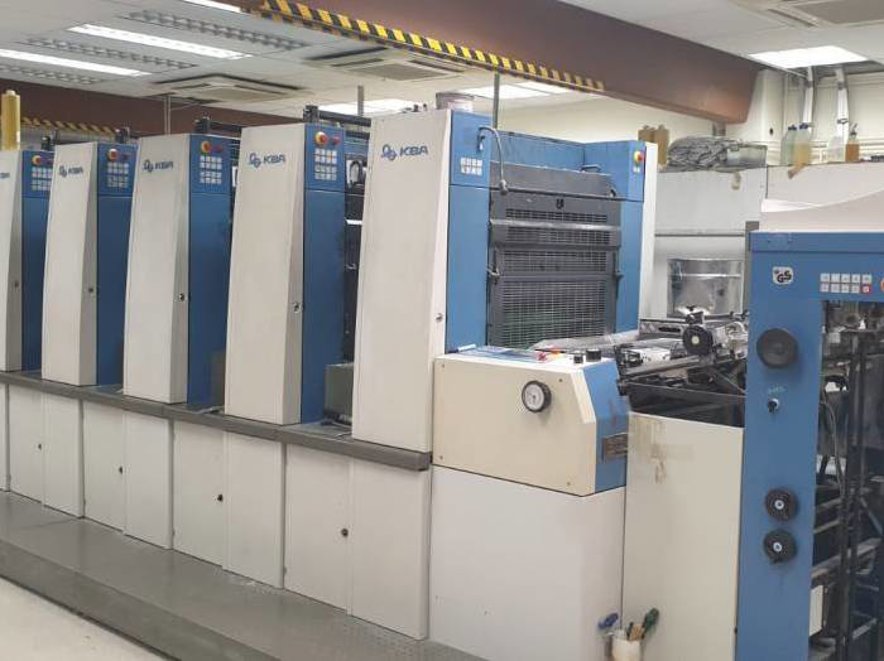

Printing Unit : The KBA 74 G-5 L ALV2 CX PWHA is equipped with five printing units, each with a maximum printing speed of 18,000 sheets per hour. The press features a maximum printing pressure of 4,400 lbf/in (800 N/mm) and a printing resolution of 254 lpi (100 l/cm).

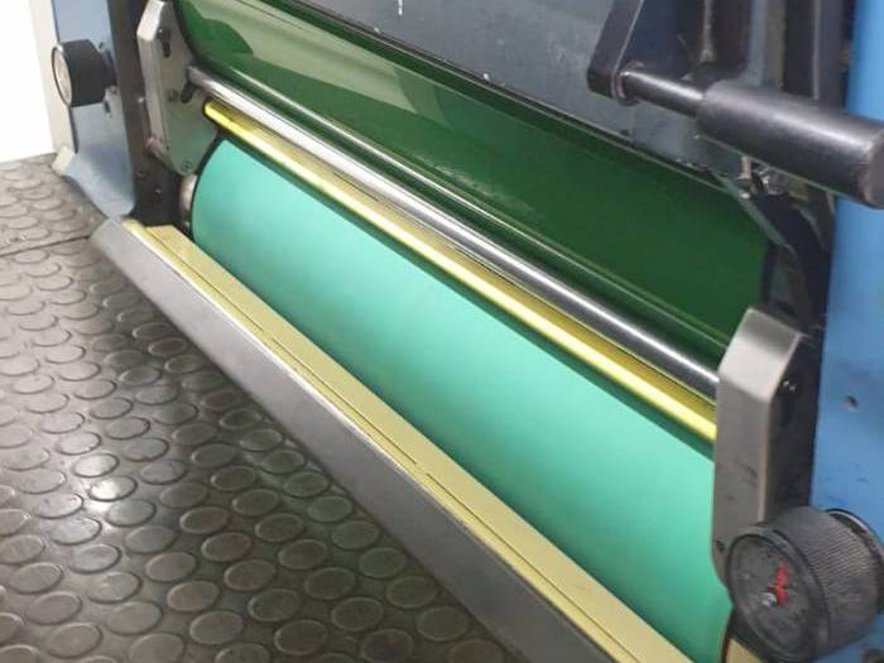

Ink System : The press uses a high-performance ink system with a maximum ink flow rate of 120 kg/h. The system features an anilox roller with a 60° screen angle and a chambered doctor blade system.

Plate Cylinder : The plate cylinder has a diameter of 4.33 ft (1.32 m) and a circumference of 13.78 ft (4.2 m). It features a plate changing system with a maximum plate size of 28.74 x 40.55 in (730 x 1030 mm) and a minimum plate size of 11.81 x 15.75 in (300 x 400 mm).
