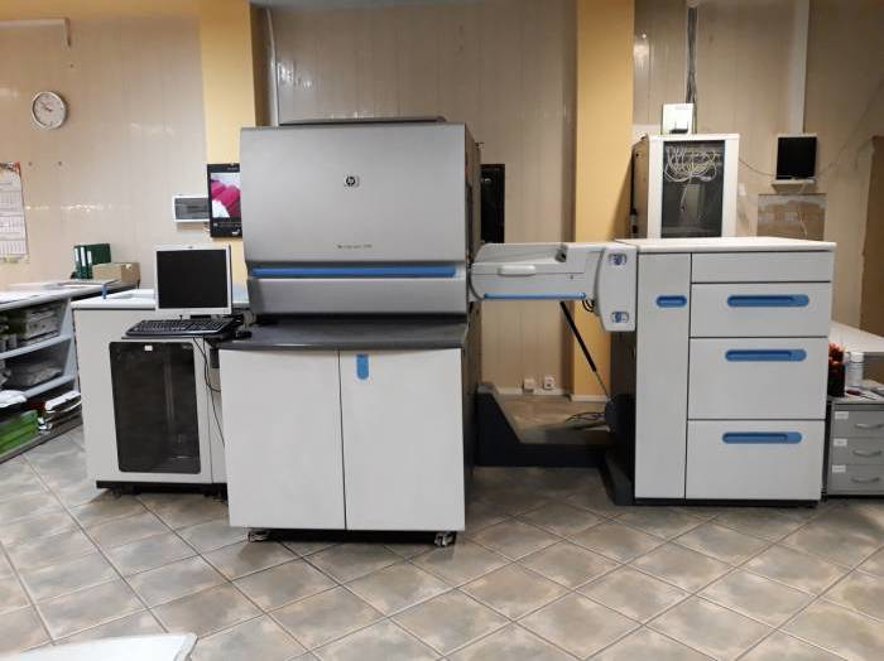

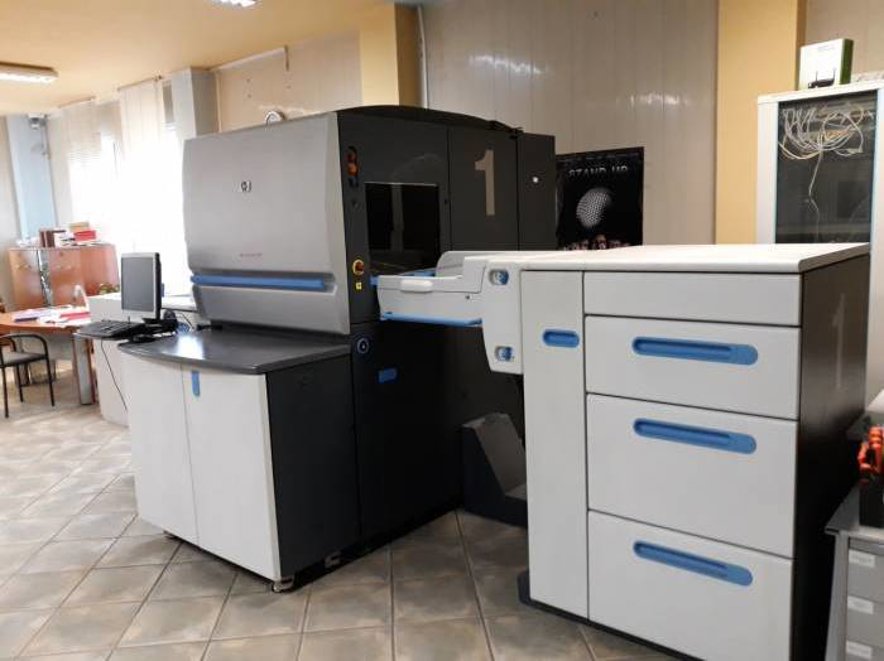

HP - Indigo 5000

Key Technical Aspects:

Dimensions and Specifications : The HP Indigo 5000 has a footprint of 13.12 ft x 4.92 ft x 5.57 ft (4 m x 1.5 m x 1.7 m) and weighs approximately 4,400 lbs (2,000 kg). The press has a maximum sheet size of 12.6 in x 17.7 in (320 mm x 450 mm) and a minimum sheet size of 3.15 in x 4.72 in (80 mm x 120 mm).

Paper Handling : The HP Indigo 5000 features a vacuum-fed paper handling system with a maximum input capacity of 10,000 sheets and a maximum output capacity of 5,000 sheets. The press has a dual-paper path, allowing for simultaneous printing on two different paper stocks.

Printing Unit : The HP Indigo 5000 uses HP's ElectroInk technology, which provides high-quality prints at speeds of up to 3,450 sheets per hour in four-color mode and up to 6,900 sheets per hour in two-color mode. The press has a maximum resolution of 2,438 dpi and supports a wide range of print formats, including PDF, PS, and PCL.

Ink System : The HP Indigo 5000 uses HP's ElectroInk, a liquid ink system that provides vibrant, photo-quality prints. The press has seven ink stations, allowing for the use of special colors and spot colors. The ink system has a capacity of 1 liter per color.

Plate Cylinder : The HP Indigo 5000 features a digital plate cylinder, which eliminates the need for traditional printing plates. The plate cylinder is imaged on the fly, allowing for fast job changes and minimal waste.
