Heidelberg - XL 75-5 C

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg XL 75-5 C has a length of 23.62 ft (7.2 m), a width of 10.17 ft (3.1 m), and a height of 7.55 ft (2.3 m). It weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size of 29.13 x 41.34 in (74 x 105 cm).

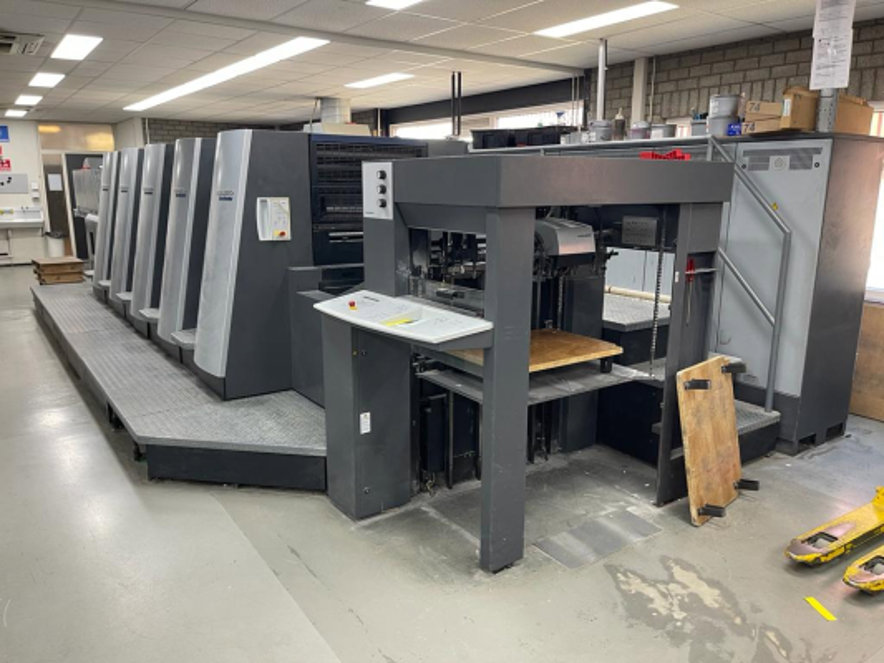

Paper Handling : The XL 75-5 C features a high-capacity paper handling system, including a feeder with a capacity of up to 10,000 sheets, and a delivery system with a capacity of up to 15,000 sheets. The machine is equipped with advanced features such as automatic sheet alignment, sheet monitoring, and a reject gate for efficient paper handling.

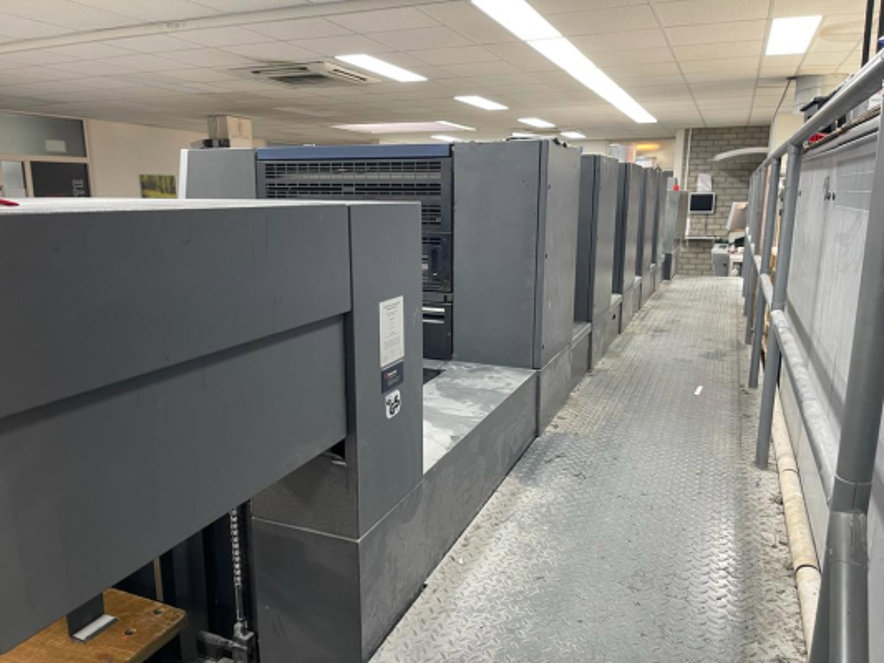

Printing Unit : The printing unit of the XL 75-5 C is equipped with five printing units, each capable of producing up to 18,000 sheets per hour. The machine features a maximum print resolution of 2,438 dpi and uses Heidelberg's advanced Gapless Transfer Technology for precise color registration and high-quality prints.

Ink System : The XL 75-5 C uses a high-performance ink system with a capacity of up to 20 kg per color. The machine features an advanced ink metering system, which ensures precise ink application and minimizes waste. The ink system is also equipped with an automatic ink supply and cleaning system for efficient maintenance.

Plate Cylinder : The plate cylinder of the XL 75-5 C has a diameter of 2.36 in (60 mm) and is designed for high-speed printing. The cylinder features a advanced plate clamping system, which ensures precise plate registration and minimizes plate wear. The machine is also equipped with an automatic plate changing system, which reduces downtime and increases productivity.
