Machine Specification
| Features | Value |
|---|---|
| Number of colours | 8 |
| Max sheet size | 20.87X29.13 inch | 53x74 cm |
Machine Description

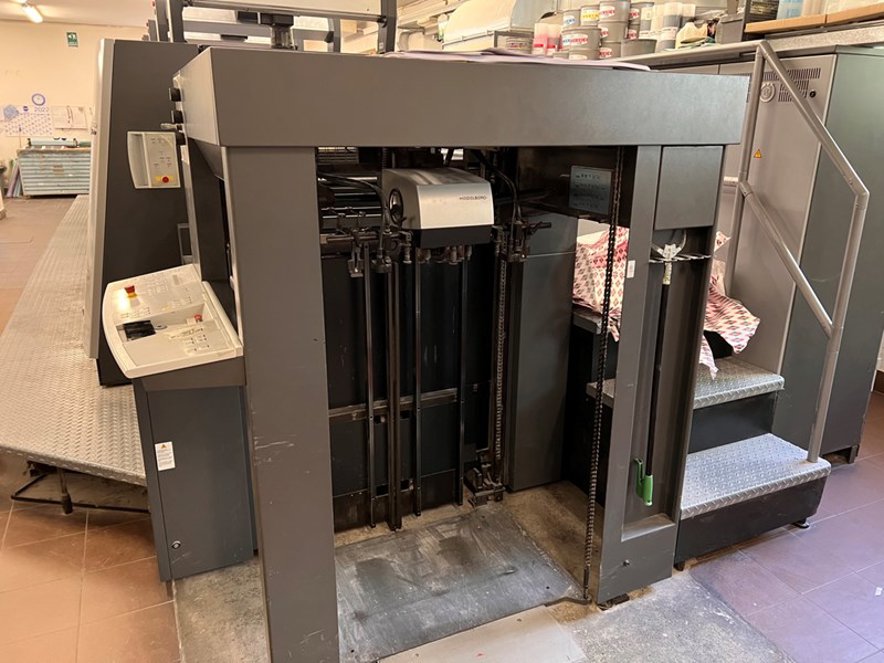

Size: 53 x 75cm, Perfecting 8-0/4-4 (paper size setup and 8-0/4-4 conversion completely automatic), High pile delivery, Speed 15.000 sheet/h, Thickness 0,03-0,8 mm, Print area size 510 x 740 mm C, Plate size 605 x 745 mm spess 0,30 mm C, Blancket size 772 x 700 mm spess 1,90 mm, Steel plate on feeder and delivery with ramp (for plastic or wooden pallets), Preset Plus feeder and delivery, Stream feeder with central suction belt, Electronic double sheet detection, Electromechanic double sheet detection ULTRASONIC, Electronic side lay control, fotoelectronic and akustic, Anti-static on feeder and delivery, Alcolor Vario continuous dampening system with Technotrans's alcohol metering; cooling and re-circulation unit system, Preset (autom. paper size and thickness setting), Prinect Press Center; touch screen control: diagnosis; self diagnostic; remote inking; dampening; axial, circumferential and diagonal register control; day light illuminator and memory card for job memories, Axis control, Programmable automatic blanket cylinders wash up via Prinect, Programmable automatic impression cylinders wash up via Prinect, Programmable automatic rollers wash up via Prinect, Autoplate (semi automatic plate loader) with Bacher Control 2000 register system, Ink temperature control system Technotrans (air cooled system), Chromed cylinders, Central lubrication with automatic central service interval control via Prinect, Centralized air supply system cabinet (vacuum and compressors), Venturi air transfer sheet guide system, Powder sprayer, Heidelberg Airstar, Scrollstar, Automatic sheet de-curler, Oil drip pan, Tools, Documentations..
| Model | Heidelberg-XL 75-5 |
|---|---|
| Manufacturer | Heidelberg |
| Year | 2008 |
| Machine Availability | Immediately |
| Machine Condition | Excellent |
| Price | On Request |
| Location | USA |
Special Features
- Computer Controls/ Digital Controls
- Perfecting
About Heidelberg - XL 75-5

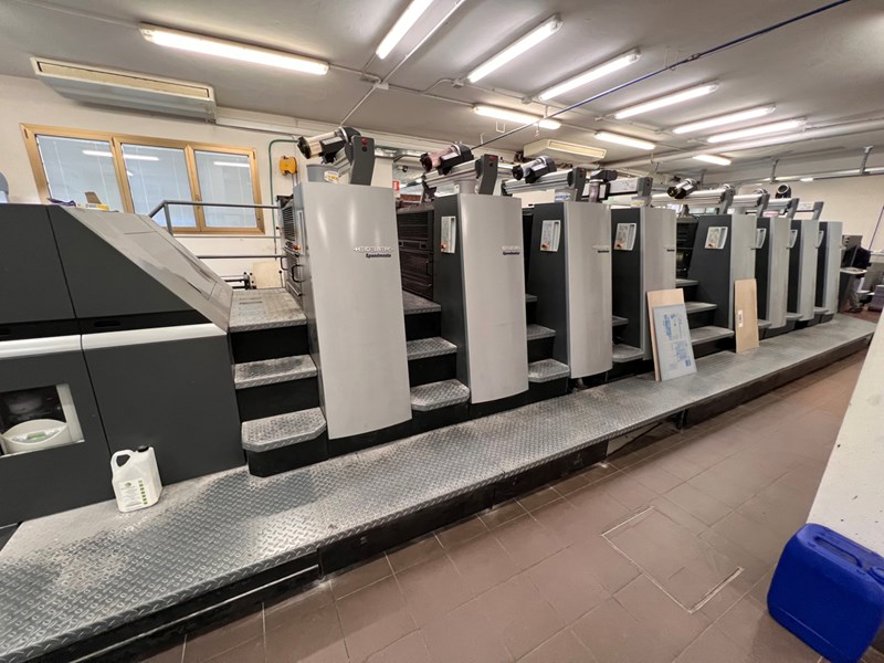

The Heidelberg XL 75-5 is a high-performance, five-color sheet-fed offset printing press designed for commercial and industrial printing applications. This machine is part of the XL series, known for its exceptional print quality, high productivity, and versatility. The XL 75-5 is ideal for printing a wide range of materials, including business cards, brochures, labels, and packaging materials. Its key features include advanced automation, precise registration, and a high-speed printing capability, making it an excellent choice for large-scale printing operations.
Key Technical Aspects:
Dimensions and Specifications : The Heidelberg XL 75-5 has a length of 12,300 mm, a width of 2,400 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum sheet size of 750 x 1,050 mm. The machine's capacity is up to 18,000 sheets per hour.
Paper Handling : The XL 75-5 features a high-performance paper handling system, including a feeder with a capacity of up to 5,000 sheets, an in-line sheet inspection system, and a delivery system with a pile height of up to 1,500 mm. The machine can handle a wide range of paper weights, from 60 to 600 gsm.
Printing Unit : The printing unit of the XL 75-5 is equipped with five printing units, each with a maximum printing speed of 18,000 sheets per hour. The machine uses a high-precision, servo-driven inking system and has a maximum printing resolution of 2,438 dpi. The printing technology used is sheet-fed offset lithography.
Ink System : The XL 75-5 uses a high-performance, alcohol-free dampening system and a low-maintenance, sealed ink system with a capacity of up to 20 kg per color. The machine is equipped with an automatic ink supply system and an ink temperature control system.
Plate Cylinder : The plate cylinder of the XL 75-5 has a diameter of 1,050 mm and is designed for high-precision plate mounting and demounting. The machine features an automatic plate changing system, allowing for fast and efficient job changes.
