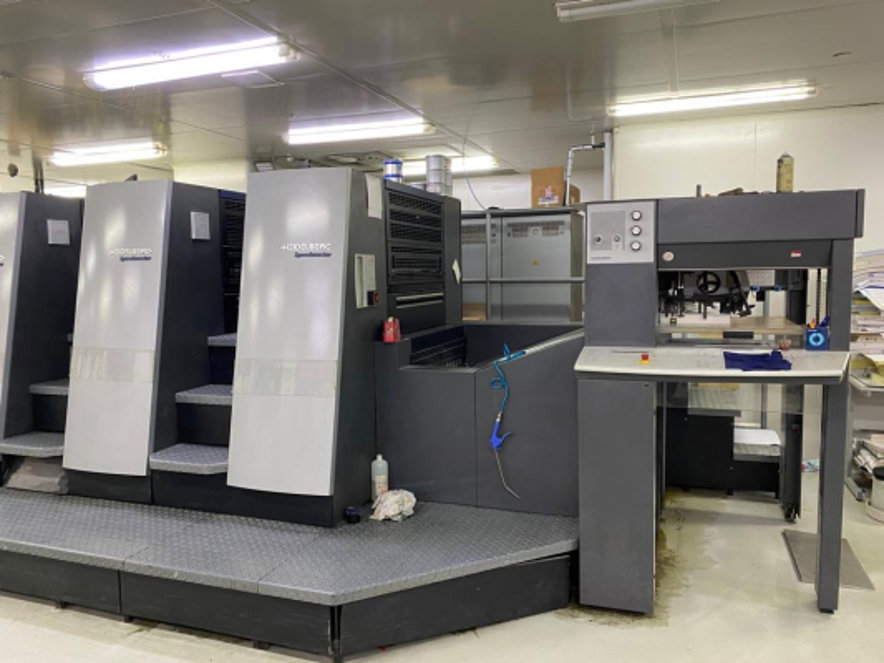

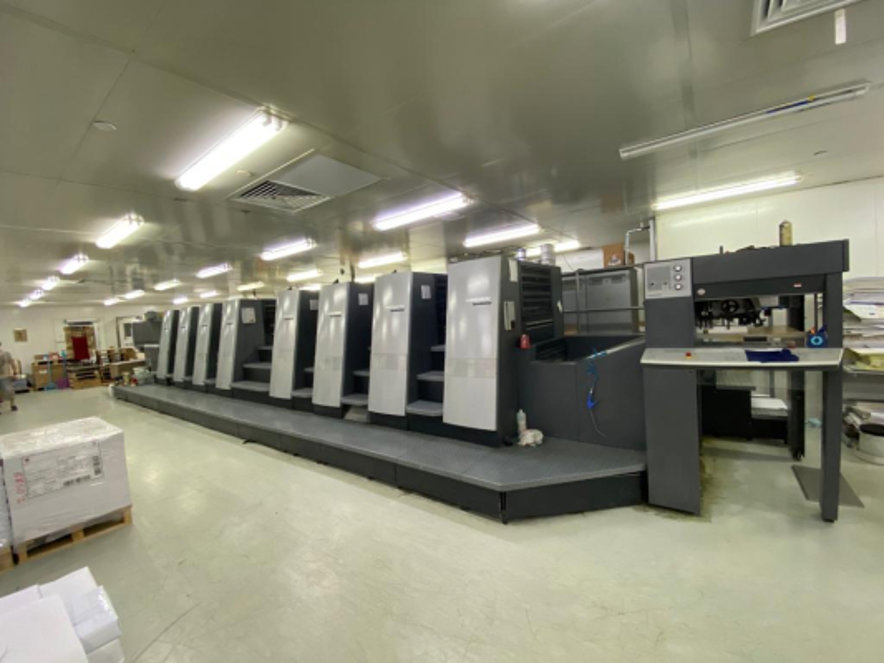

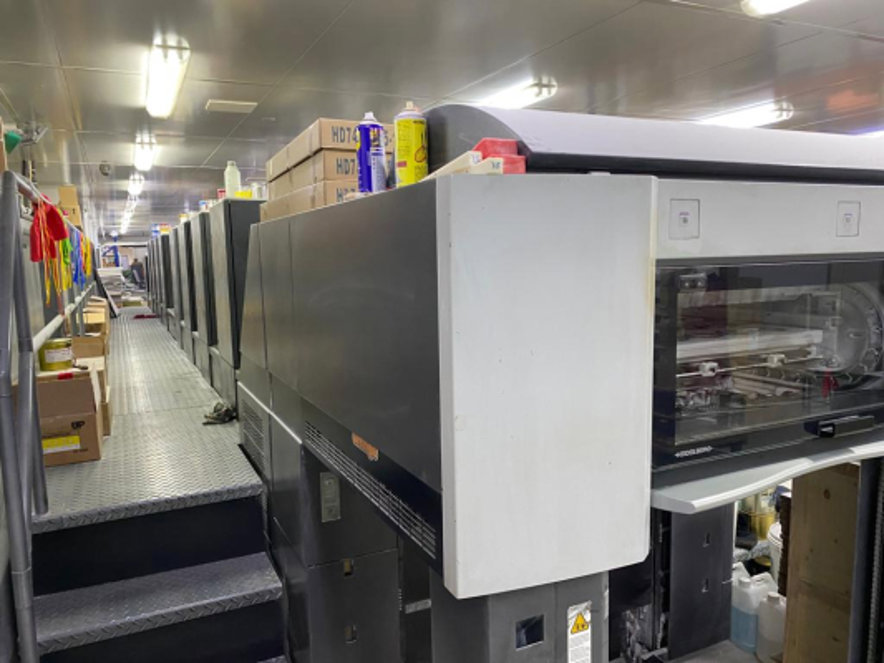

Heidelberg - XL 106 - 8P5

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg XL 106 - 8P5 has a length of 23.62 ft (7.2 m), a width of 10.17 ft (3.1 m), and a height of 8.2 ft (2.5 m). The machine weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size capacity of 29.92 x 41.73 in (760 x 1060 mm).

Paper Handling : The XL 106 - 8P5 features a high-capacity feeder with a maximum pile height of 31.5 in (800 mm) and a sheet size range of 11.81 x 16.54 in (300 x 420 mm) to 29.92 x 41.73 in (760 x 1060 mm). The machine is equipped with 8 printing units, each with a separate delivery system, and a maximum output of 18,000 sheets per hour.

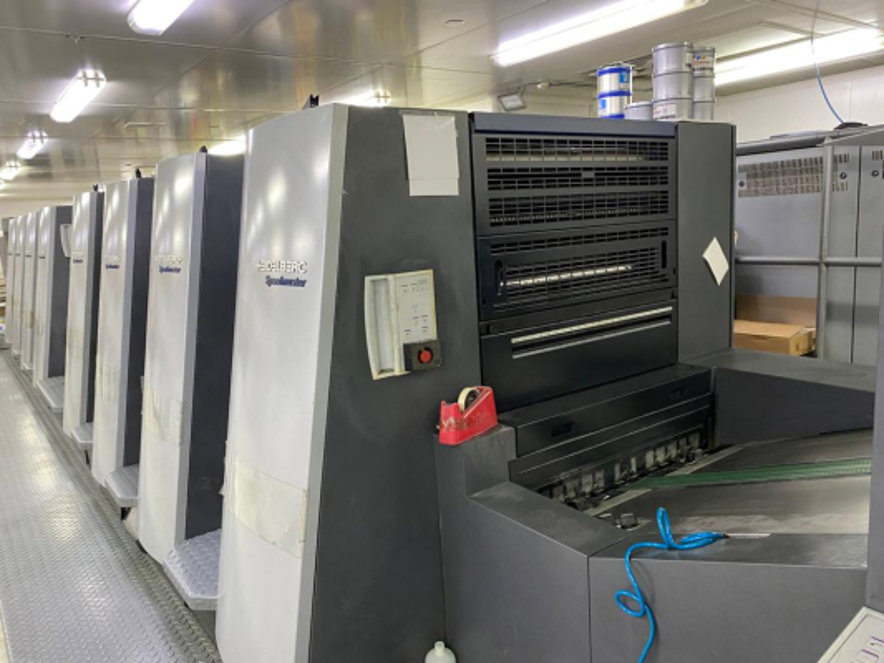

Printing Unit : The XL 106 - 8P5 features Heidelberg's advanced printing technology, with a maximum printing speed of 18,000 sheets per hour and a resolution of 300 lpi. The machine uses a triple-diameter impression cylinder and a transfer cylinder with a diameter of 106 cm.

Ink System : The XL 106 - 8P5 uses a high-performance, alcohol-reduced dampening system with a maximum ink flow rate of 120 kg/h. The machine is equipped with 8 ink zones, each with a capacity of 20 kg, and features an automatic ink supply system.

Plate Cylinder : The plate cylinder of the XL 106 - 8P5 has a diameter of 106 cm and is designed for high-speed printing. The machine features an automatic plate changing system, allowing for fast and efficient plate changes.
