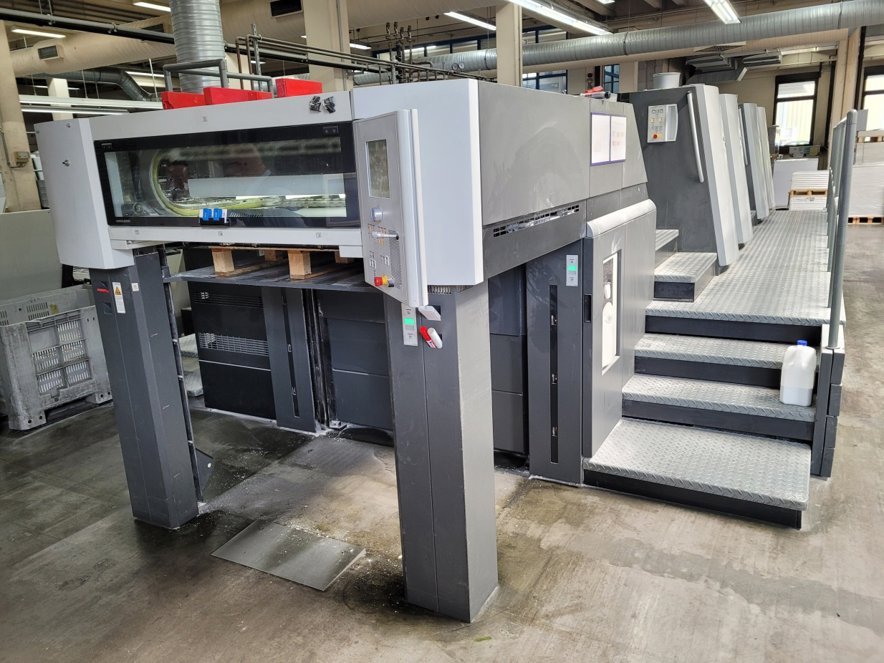

Heidelberg - XL 105-4 P

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg XL 105-4 P has a length of 23.62 ft (7.2 m), a width of 10.17 ft (3.1 m), and a height of 8.2 ft (2.5 m). It weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size of 29.53 x 41.34 in (750 x 1050 mm).

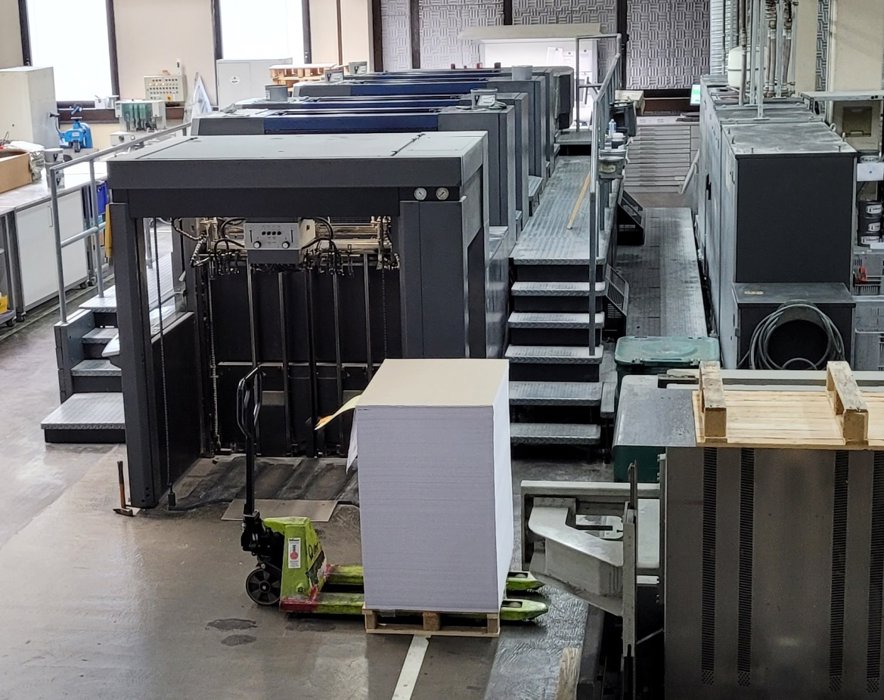

Paper Handling : The XL 105-4 P features a high-capacity feeder with a maximum pile height of 31.5 in (800 mm) and a sheet thickness range of 0.06-0.79 mm. The machine is equipped with a dual-circuit sheet guiding system, ensuring precise sheet alignment and registration. The delivery system features a high-pile delivery with a maximum pile height of 31.5 in (800 mm) and a sheet ejection system for efficient sheet removal.

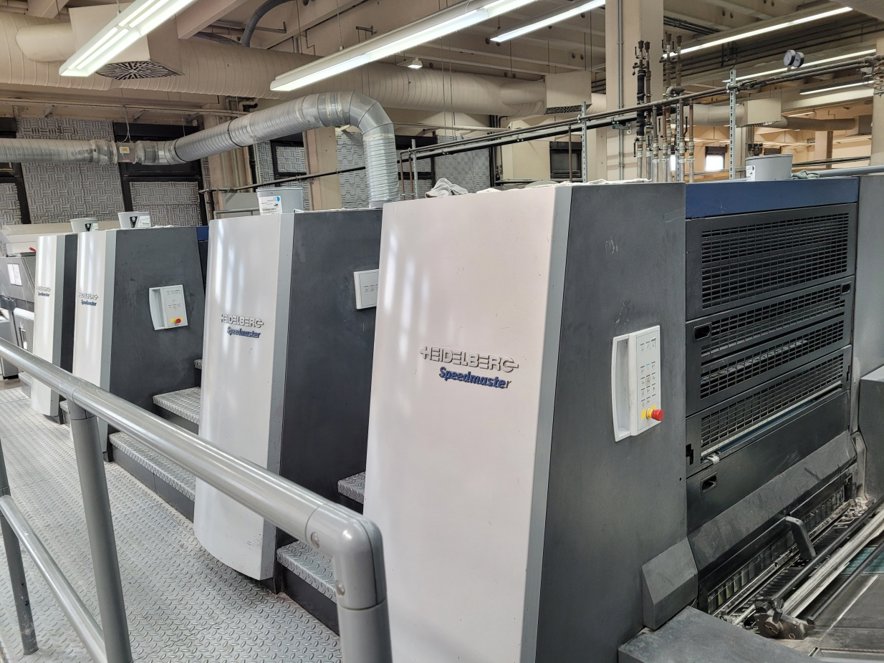

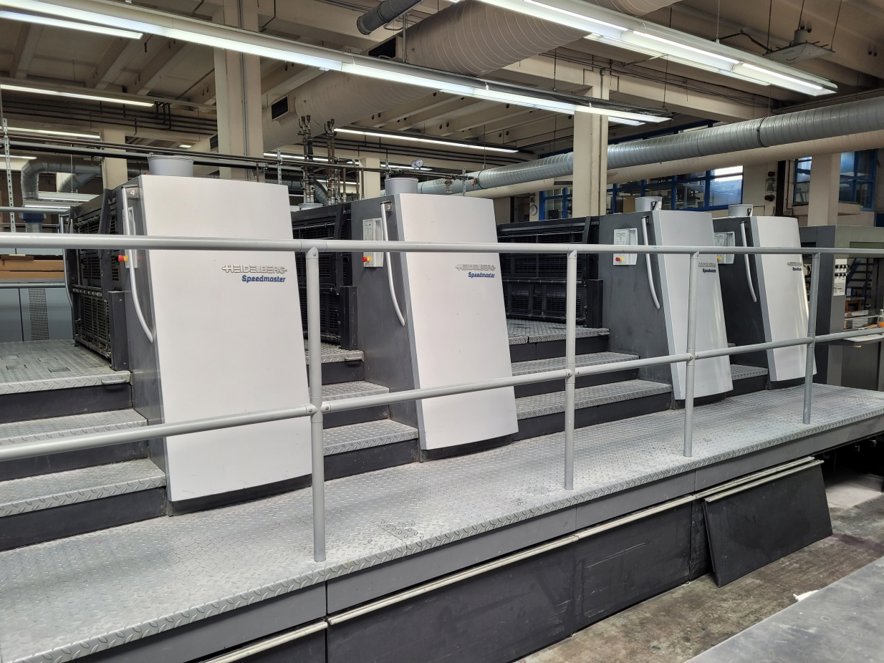

Printing Unit : The XL 105-4 P has a maximum printing speed of 18,000 sheets per hour and a print resolution of 2540 dpi. The machine uses a conventional offset printing process with a maximum printing area of 29.53 x 41.34 in (750 x 1050 mm). The printing unit features a four-color configuration with a maximum ink transfer rate of 1.2 mm.

Ink System : The XL 105-4 P uses a conventional offset ink system with a maximum ink volume of 20 kg per color. The machine features an ink train temperature control system, ensuring consistent ink viscosity and optimal print quality.

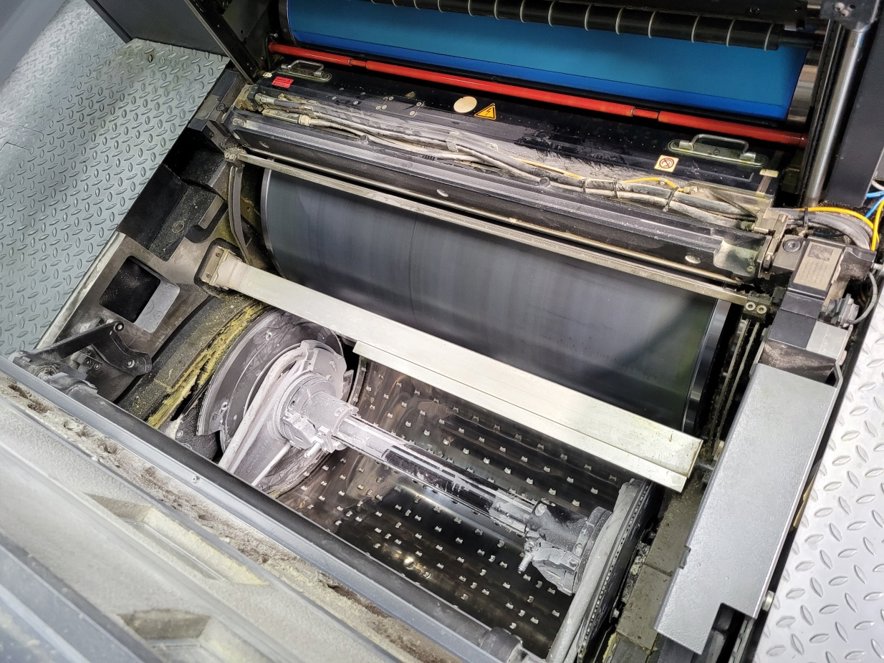

Plate Cylinder : The plate cylinder has a diameter of 4.33 ft (1.32 m) and a circumference of 13.62 ft (4.15 m). The cylinder features a quick-change plate system, allowing for fast and efficient plate changes. The plate cylinder is designed for precise plate registration and consistent print quality.
