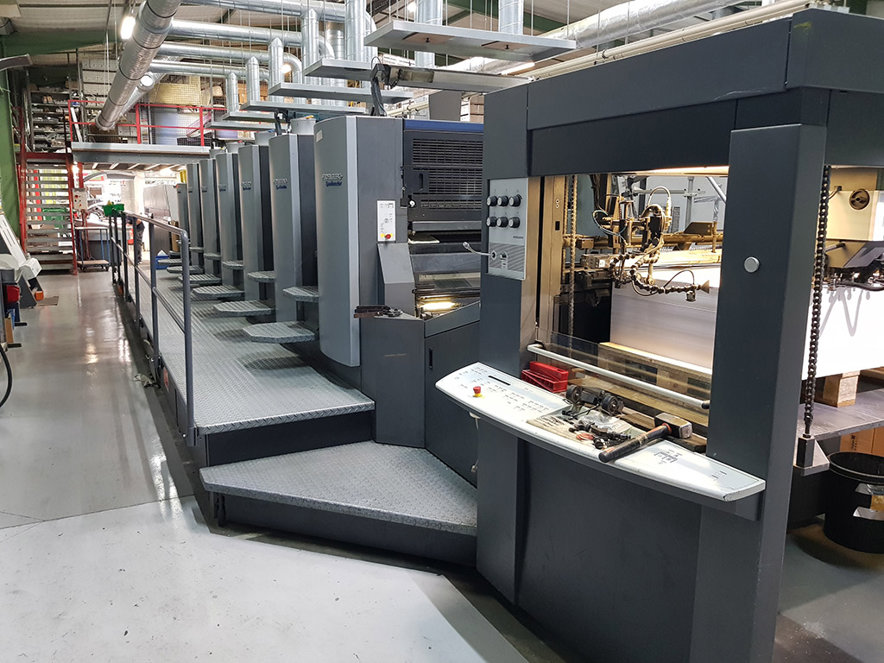

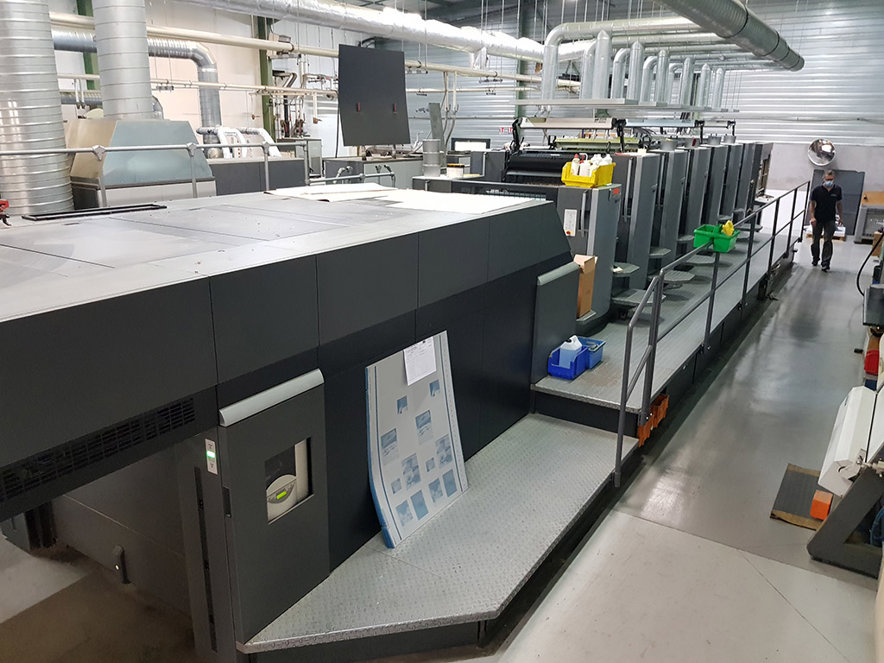

Heidelberg - Speedmaster SM CD 102-6 LX

Sheet Fed / Offset Heidelberg Speedmaster SM CD 102-6 LX
Sheet Fed / Offset Heidelberg Speedmaster SM CD 102-6 LX
Sheet Fed / Offset Heidelberg Speedmaster SM CD 102-6 LX

Machine Specification

FeaturesValue
Number of colours6
Max sheet size28.35X40.16 inch | 72x102 cm

Machine Description

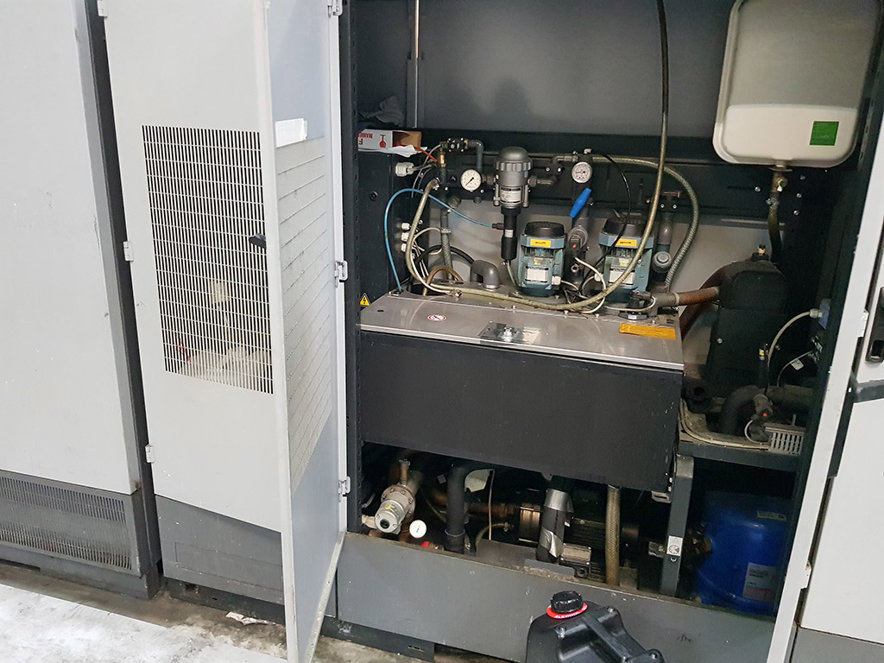

Equipment: Preset Plus Feeder and Preset Plus Delivery - Extended Delivery (X3) - CP 2000 Master Level, Instant Start & Instant Gate - Color Measurement X-Rite IntelliTrax2 Automated Scanning System - AUTO PLATE (Automatic Plate Change) - PRESET (automatic Size Setting) - ALCOLOR dampening with Vario - Technotrans CombiStar Central Refrigeration (for dampening and ink temperature control) water-cooled - 108 million impression count.

ModelHeidelberg-Speedmaster SM CD 102-6 LX
ManufacturerHeidelberg
Year2007
Machine AvailabilityImmediately
Machine ConditionExcellent
PriceOn Request
LocationEurope

Special Features

  • Autoplate
  • Coating
  • UV Dryer

About Heidelberg - Speedmaster SM CD 102-6 LX

The Heidelberg Speedmaster SM CD 102-6 LX is a high-performance sheet-fed offset printing press designed for commercial and packaging printing applications. This machine is part of the Speedmaster series, known for its exceptional print quality, reliability, and versatility. The SM CD 102-6 LX is ideal for printing high-volume jobs with complex finishing requirements, offering a range of benefits including fast turnaround times, reduced waste, and improved productivity. Typical applications include printing of brochures, catalogs, labels, and packaging materials.

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM CD 102-6 LX has a length of 23.62 ft (7.2 m), a width of 10.17 ft (3.1 m), and a height of 7.38 ft (2.25 m). The machine weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size capacity of 28.35 x 40.16 in (720 x 1020 mm).

Paper Handling : The SM CD 102-6 LX features a high-capacity feeder with a maximum pile height of 31.5 in (800 mm) and a sheet size range of 11.81 x 15.75 in (300 x 400 mm) to 28.35 x 40.16 in (720 x 1020 mm). The machine is equipped with six printing units, each with a separate delivery system, and a maximum output of 15,000 sheets per hour.

Printing Unit : The printing unit of the SM CD 102-6 LX features a maximum print speed of 15,000 sheets per hour, with a resolution of 1,800 dpi. The machine uses a conventional offset printing process with a maximum printing pressure of 4,500 N/cm² (6,500 lbf/in²).

Ink System : The SM CD 102-6 LX uses a conventional offset ink system with a maximum ink flow rate of 1,200 ml/min. The machine is equipped with a six-color ink system, with each unit having a separate ink fountain and a maximum ink capacity of 12 kg (26.4 lbs).

Plate Cylinder : The plate cylinder of the SM CD 102-6 LX has a diameter of 4.33 ft (1.32 m) and a circumference of 13.62 ft (4.15 m). The machine features a plate changing system with a maximum plate size of 28.35 x 40.16 in (720 x 1020 mm) and a minimum plate size of 11.81 x 15.75 in (300 x 400 mm).
