Machine Specification
| Features | Value |
|---|---|
| Number of colours | 6 |
| Max sheet size | 27.8X39.4 inch | 70.7X100 cm |
Machine Description

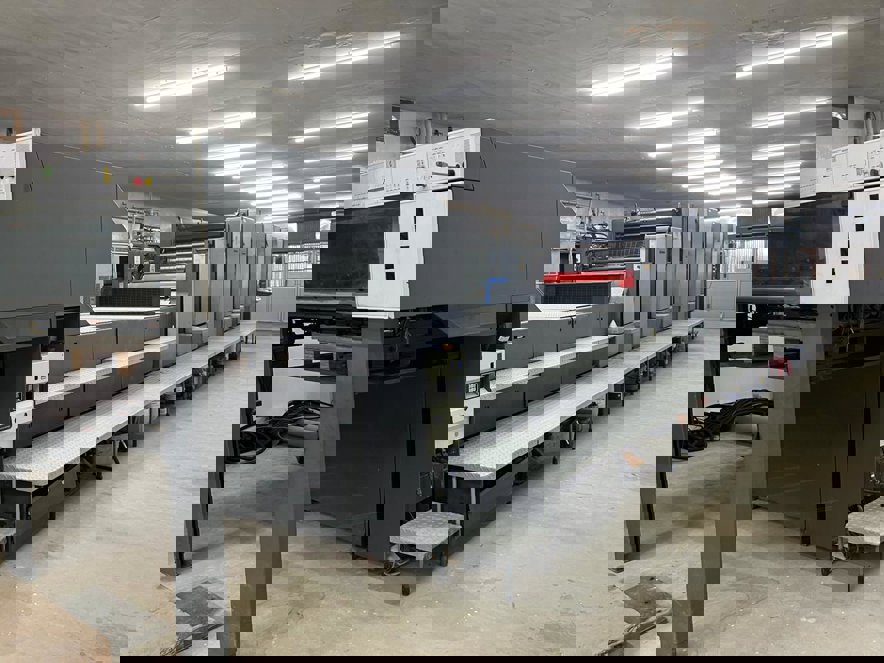

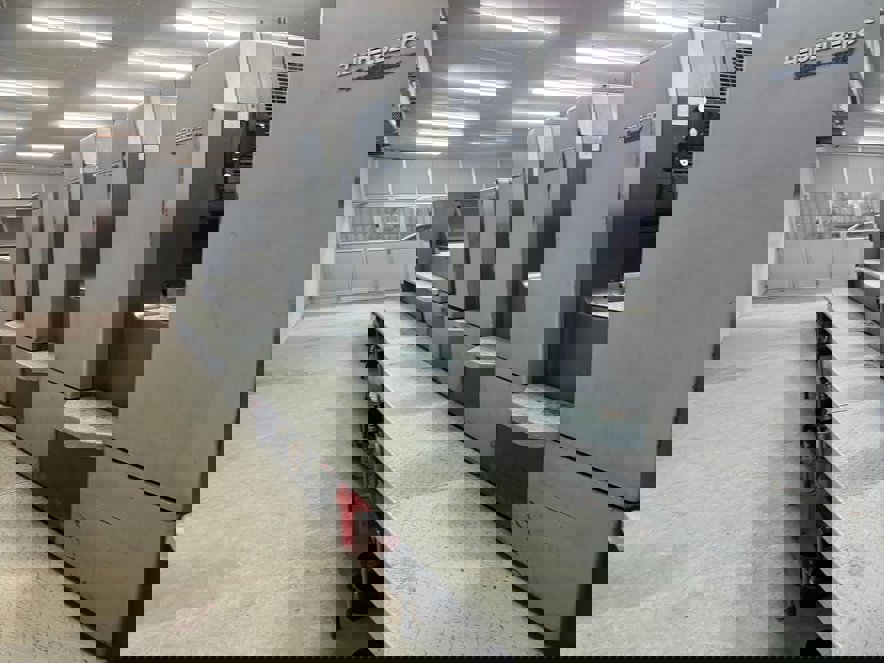

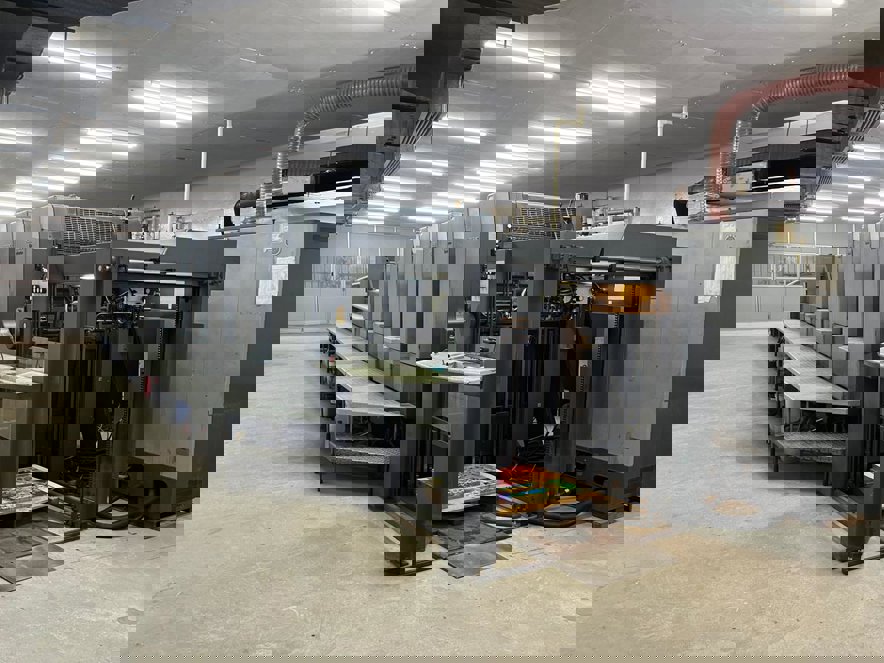

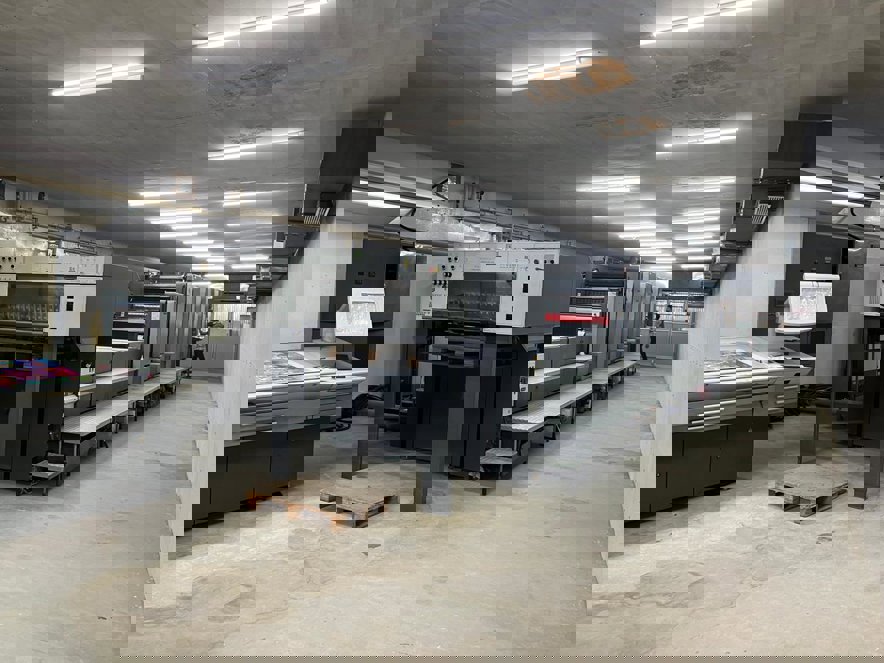

HEIDELBERG CD102-6L.
- 6 Printing Units + 1 Coating Unit.
- Year – 2000.
- Impressions 210 million (Now counter is showing 0).
- Straight Printing Press.
.
TECHNICAL SPECIFICATION.
- Speed 15.000 sheet/h.
- Max paper size 720 x 1020 mm (28” x40”).
- Printable Stock Thickness – 0.03mm – 0.8mm.
.
PRESS CONFIGURATION / FEATURES INCLUDED.
.
1. PRESS CONTROL.

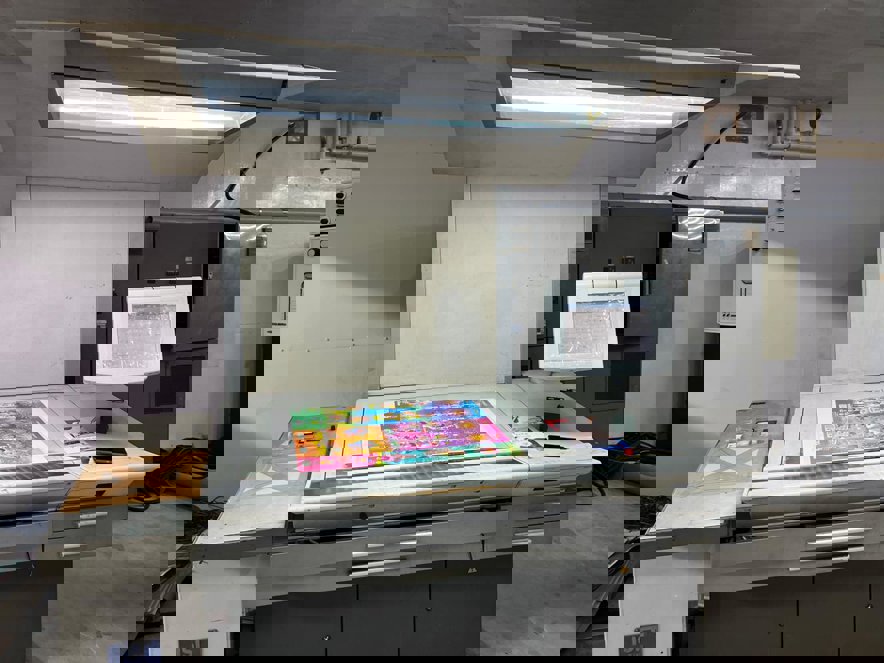

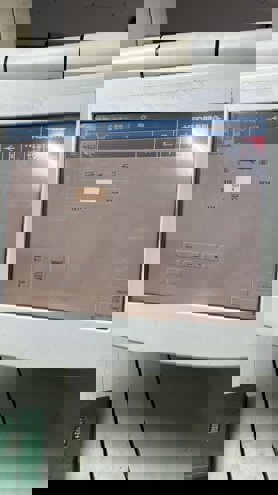

- CP 2000 centre with touch screen.
- Remote ink control with main and fine ink display.
- Remote register control (Diagonal, Lateral and Circumferential).
- Remote Pressure control.
- CIP3 Connectivity Support.
- Job saving and memory Management.
- Service Diagnosis.
- Day light illuminator and cassette or memory card for job memories.
- Sample sheer holder.
.
2. FEEDER UNIT.
- Preset Feeder.
- Stream feeder.
- Non-Stop feeder with ramps.
- Display for monitoring sheet travel.
- Automatic Format setting.
- Stream feeder with belt.
- Electronic double sheet detection.
- Electro mechanic double sheet detection.
- Electronic side lay control,.
- Anti-static on feeder.
- Automatic sheet arrival control.
- Automatic Front lay control.
- With sheet deposit on the feeder.
- Rear edge blowers.
.

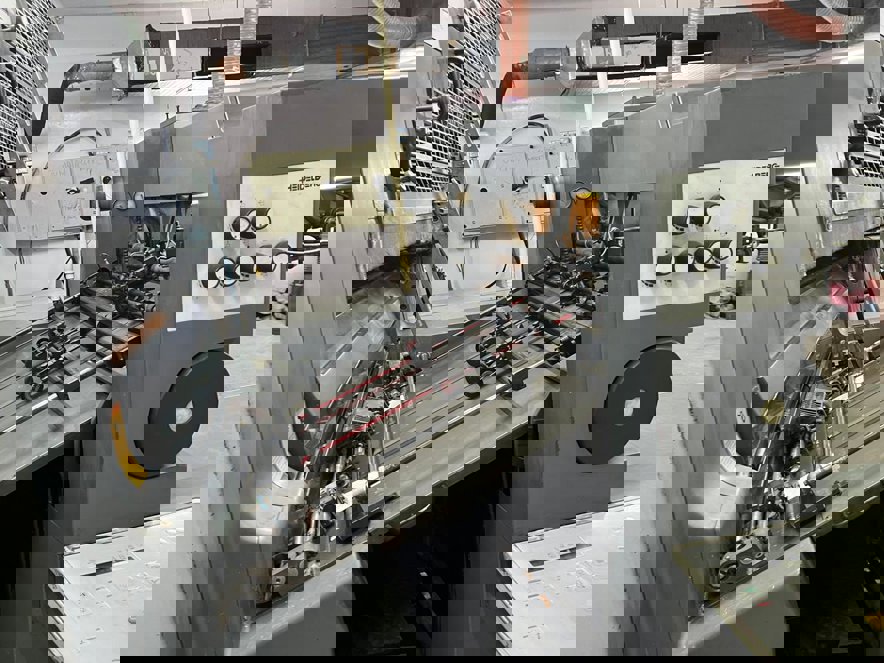

3. PRINTING UNIT.
- Auto Plate with 0.15mm under cut.
- 3 IST UV lamps + 3 End of press.
- Trible Diameter transfer cylinders.
- Double Diameter impression cylinders.
.
- Chrome Cylinders.
- Steel Grippers.
- Air control between cylinders to ensure smooth sheet travel.
- Blanket cylinder for mounting blanket with metal edged.
- Plate cylinder circumferential adjustment.
- Auto blanket wash with programmable system.
- Remote Oscillation roller timing adjustment for gripper to tail colour variation.
- Alcolor dampening system with Vario system.
- Technotrans with Combination device – Alcohol Free.
.

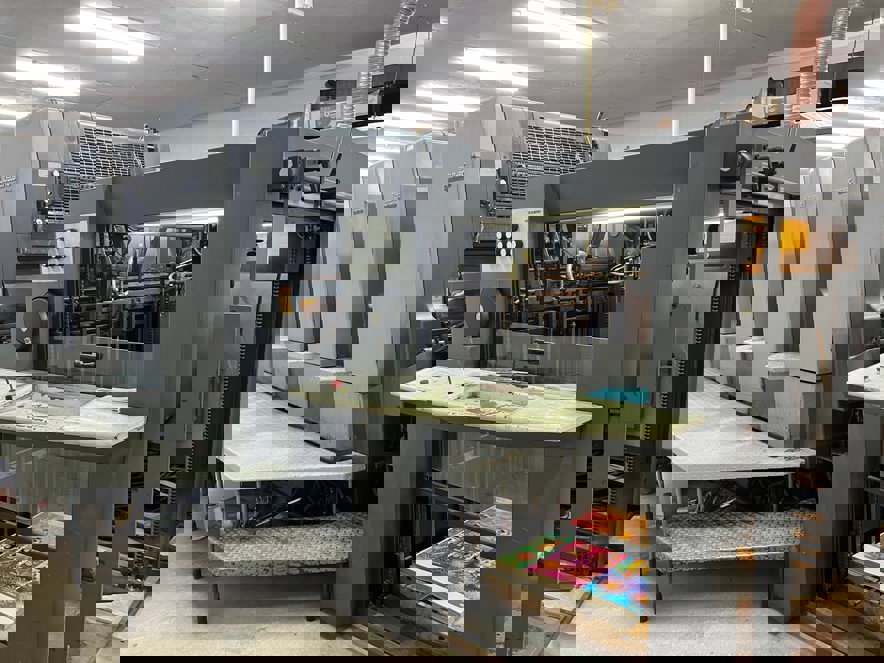

4. DELIVERY UNIT.
- Preset Delivery.
- Extended delivery – X3.
- High Pile Delivery.
- Preset Delivery control.
- Preset Format setting.
- Powder spray system.
- Sheet de-curler.
- Air blower control.
- Delivery fans to ensure proper filing.
- Sheet guidance with cooled guide plate.
- Sheet slow down device with 10mm suction drum.
- Narrow supporting roller between the suction rollers.
.
5. COATING UNIT.
- Two roller coating system with chambered blade.
- Varnish supply unit.
.
6. PERIPHERAL DEVICES.
- Technotrans Water circulation system.
- Water cooled version.
- Grafix IR Dryer cabinet.
- IR Lamp.
- Centralised Electric Control Panel.
- Air supply cabinet.
- Pneumatic Compressor – centralized and is not available with machine.
- Plate punch and bending devices.
- Oil drip pan.
- Standard tools and accessories.
.
7. GENERAL AND COMMERCIAL INFORMATION.
- Current Status - In Production.
- Machine Inspection - Possible.
- Available - Immediately.
- Available from - India.
- Cylinders - With some repaired marks.
- Price - On Request.
- Incoterms - LOT.
- General Conditions - Good...
The Heidelberg Speedmaster SM CD 102-6 LX is a high-performance sheet-fed offset printing press designed for commercial printing applications. This 6-color plus coating unit machine offers exceptional print quality, productivity, and automation features. With its advanced CP 2000 control system, precise registration capabilities, and versatile paper handling, it is ideal for producing high-volume commercial print jobs including brochures, catalogs, packaging, and promotional materials. The press combines Heidelberg's renowned engineering with modern automation to deliver consistent results at speeds up to 15,000 sheets per hour.
Key Technical Aspects:
Dimensions and Specifications : Maximum paper size of 720 x 1020 mm (28" x 40"), supporting stock thickness from 0.03mm to 0.8mm. Production speed of 15,000 sheets per hour with a total impression count of 210 million (current counter reset to 0). Manufactured in 2000 with 6 printing units plus 1 coating unit in straight press configuration.
Paper Handling : Features preset feeder with stream feeding system, non-stop feeder with ramps, and automatic format setting. Includes electronic and electro-mechanic double sheet detection, electronic side lay control, automatic sheet arrival and front lay control, with anti-static system on feeder. Delivery unit features high pile delivery with extended delivery (X3), powder spray system, sheet de-curler, and cooled guide plate for proper sheet filing.
Printing Unit : Equipped with triple diameter transfer cylinders and double diameter impression cylinders with chrome surfaces and steel grippers. Features automatic plate changing with 0.15mm undercut, remote oscillation roller timing adjustment, and Alcolor dampening system with Vario system for alcohol-free operation. Includes automatic blanket wash system, air control between cylinders, and Technotrans water circulation system with water-cooled version.
Plate Cylinder : Features automatic plate changing system with 0.15mm undercut, circumferential adjustment capability, and remote register control for diagonal, lateral, and circumferential adjustments. Includes CIP3 connectivity support and job memory management through CP 2000 control center with touch screen interface.
| Model | Heidelberg-Speedmaster SM CD 102-6 LX |
|---|---|
| Reference Number | MCID_165 |
| Manufacturer | Heidelberg |
| Year | 2000 |
| Machine Availability | Immediately |
| Machine Condition | In Production |
| Price | On Request |
| Location | 2JX9+4V Xiazang Town, Gadê County, Golog Tibetan Autonomous Prefecture, Qinghai, China |
