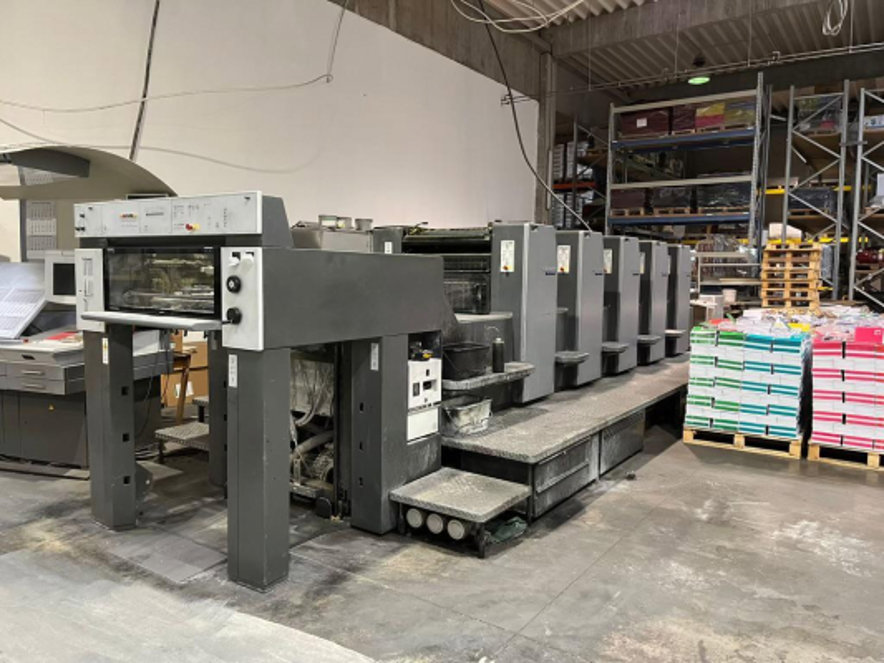

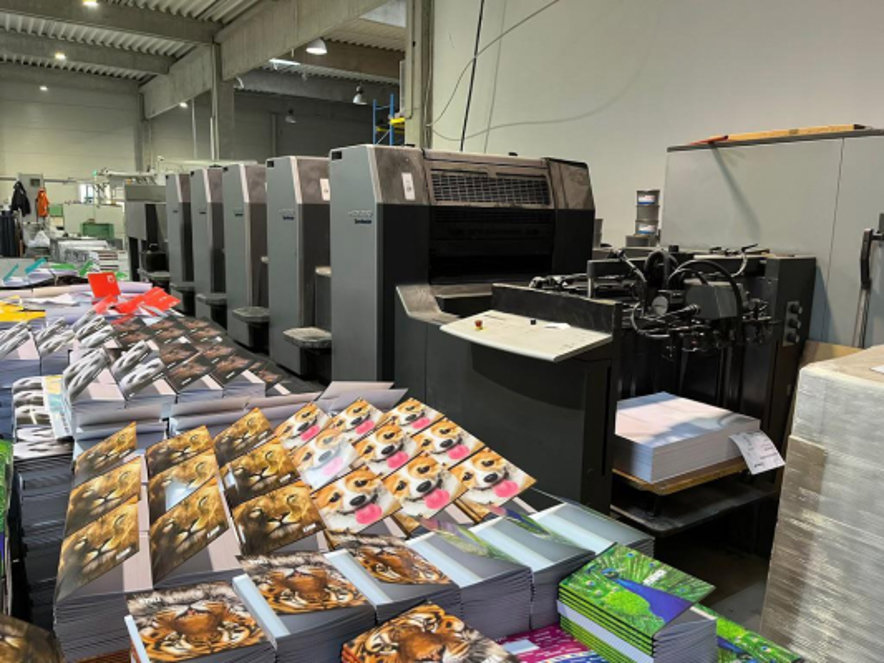

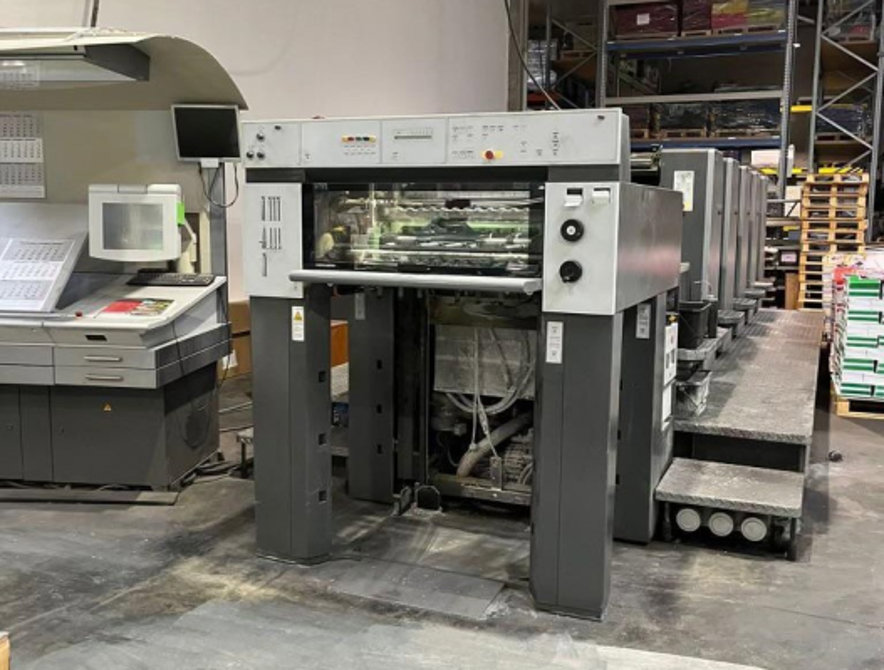

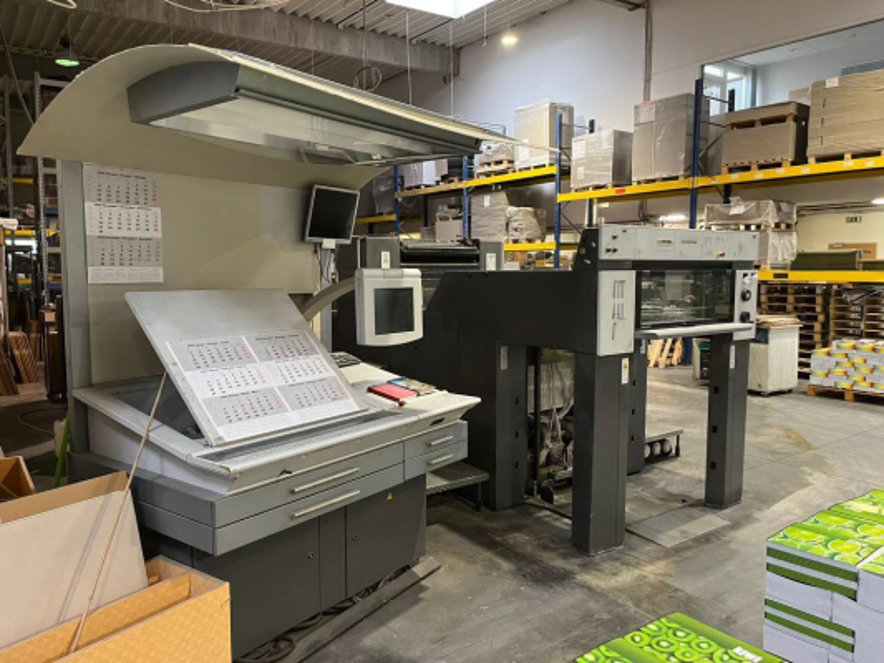

Heidelberg - Speedmaster SM 74-5 P3H

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM 74-5 P3H has a length of 23.62 ft (7.2 m), a width of 10.17 ft (3.1 m), and a height of 7.38 ft (2.25 m). It weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size of 20.47 x 29.53 in (520 x 750 mm).

Paper Handling : The SM 74-5 P3H features a high-capacity paper handling system, including a feeder with a capacity of up to 10,000 sheets, and a delivery with a capacity of up to 10,000 sheets. The machine is equipped with a Preset Plus feeder, which enables fast and precise sheet alignment, and a Sheetfed Plus delivery, which ensures gentle and precise sheet stacking.

Printing Unit : The printing unit of the SM 74-5 P3H is equipped with five printing units, each with a maximum printing speed of up to 15,000 sheets per hour. The machine features Heidelberg's renowned Gapless Transfer Technology, which ensures precise and consistent ink transfer, and a maximum printing resolution of 400 lpi (150 l/cm).

Ink System : The SM 74-5 P3H features a high-performance ink system, which includes a fountain solution supply system, an ink pumping system, and an ink distribution system. The machine uses a variety of inks, including conventional, UV, and special inks, and has an ink capacity of up to 20 kg (44 lbs) per unit.

Plate Cylinder : The plate cylinder of the SM 74-5 P3H has a diameter of 1.57 in (40 mm) and is designed for high-precision plate mounting. The machine features Heidelberg's patented Alcolor plate technology, which ensures fast and precise plate changing, and a maximum plate size of 20.47 x 29.53 in (520 x 750 mm).
