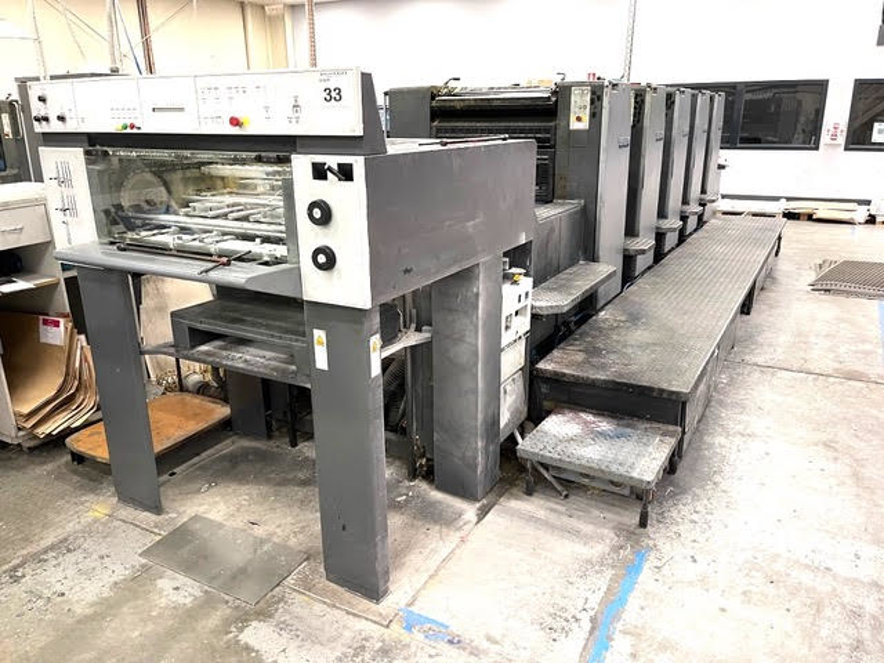

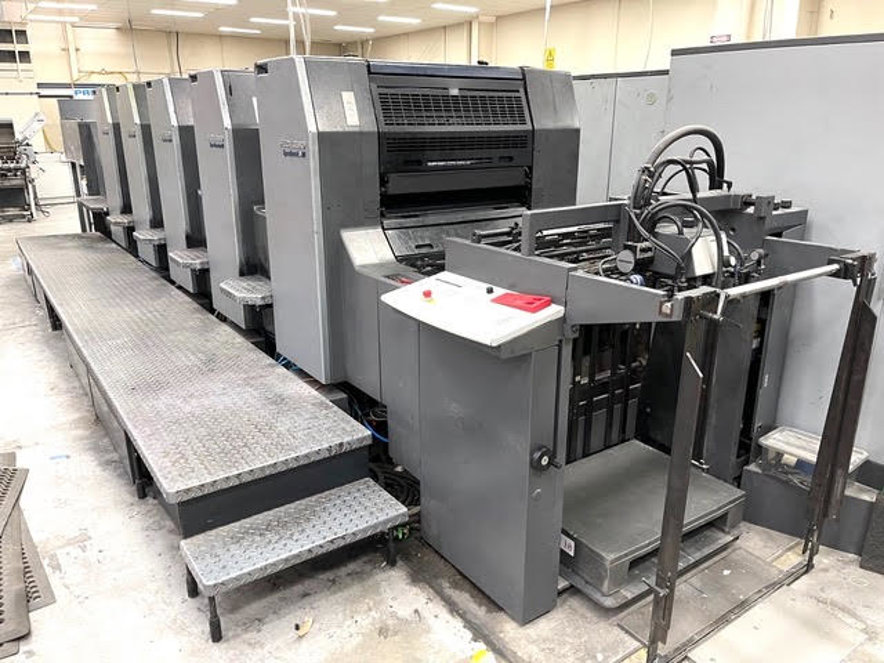

Heidelberg - Speedmaster SM 74-5 P

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM 74-5 P has a length of 7,340 mm, a width of 2,440 mm, and a height of 2,240 mm. It weighs approximately 12,000 kg and has a maximum sheet size of 740 x 1,040 mm. The machine has a capacity of up to 15,000 sheets per hour.

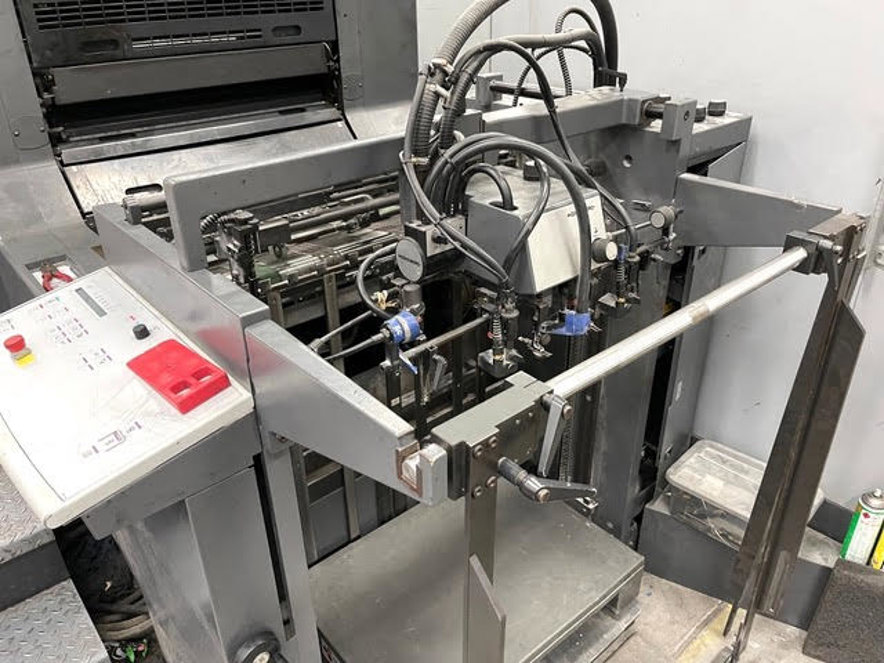

Paper Handling : The SM 74-5 P features a advanced paper handling system, including a feeder with a capacity of up to 5,000 sheets, and a delivery system with a capacity of up to 10,000 sheets. The machine is equipped with a sheet-reversing device, a sheet-turning device, and a pile-transport system.

Printing Unit : The printing unit of the SM 74-5 P features a maximum printing speed of 15,000 sheets per hour, with a resolution of up to 300 lpi. The machine uses a conventional offset printing process with a maximum printing pressure of 400 kN. The printing unit is equipped with a dampening system, an inking system, and a plate cylinder.

Ink System : The SM 74-5 P uses a conventional offset inking system, with a maximum ink flow rate of 1,200 ml/min. The machine is equipped with a ink fountain, an ink pump, and an ink distribution system.

Plate Cylinder : The plate cylinder of the SM 74-5 P has a diameter of 740 mm and a circumference of 2,310 mm. The plate cylinder is equipped with a plate clamping system, a plate changing system, and a plate cleaning system.
