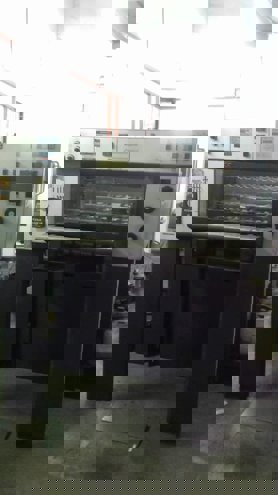

Heidelberg - Speedmaster SM 74-2 PH

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM 74-2 PH has a length of 6,350 mm, a width of 2,350 mm, and a height of 1,900 mm. It weighs approximately 12,000 kg and has a maximum sheet size of 530 x 740 mm. The machine's printing speed can reach up to 15,000 sheets per hour.

Paper Handling : The SM 74-2 PH features a advanced paper handling system, including a feeder with a capacity of up to 5,000 sheets, and a delivery system with a capacity of up to 10,000 sheets. The machine is equipped with a suction drum feeder, a sheet alignment system, and a sheet ejection system, ensuring precise and efficient paper handling.

Printing Unit : The printing unit of the SM 74-2 PH is equipped with two printing units, each with a maximum printing speed of 15,000 sheets per hour. The machine uses a conventional offset printing process with a maximum printing resolution of 400 lpi. The printing unit is designed for high-quality printing, with features such as automatic plate changing, and a precise registration control system.

Ink System : The SM 74-2 PH uses a conventional offset ink system, with a maximum ink capacity of 20 kg per color. The machine is equipped with a ink train system, which ensures consistent and precise ink transfer. The ink system also features an automatic ink supply system, and an ink temperature control system.

Plate Cylinder : The plate cylinder of the SM 74-2 PH has a diameter of 740 mm, and is designed for high-quality plate imaging. The machine features an automatic plate changing system, which allows for fast and efficient plate changes. The plate cylinder is also equipped with a precise registration control system, ensuring accurate and consistent printing.
