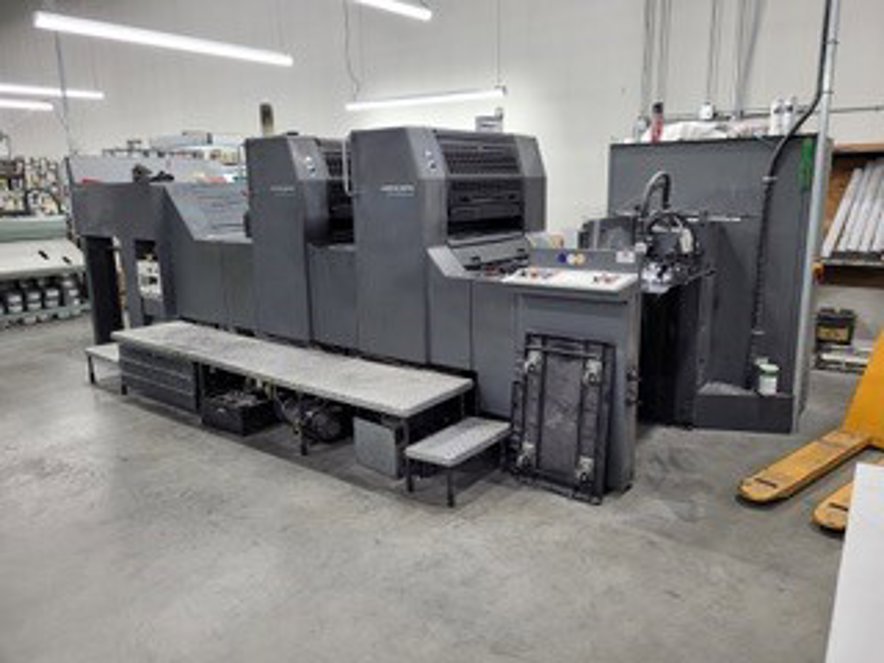

Heidelberg - Speedmaster SM 74-2 PH

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM 74-2 PH has a footprint of 13,780 mm x 2,440 mm x 2,440 mm (L x W x H) and weighs approximately 12,000 kg. It has a maximum sheet size of 530 mm x 740 mm and a minimum sheet size of 360 mm x 520 mm, with a maximum printing speed of 15,000 sheets per hour.

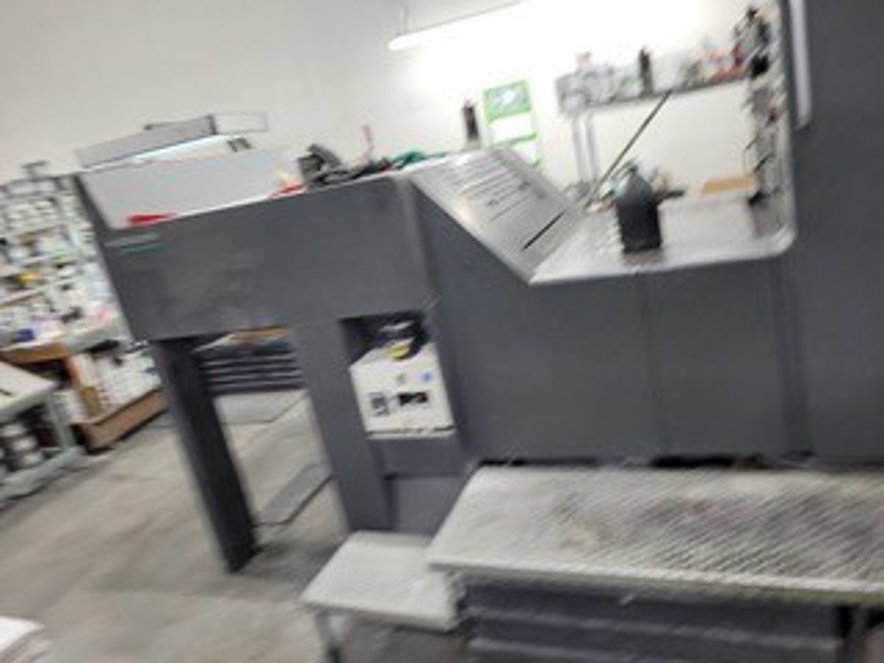

Paper Handling : The SM 74-2 PH features a high-capacity feeder with a maximum pile height of 1,200 mm, allowing for efficient and uninterrupted printing. The machine is equipped with a double-sheet detection system and an anti-marking system to prevent sheet-to-sheet marking. The delivery system features a high-pile stacker with a capacity of up to 1,500 mm, ensuring efficient and organized sheet collection.

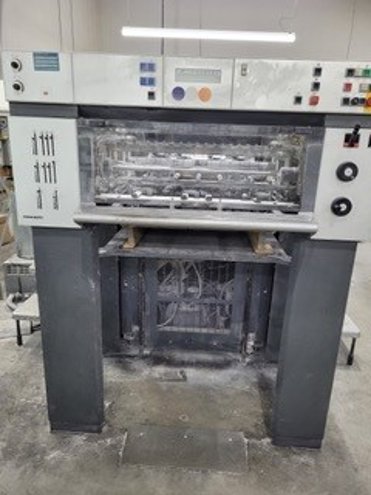

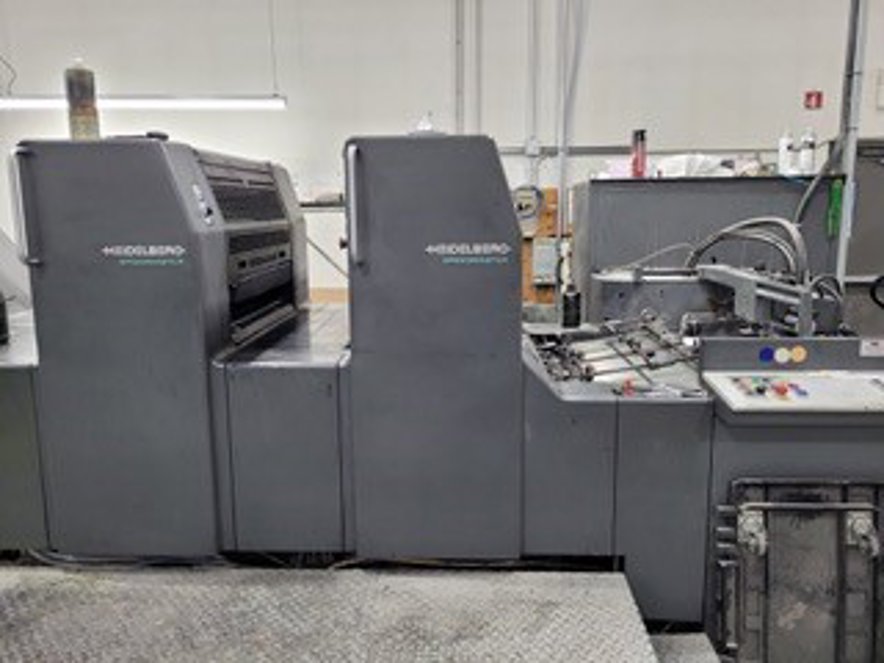

Printing Unit : The printing unit of the SM 74-2 PH is equipped with two printing units, each featuring a maximum printing speed of 15,000 sheets per hour. The machine uses a conventional offset printing process with a maximum printing resolution of 400 lpi. The printing units are equipped with advanced dampening and inking systems, ensuring consistent and high-quality print results.

Ink System : The SM 74-2 PH uses a conventional offset ink system with a maximum ink capacity of 20 kg per unit. The machine features an advanced ink train system with a three-roller inking system, ensuring consistent and even ink distribution.

Plate Cylinder : The plate cylinder of the SM 74-2 PH has a diameter of 740 mm and a circumference of 2,350 mm. The machine features a semi-automatic plate changing system, allowing for quick and efficient plate changes. The plate cylinder is designed for high-quality print reproduction, with a maximum plate resolution of 400 lpi.
