Machine Specification
| Features | Value |
|---|---|
| Number of colours | 2 |
| Max sheet size | 20.47X29.13 inch | 52x74 cm |
Machine Description
Dear Colleagues,.
.
we are pleased to offer you, subject to prior sale, the following machine:.
.

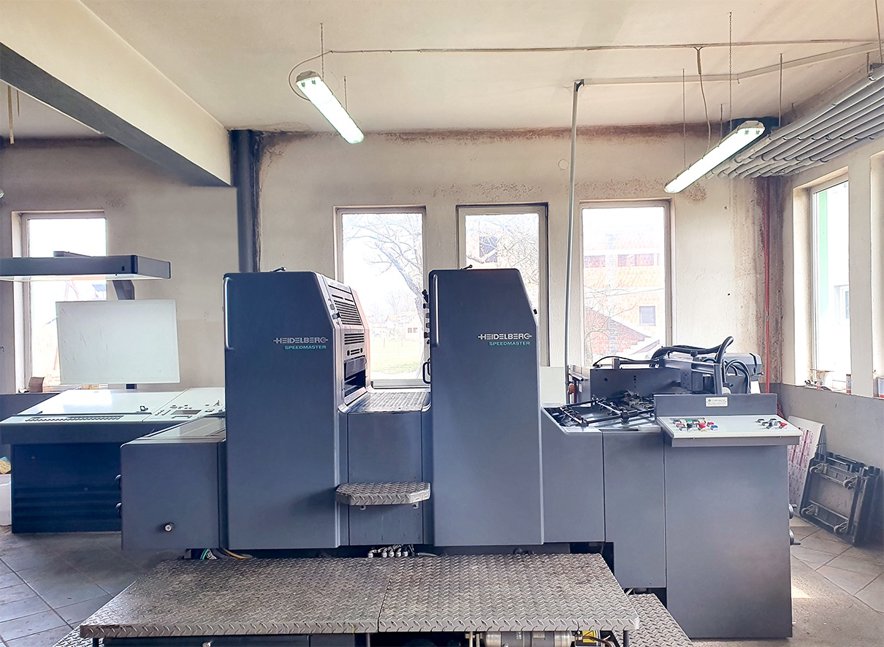

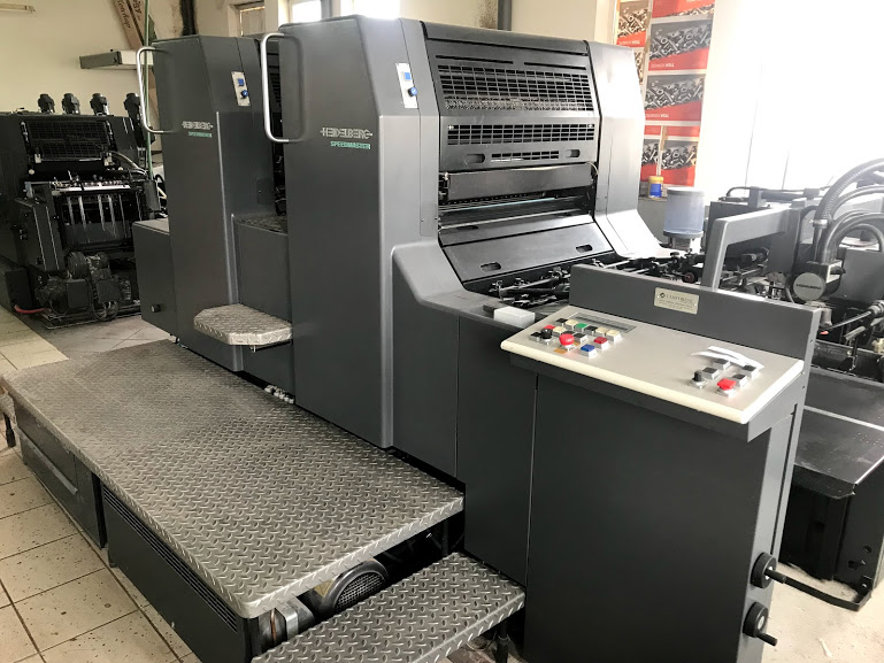

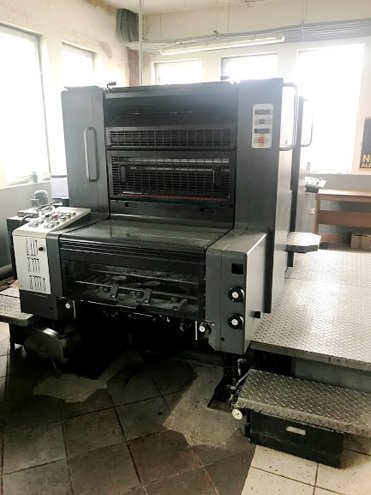

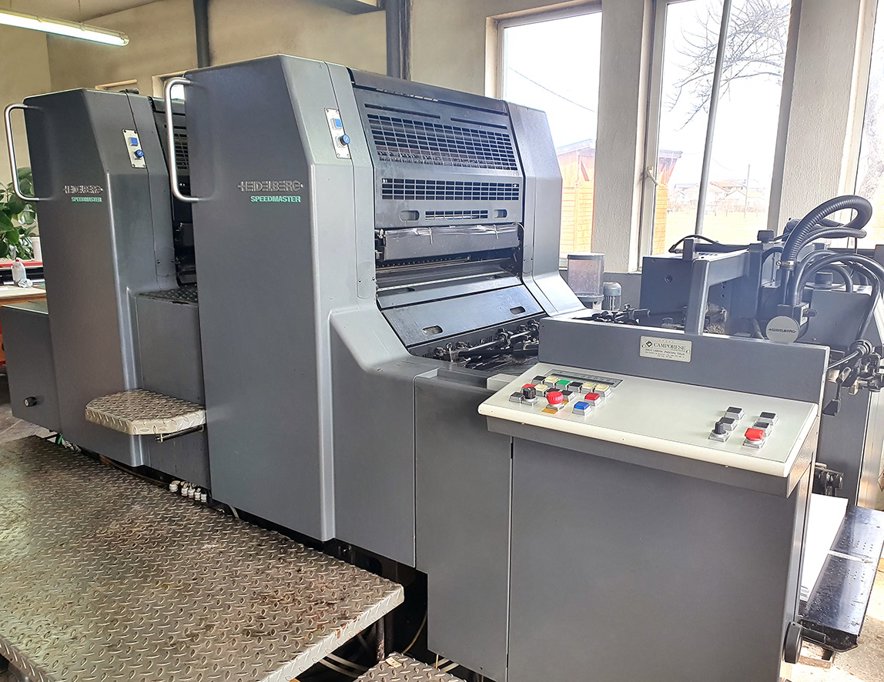

HEIDELBERG SM 74-2 .
Two-color offset machine, format B2 (20x28 inch; 520x740 mm). .

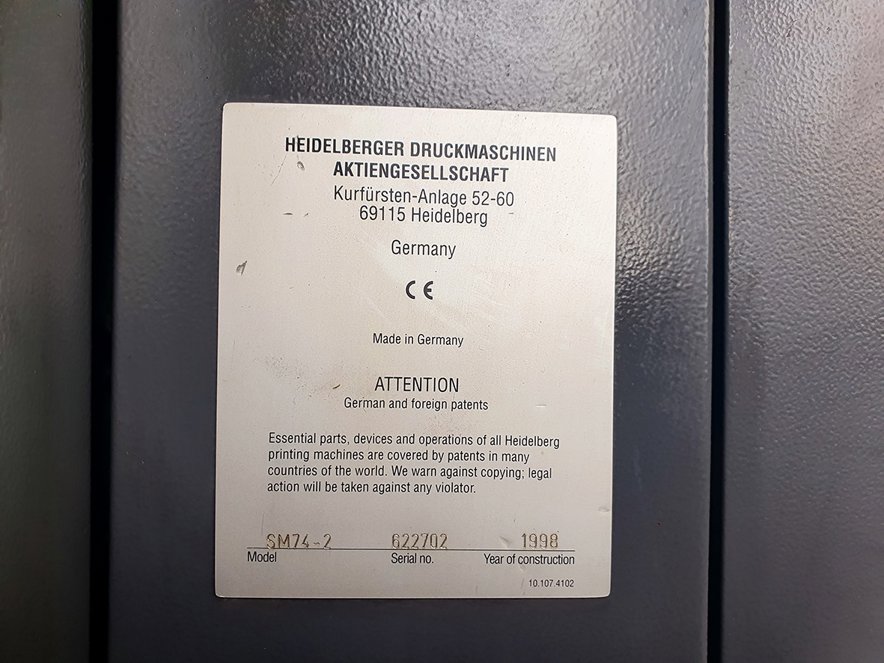

Year 1998, Serial 622.702.

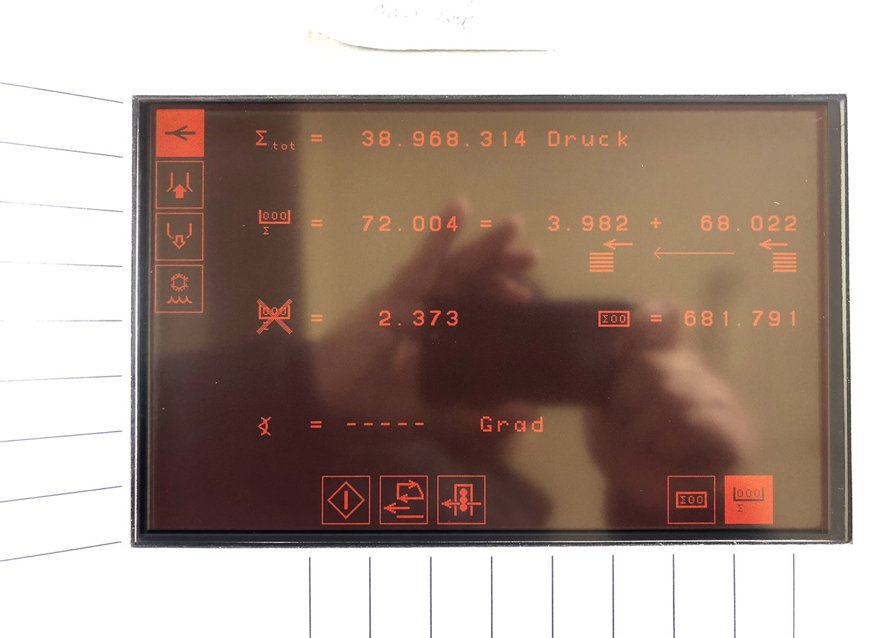

38 mio impressions.
Straight machine (2/0).
Accessories included :.

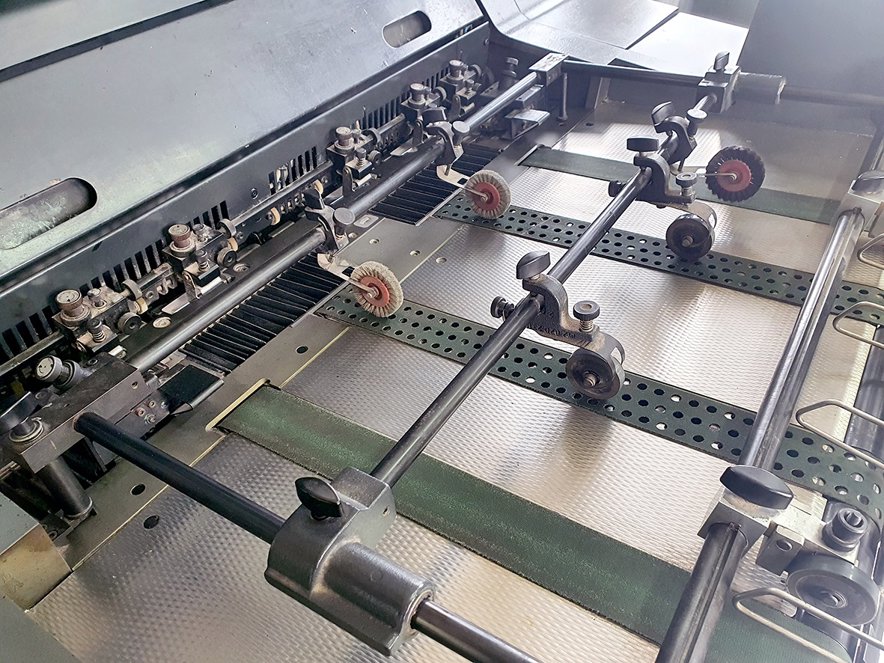

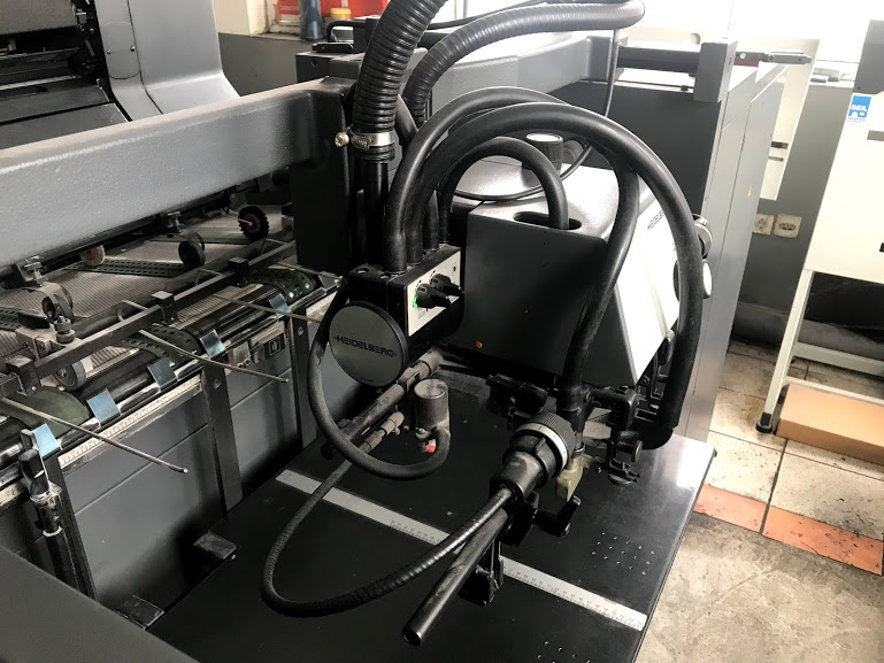

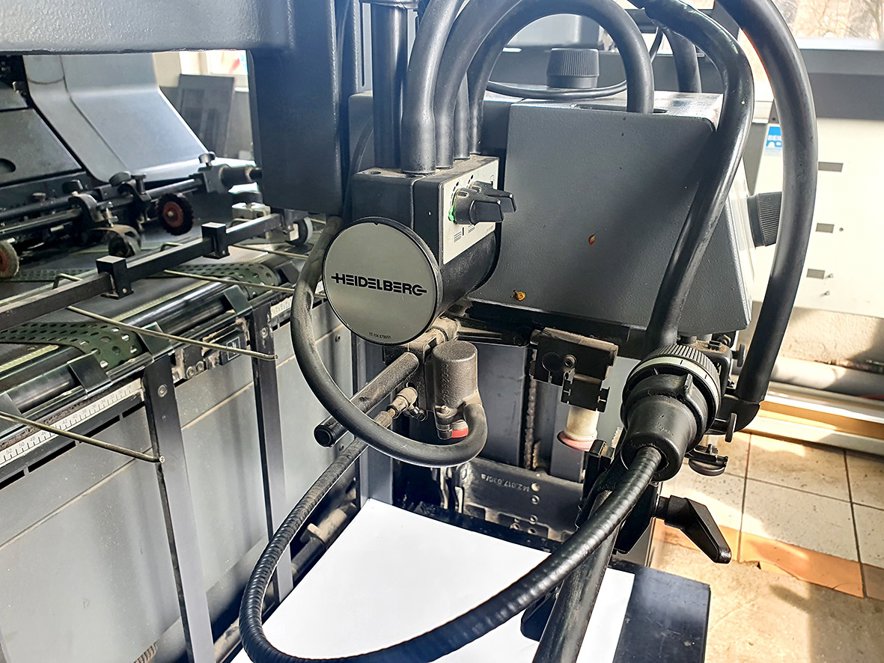

- Stream feeder .
- Double sheet detection - electric .
- Electronic side lays control.
- Eltex antistatic device.
- CPC 1.04 - Ink + axial, circumferential; diagonal remote control with electronic pen+cassette .

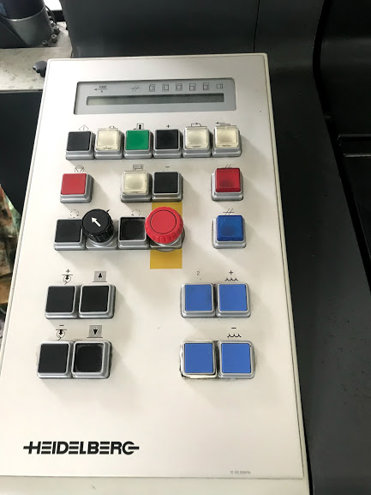

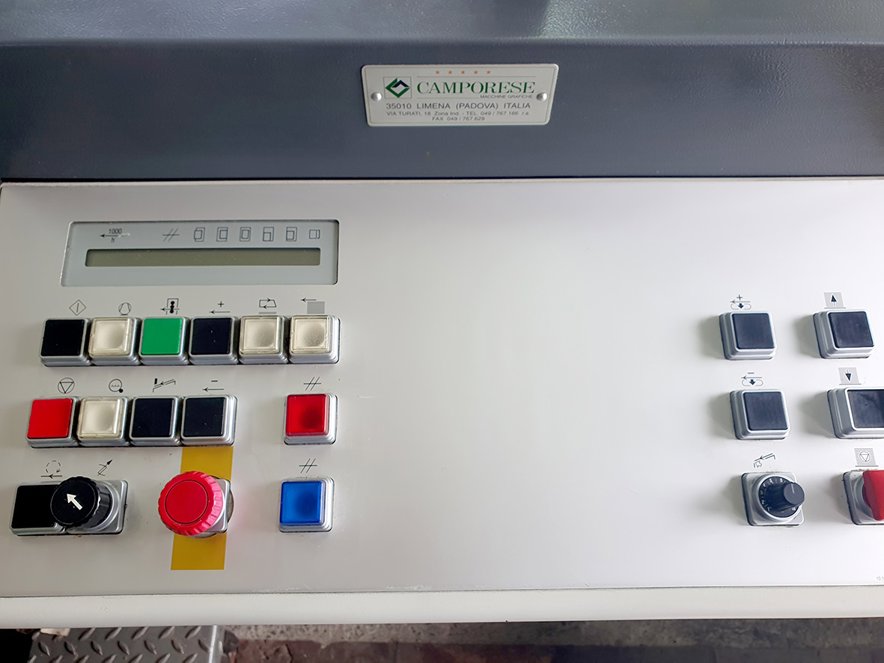

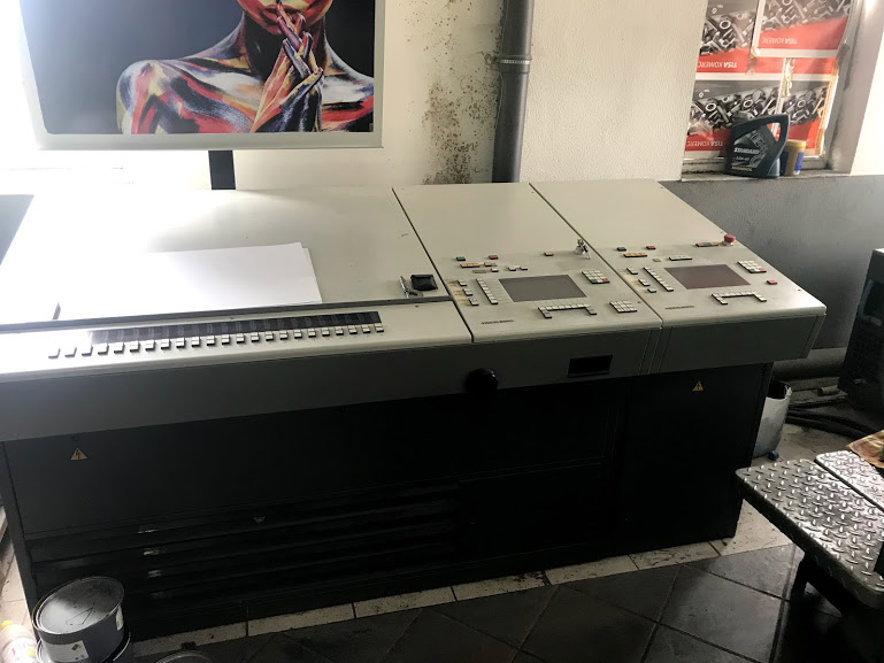

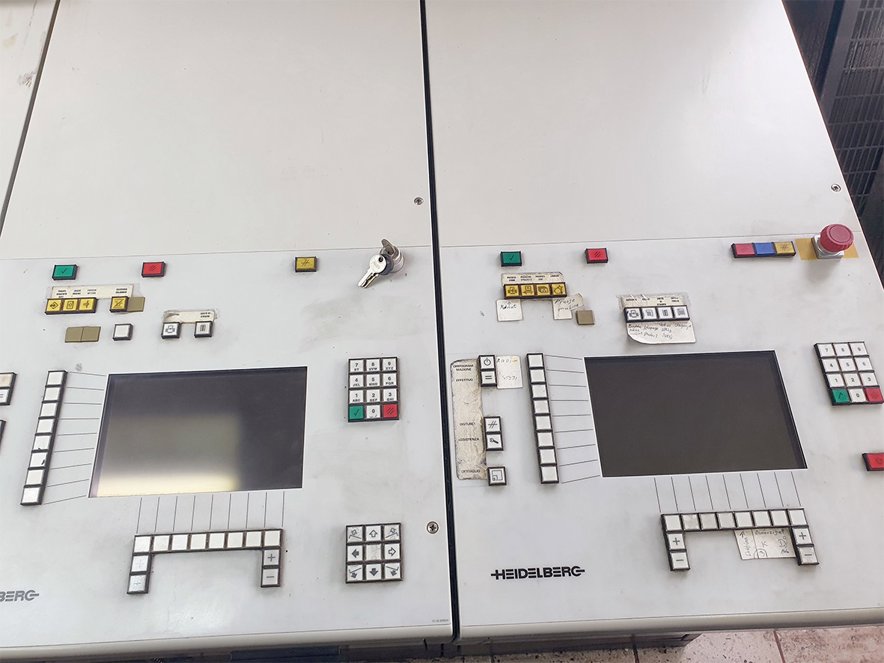

- CP Tronic - Digital machine control and diagnosis + axial; circumferential and diagonal register control).
- Autoplate (semi automatic plate loader) .
- Blanket washing device - automatic.
- Impression cylinder washing device - automatic .
- Ink-roller washing device - automatic .
- Preset feeder (autom. paper size setting) .
- Alcolor continuous dampening.

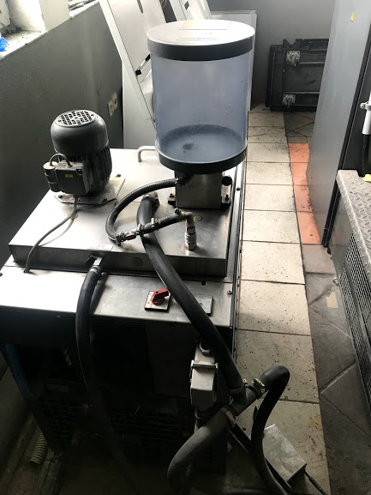

- Cooling and recirculation Technotrans .

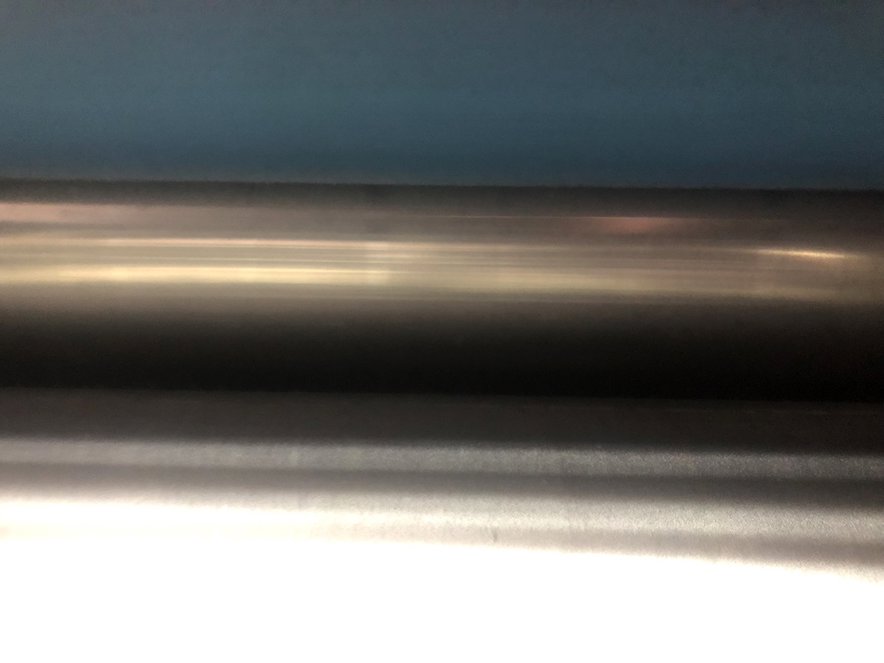

- Chromed impression cylinders.
- Chromed plate cylinders.
- Low-pile delivery .

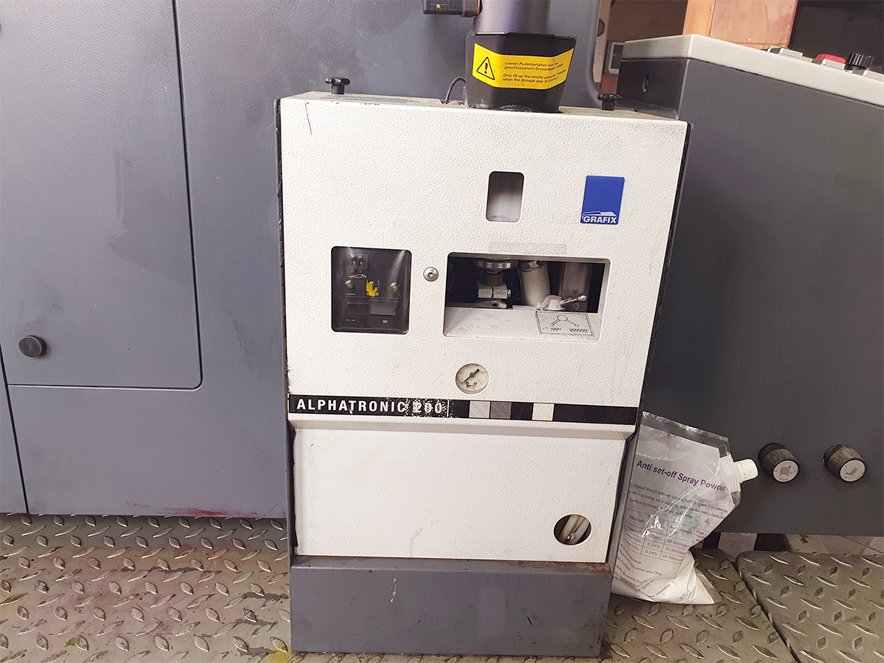

- Powder sprayer .
- Belonginig tools and documentations.
- Complete with all standard parts and accessories.

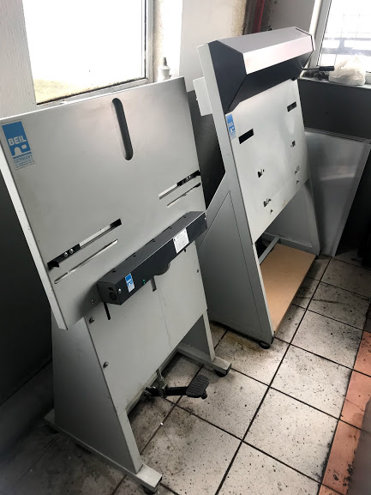

- Bender and punch plate „Beil“. .
No damage to cylinders and gears. In very good optical and technical condition..
In production, test in print run possible. .
Images available. Location Balkan. .
Price: 49.000 EUR LOT..
.
Technical features : .
Speed 15.000 copie/h.
Paper size max 520 x 740 mm .
Paper size min 210 x 280 mm .
Thickness max 0,03-0,6 mm.
Print size 510 x 740 mm.
Plate size 605 x 745 mm Thickness 0,30 mm.
Blanket size 772 x 627 mm Thickness 1,90 mm.
Dimensions :.
L. 3,6 mt..
P. 2,8 mt..
H.1,9 mt..
Power requirement Kw 29 circa .
Weigh 8.320 Kg. circa.
.
Machine comes out of a good print shop, is well-treated and ready for inspection. Available immediately. .
Hope this offer is of interest to you, look forward to hearing from you..
.
| Model | Heidelberg-Speedmaster SM 74-2 |
|---|---|
| Manufacturer | Heidelberg |
| Year | 1998 |
| Machine Availability | Immediately |
| Machine Condition | Excellent |
| Price | 49000.00 EURO |
| Location | Balkanska, Belgrade, Serbia |
Special Features
- Autoplate
- Computer Controls/ Digital Controls
About Heidelberg - Speedmaster SM 74-2
The Heidelberg Speedmaster SM 74-2 is a high-performance sheet-fed offset printing press designed for commercial and industrial printing applications. This machine is part of the Speedmaster series, known for its exceptional print quality, reliability, and versatility. The SM 74-2 is ideal for printing a wide range of materials, including paper, board, and plastics, and is commonly used in the production of brochures, flyers, business cards, and other commercial print products. Key features of this machine include its high-speed printing capabilities, advanced paper handling system, and precise registration control.
Key Technical Aspects:
Dimensions and Specifications : The Heidelberg Speedmaster SM 74-2 has a length of 6,350 mm, a width of 2,350 mm, and a height of 1,900 mm. It weighs approximately 4,500 kg and has a maximum sheet size of 530 x 740 mm.
Paper Handling : The SM 74-2 features a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet size range of 350 x 500 mm to 530 x 740 mm. The machine is equipped with a double-sheet detection system and an anti-static device to prevent sheet sticking. The delivery system has a maximum pile height of 1,500 mm and is equipped with a jogger and a pile transport system.

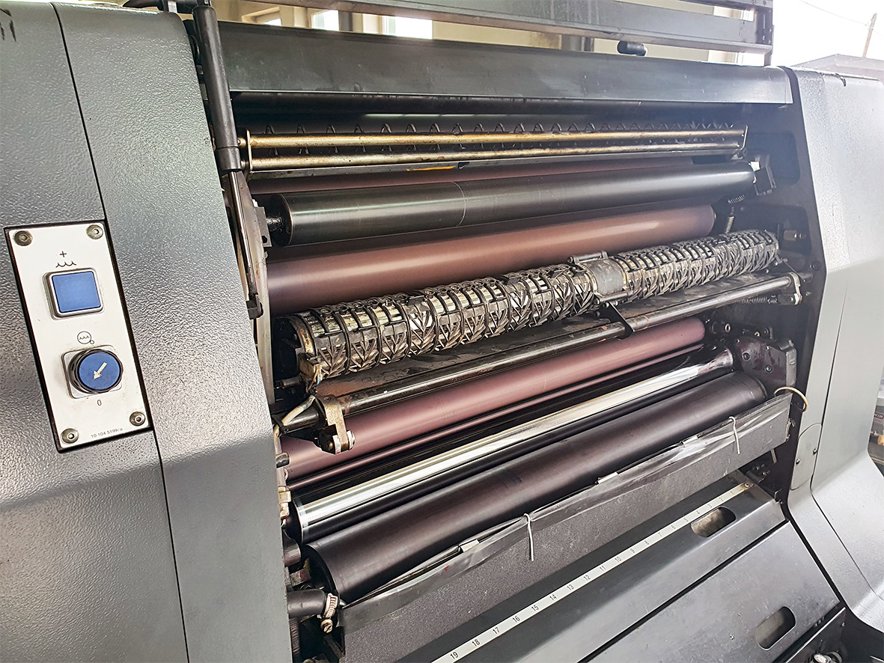

Printing Unit : The printing unit of the SM 74-2 features a maximum printing speed of 15,000 sheets per hour and a printing resolution of 400 lpi. The machine uses a conventional offset printing process with a maximum printing area of 520 x 730 mm. The inking system features a remote inking unit with a ink fountain and a dampening system.
Ink System : The SM 74-2 uses a conventional offset ink system with a maximum ink capacity of 20 kg. The machine features an ink fountain with a ink temperature control system and a dampening system with a maximum dampening solution capacity of 15 liters.
Plate Cylinder : The plate cylinder of the SM 74-2 has a diameter of 220 mm and a circumference of 690 mm. The machine features a plate changing system with a maximum plate size of 530 x 740 mm and a minimum plate size of 350 x 500 mm. The plate cylinder is equipped with a plate cleaning system and a plate temperature control system.
