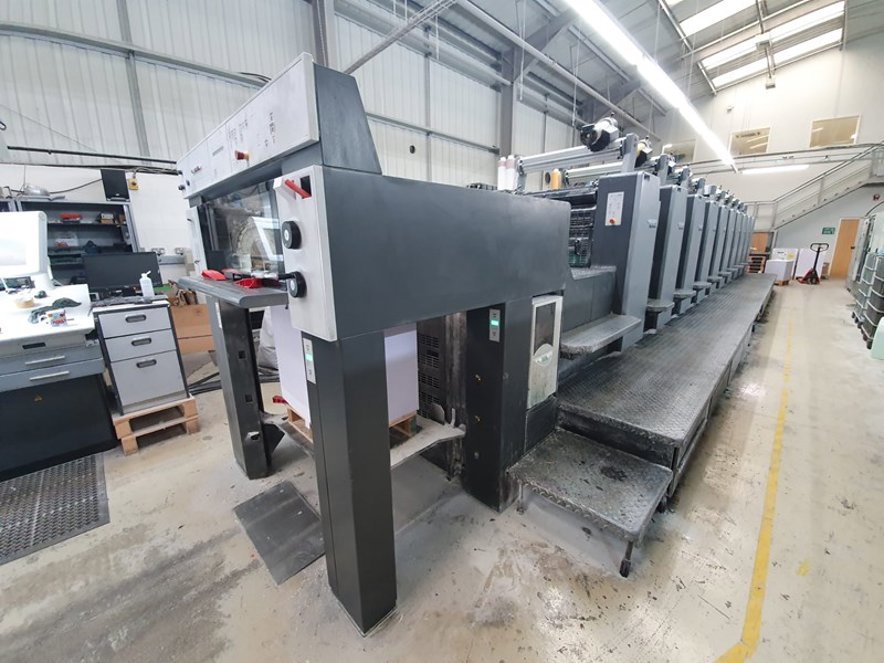

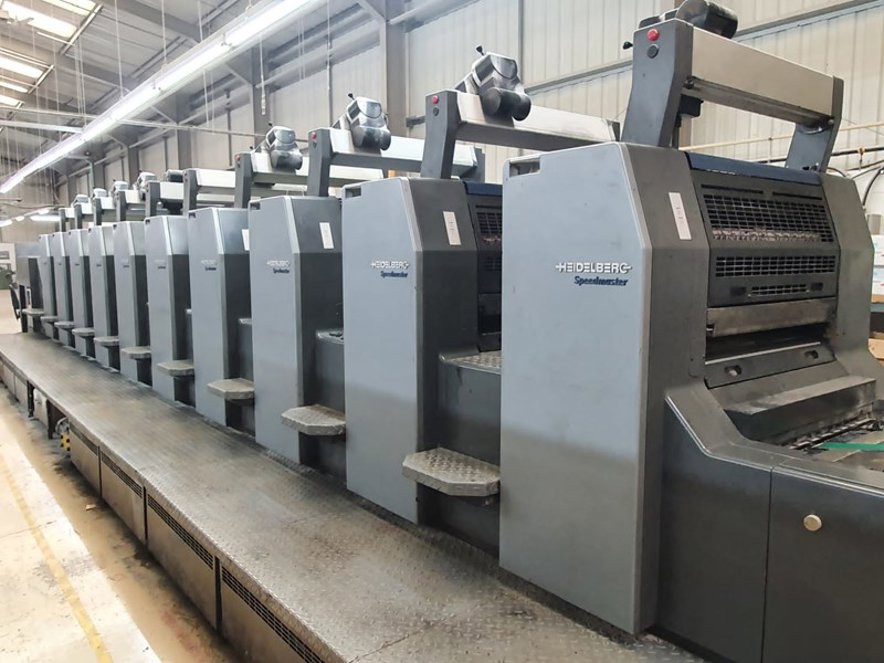

Heidelberg - Speedmaster SM 74-10 PH

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM 74-10 PH has a machine length of 12,300 mm, a machine width of 2,400 mm, and a machine height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum sheet size of 740 x 1,040 mm.

Paper Handling : The SM 74-10 PH features a high-performance paper handling system, including a feeder with a capacity of up to 10,000 sheets, a delivery with a capacity of up to 10,000 sheets, and a pile height of up to 1,500 mm. The machine is equipped with advanced sheet alignment and registration systems, ensuring precise sheet control and minimal waste.

Printing Unit : The printing unit of the SM 74-10 PH is equipped with 10 printing units, each with a maximum printing speed of up to 15,000 sheets per hour. The machine features a maximum printing resolution of 400 lpi and uses advanced offset printing technology to produce high-quality prints.

Ink System : The SM 74-10 PH uses a high-performance ink system, featuring a ink train with 10 ink zones, each with a capacity of up to 20 kg. The machine is equipped with an advanced ink metering system, ensuring precise ink application and minimizing waste.

Plate Cylinder : The plate cylinder of the SM 74-10 PH has a diameter of 740 mm and is designed for high-speed printing applications. The cylinder features a advanced plate clamping system, ensuring precise plate registration and minimal plate wear.
