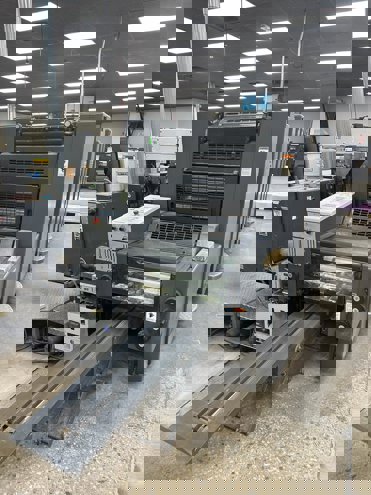

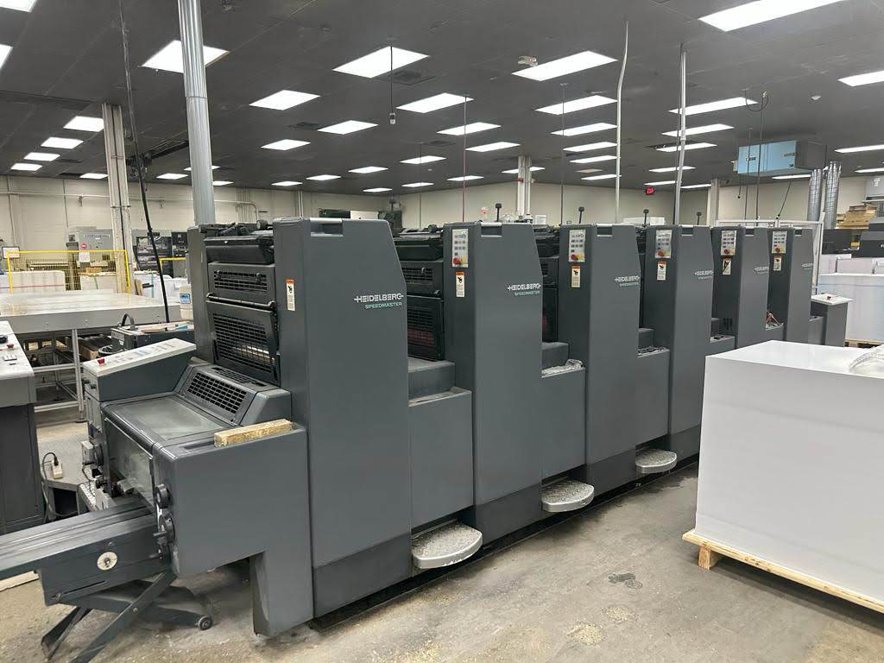

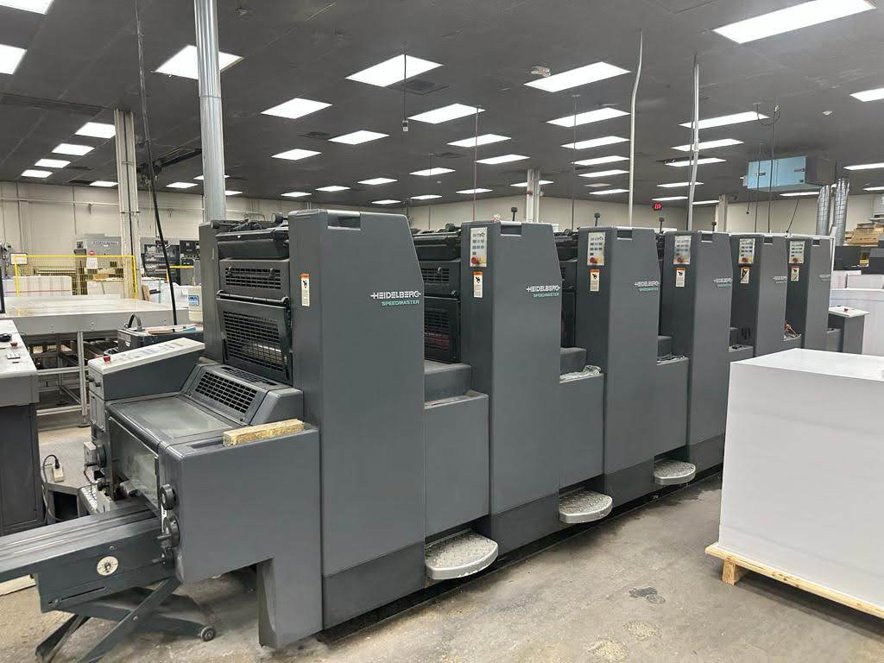

Heidelberg - Speedmaster SM 52-6-P

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM 52-6-P has a length of 7,350 mm, a width of 2,350 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum sheet size of 520 x 740 mm. The press has a production speed of up to 15,000 sheets per hour.

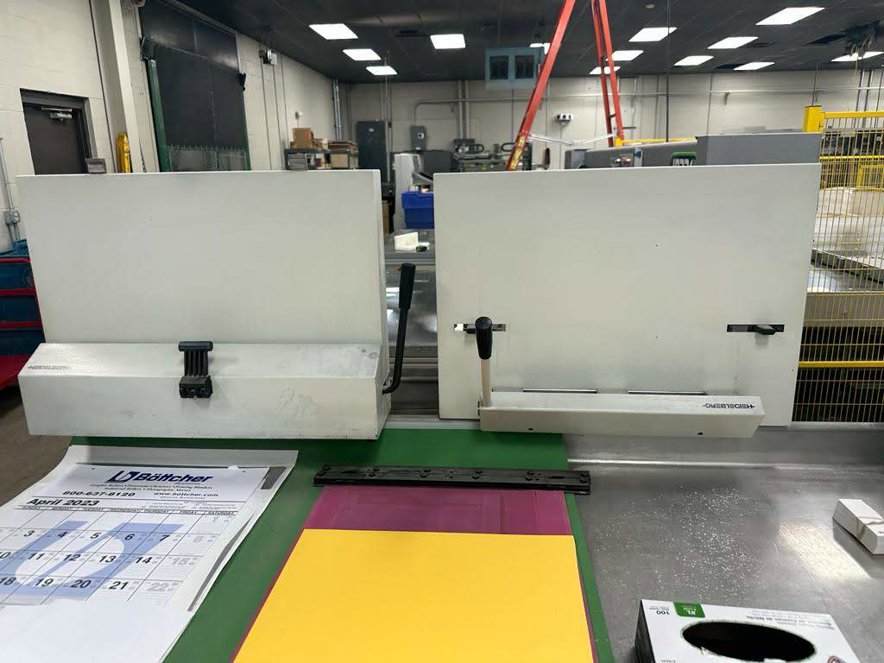

Paper Handling : The SM 52-6-P features a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet size range of 350 x 500 mm to 520 x 740 mm. The press is equipped with a dual-circuit sheet guiding system and a high-speed delivery with a maximum pile height of 1,500 mm.

Printing Unit : The printing unit of the SM 52-6-P features six printing units with a maximum printing speed of 15,000 sheets per hour. The press uses a conventional offset printing process with a maximum printing pressure of 400 kN. The printing unit is equipped with Heidelberg's proprietary Alcolor dampening system and a high-precision inking system.

Ink System : The SM 52-6-P uses a conventional offset ink system with a maximum ink flow rate of 12 kg/h. The press is equipped with a six-roller inking system and a high-precision ink metering system. The ink system features a built-in ink temperature control and an automatic ink supply system.

Plate Cylinder : The plate cylinder of the SM 52-6-P has a diameter of 220 mm and a circumference of 690 mm. The plate cylinder is equipped with a high-precision plate clamping system and a built-in plate temperature control. The press features a fast and easy plate changing system, allowing for quick job changes and minimizing downtime.
