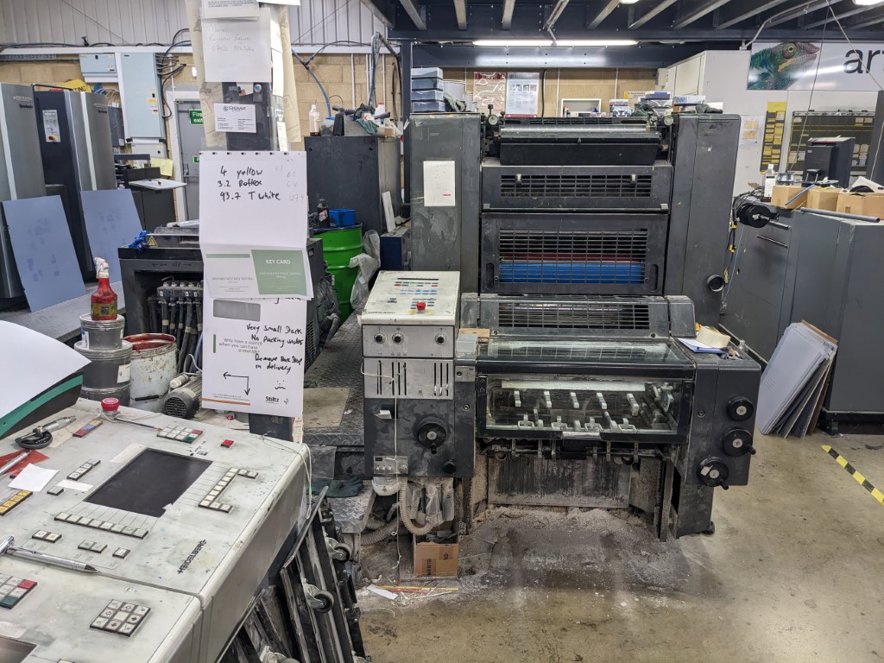

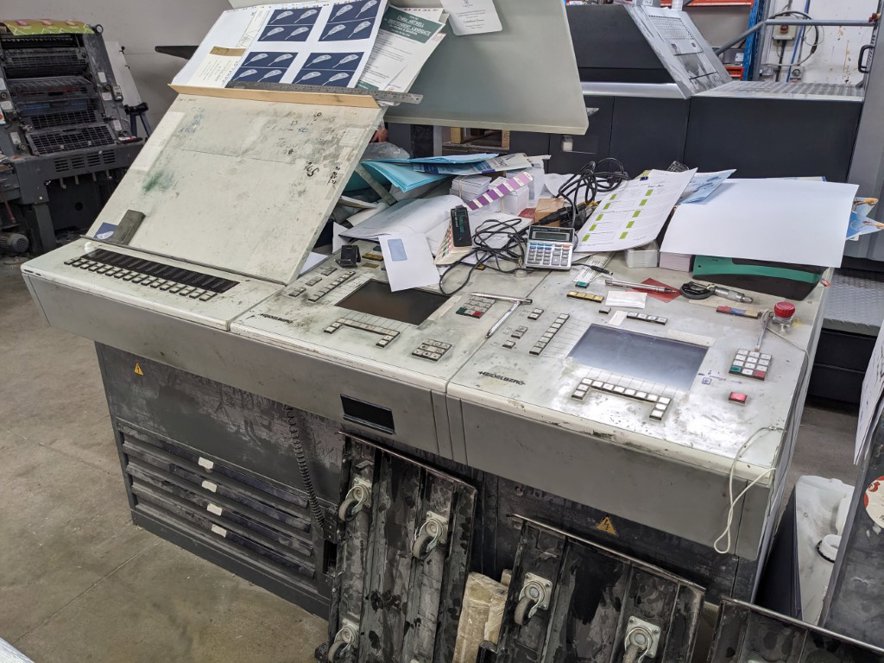

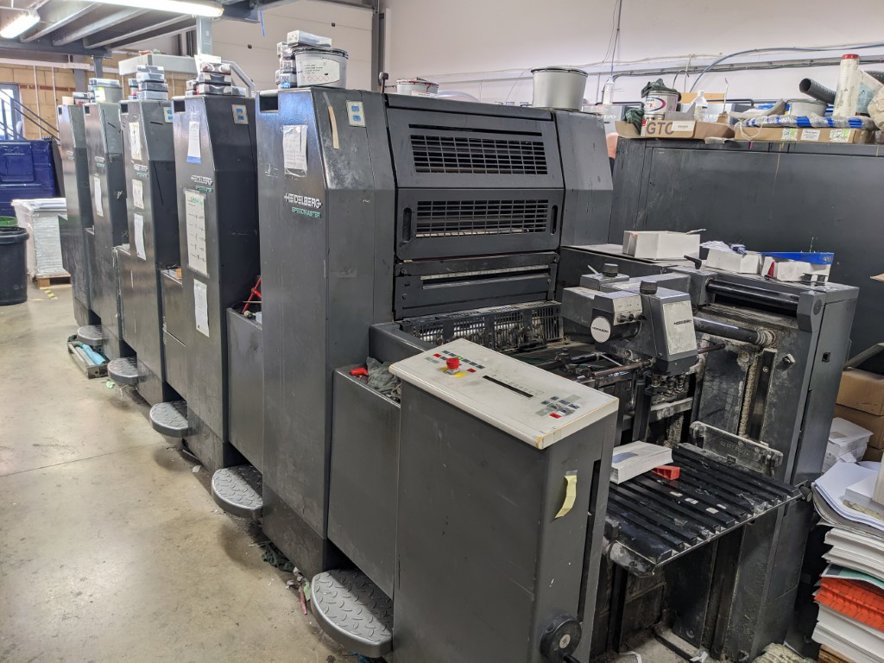

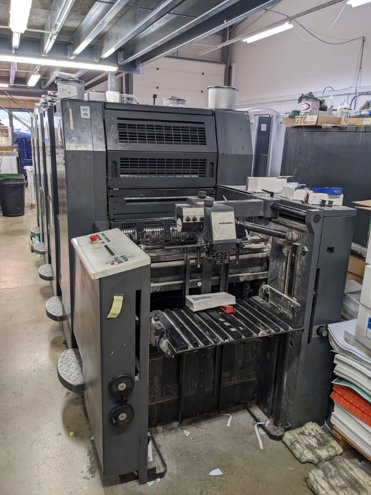

Heidelberg - Speedmaster SM 52-5 P3

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM 52-5 P3 has a length of 6,350 mm, a width of 2,350 mm, and a height of 1,900 mm. It weighs approximately 4,500 kg and has a maximum printing speed of 15,000 sheets per hour. The machine has a maximum sheet size of 520 x 740 mm and a minimum sheet size of 350 x 500 mm.

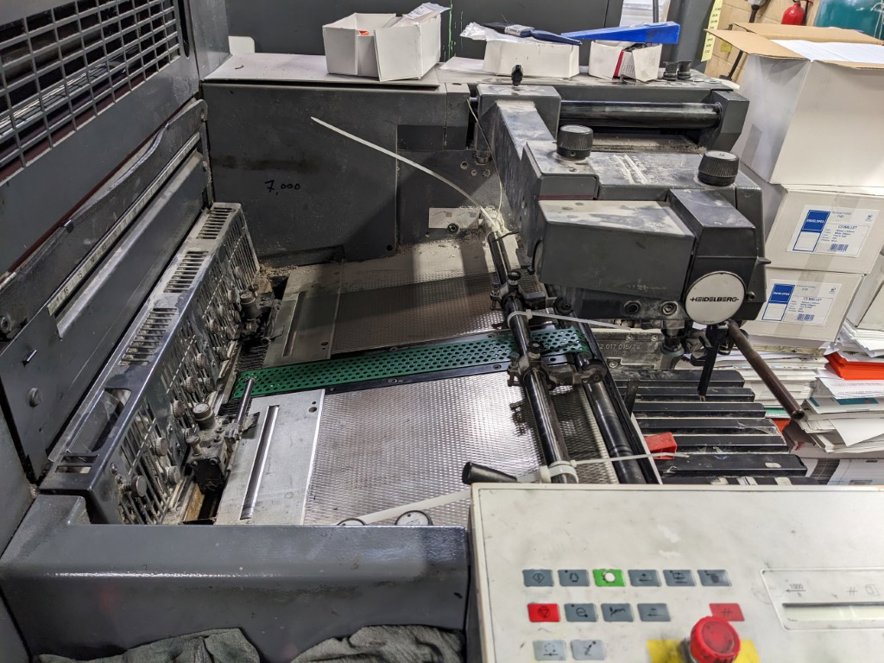

Paper Handling : The SM 52-5 P3 features a feeder with a capacity of 5,000 sheets, an intermediate stacker with a capacity of 2,000 sheets, and a delivery with a capacity of 5,000 sheets. The machine is equipped with Heidelberg's Autoplate XL plate changing system, which allows for fast and efficient plate changes.

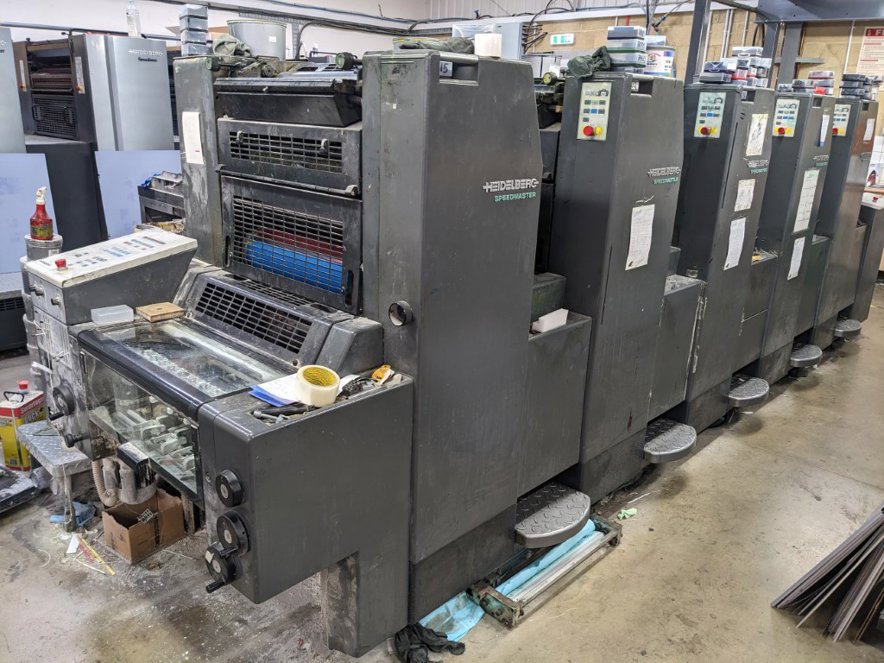

Printing Unit : The printing unit of the SM 52-5 P3 features five printing units, each with a maximum printing speed of 15,000 sheets per hour. The machine uses Heidelberg's Hi-Print technology, which ensures high-quality printing with precise registration and minimal waste. The printing unit has a maximum printing pressure of 400 kN and a printing cylinder diameter of 520 mm.

Ink System : The SM 52-5 P3 uses a conventional ink system with a maximum ink flow rate of 12 kg/h. The machine is equipped with Heidelberg's InkLine ink supply system, which ensures consistent ink flow and minimizes ink waste.

Plate Cylinder : The plate cylinder of the SM 52-5 P3 has a diameter of 520 mm and a length of 740 mm. The machine features Heidelberg's Autoplate XL plate changing system, which allows for fast and efficient plate changes. The plate cylinder is designed for high-quality printing with precise registration and minimal waste.
