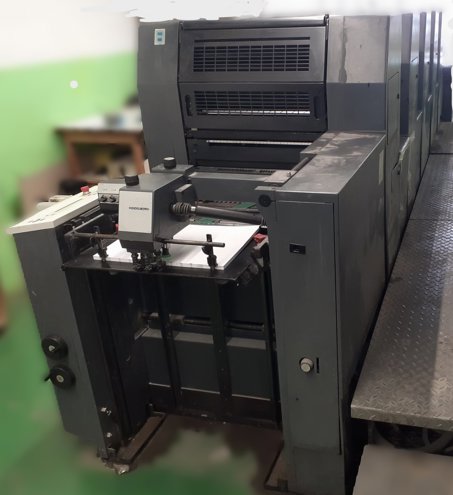

Heidelberg - Speedmaster SM 52-5+ NP

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM 52-5+ NP has a machine length of 6,350 mm, a machine width of 2,350 mm, and a machine height of 1,900 mm. It weighs approximately 12,000 kg and has a maximum sheet size of 520 x 740 mm.

Paper Handling : The SM 52-5+ NP features a high-performance paper handling system, including a feeder with a capacity of up to 5,000 sheets, an anti-static device, and a sheet brake. The machine is equipped with five printing units, each with a delivery stacker and a pile transport system.

Printing Unit : The printing unit of the SM 52-5+ NP is capable of producing up to 15,000 sheets per hour at a maximum printing speed of 15,000 sheets per hour. It features a maximum printing resolution of 400 lpi and utilizes the Heidelberg's proprietary Prinect Press Center technology for precise registration control and color management.

Ink System : The SM 52-5+ NP uses a high-performance ink system with a maximum ink flow rate of 1,200 kg/h. The machine is equipped with a five-roller inking system and features an ink temperature control system for optimal ink viscosity.

Plate Cylinder : The plate cylinder of the SM 52-5+ NP has a diameter of 520 mm and is designed for precise plate registration and consistent print quality. The machine features a plate changing system with a maximum plate size of 520 x 740 mm.
