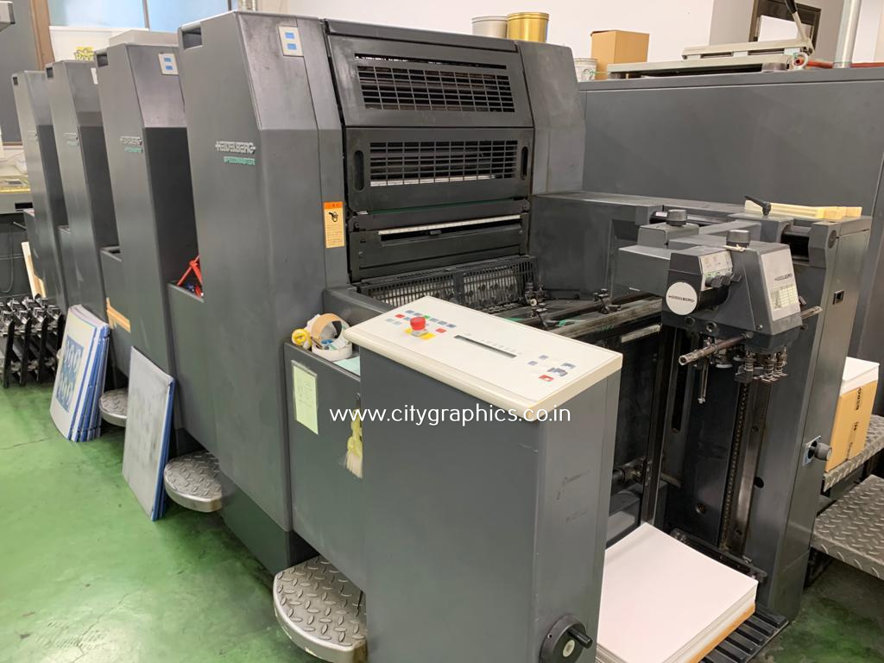

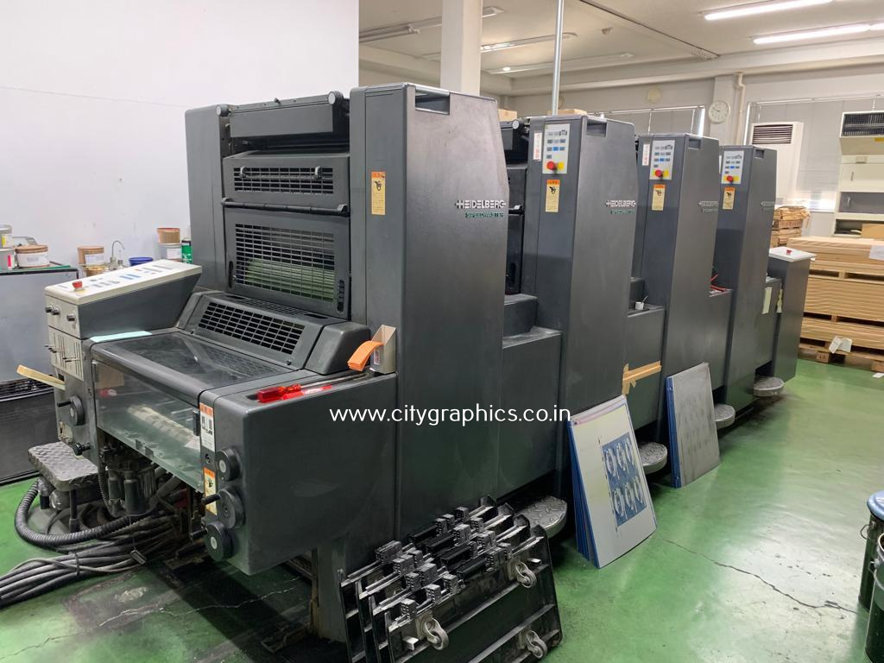

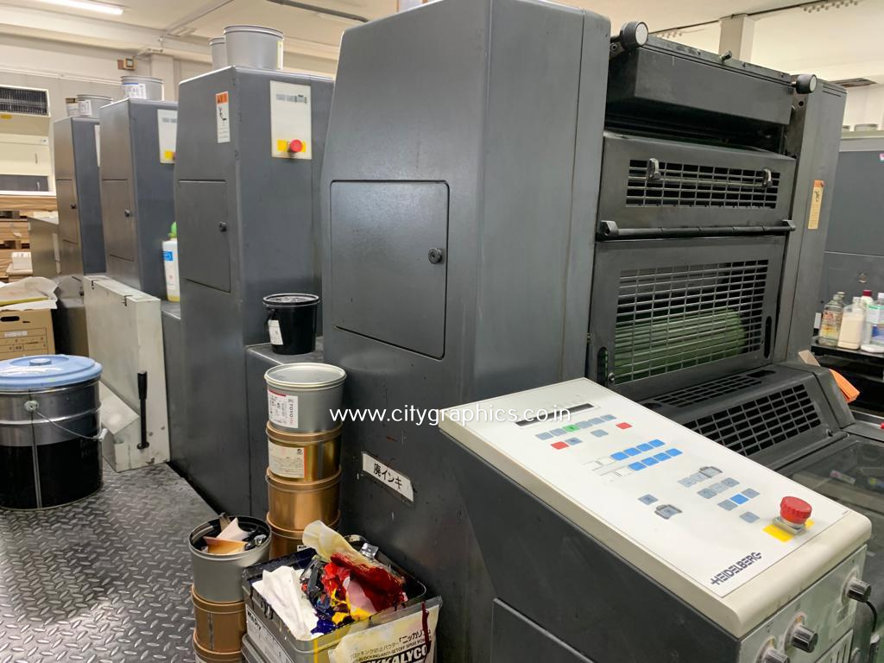

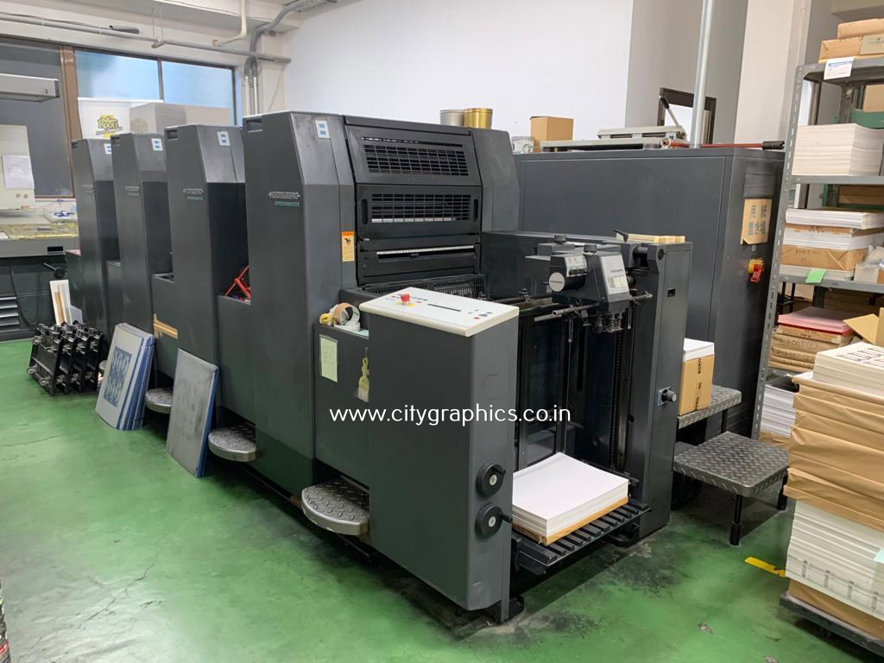

Heidelberg - Speedmaster SM 52-4 P

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM 52-4 P has a length of 5,550 mm, a width of 1,550 mm, and a height of 1,800 mm. It weighs approximately 4,500 kg and has a maximum sheet size of 520 x 740 mm. The press has a production speed of up to 15,000 sheets per hour.

Paper Handling : The SM 52-4 P features a feeder with a capacity of 3,000 sheets, an intermediate stacker with a capacity of 1,500 sheets, and a delivery with a capacity of 3,000 sheets. The press is equipped with a suction tape feeder and a sheet ejection system, ensuring efficient and precise paper handling.

Printing Unit : The printing unit of the SM 52-4 P features a maximum printing speed of 15,000 sheets per hour, with a resolution of 400 lpi. The press uses a conventional offset printing process with a maximum printing area of 520 x 740 mm. The printing unit is equipped with a dampening system, an inking system, and a plate cylinder.

Ink System : The SM 52-4 P uses a conventional offset inking system with a maximum ink flow rate of 1,200 ml/min. The press has a total ink capacity of 12,000 ml and is equipped with an ink temperature control system.

Plate Cylinder : The plate cylinder of the SM 52-4 P has a diameter of 220 mm and a circumference of 690 mm. The plate cylinder is equipped with a plate clamping system and a plate changing system, allowing for fast and efficient plate changes.
