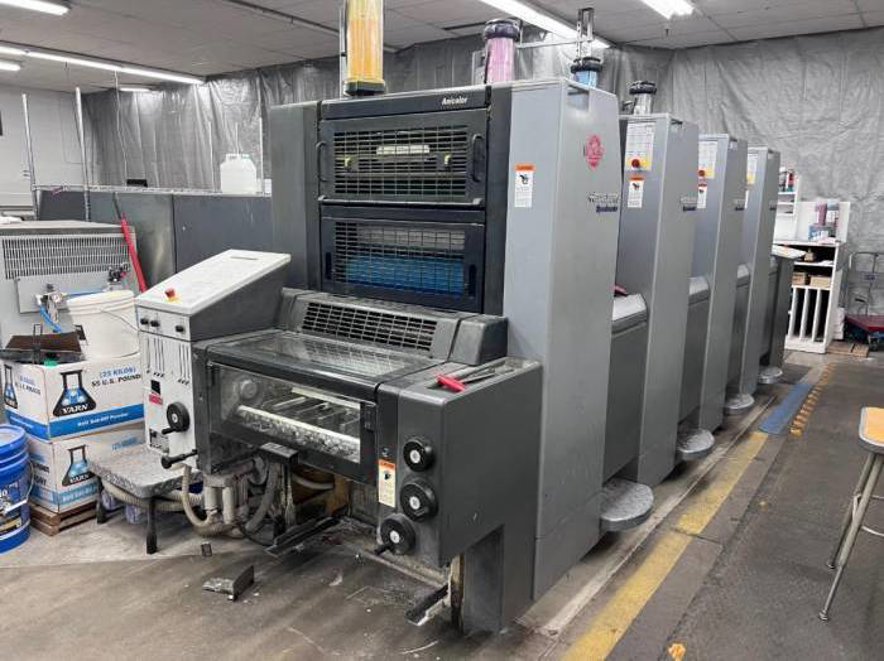

Heidelberg - Speedmaster SM 52-4

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM 52-4 has a length of 5,350 mm, a width of 1,550 mm, and a height of 1,800 mm. It weighs approximately 4,500 kg and has a maximum sheet size of 520 x 740 mm. The press has a maximum printing speed of 15,000 sheets per hour.

Paper Handling : The Speedmaster SM 52-4 features a feeder with a capacity of 3,000 sheets, an intermediate stacker with a capacity of 2,000 sheets, and a delivery with a capacity of 3,000 sheets. The press is equipped with a sheet guidance system, which ensures precise sheet alignment and registration.

Printing Unit : The printing unit of the Speedmaster SM 52-4 features four printing units, each with a maximum printing speed of 15,000 sheets per hour. The press uses a conventional offset printing process with a maximum printing resolution of 400 lpi. The printing units are equipped with Heidelberg's proprietary Alcolor dampening system, which ensures consistent and precise ink transfer.

Ink System : The Speedmaster SM 52-4 uses a conventional offset ink system with a maximum ink capacity of 20 kg per unit. The press features Heidelberg's InkLine ink supply system, which ensures consistent and precise ink flow to the printing units.

Plate Cylinder : The plate cylinder of the Speedmaster SM 52-4 has a diameter of 520 mm and a circumference of 1,640 mm. The plate cylinder is equipped with Heidelberg's proprietary Autoplate plate changing system, which enables fast and efficient plate changes.
