Heidelberg - Speedmaster SM 102 ZP

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM 102 ZP has a machine length of 6,350 mm, a machine width of 2,350 mm, and a machine height of 2,150 mm. It weighs approximately 12,000 kg and has a maximum sheet size of 720 x 1,020 mm.

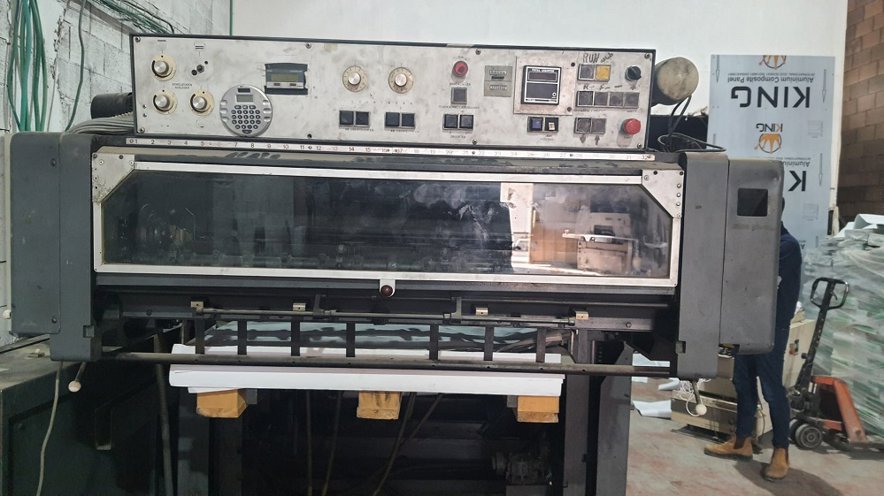

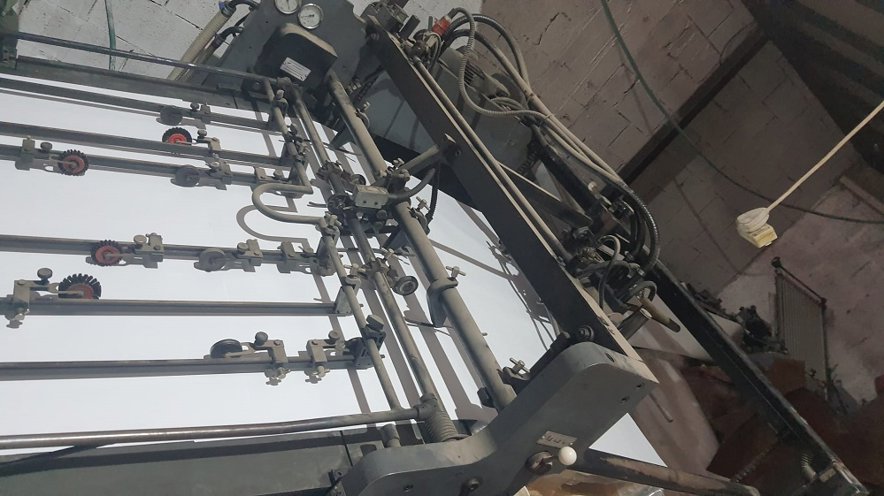

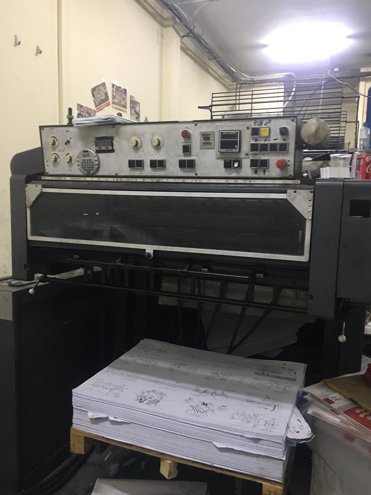

Paper Handling : The Speedmaster SM 102 ZP features a high-capacity feeder with a maximum pile height of 1,400 mm and a sheet thickness range of 0.03 to 1.2 mm. The press is equipped with a dual-circuit sheet guiding system and a precision sheet alignment system, ensuring accurate registration and smooth paper flow. The delivery section features a high-speed delivery pile with a maximum pile height of 1,200 mm.

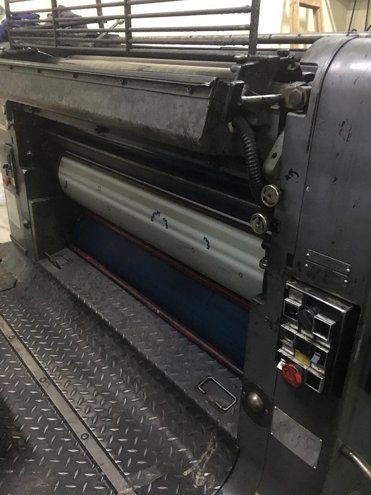

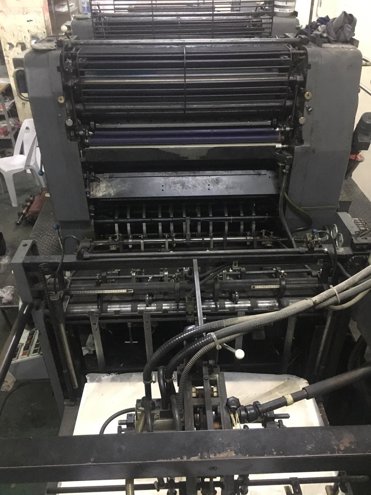

Printing Unit : The printing unit of the Speedmaster SM 102 ZP is equipped with a maximum print speed of 15,000 sheets per hour and a print resolution of 300 lpi. The press uses a conventional offset printing process with a maximum printing pressure of 400 kN. The printing unit features a seven-color configuration, with the option to add additional colors or special finishes.

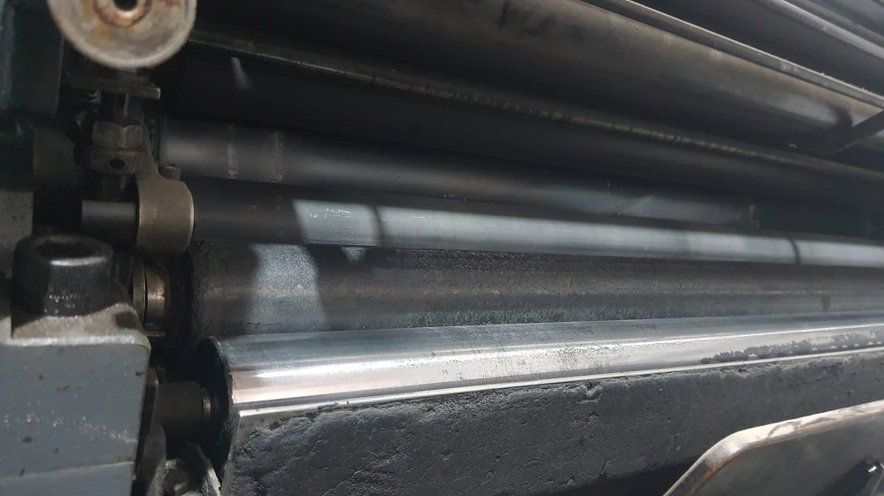

Ink System : The Speedmaster SM 102 ZP uses a high-performance ink system with a maximum ink flow rate of 12 kg/h. The press features a ductless ink system with a single-ink train per unit, ensuring consistent ink distribution and reduced ink waste. The ink system is equipped with an automatic ink temperature control system and an ink viscosity control system.

Plate Cylinder : The plate cylinder of the Speedmaster SM 102 ZP has a diameter of 1,020 mm and a circumference of 3,200 mm. The plate cylinder features a precision-ground surface and a chrome-plated finish, ensuring excellent plate durability and consistent print quality. The plate cylinder is equipped with a pneumatic clamping system and an automatic plate changing system, allowing for fast and efficient plate changes.
