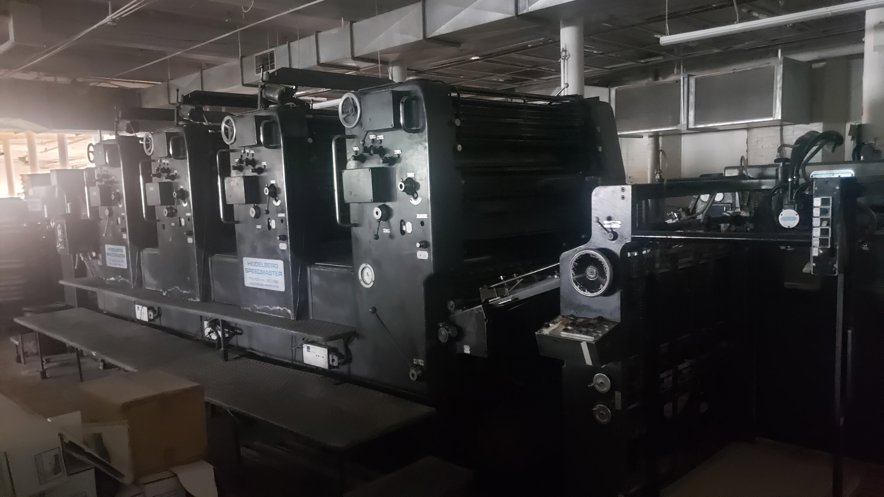

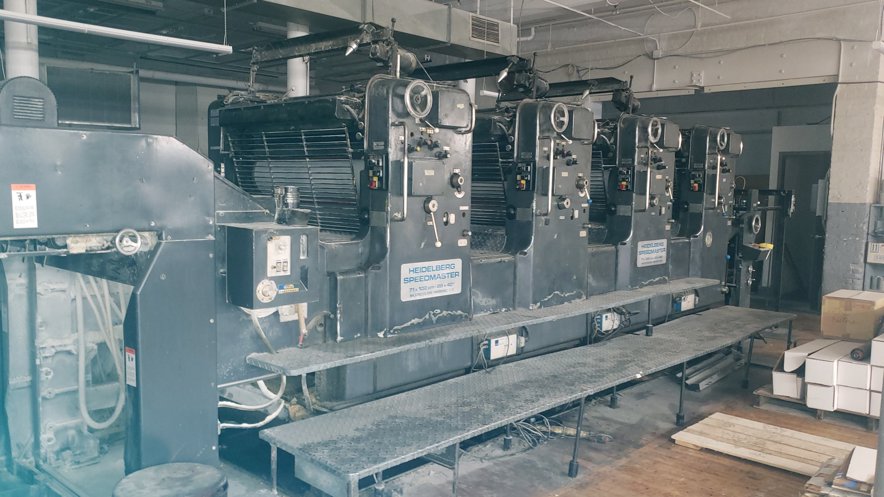

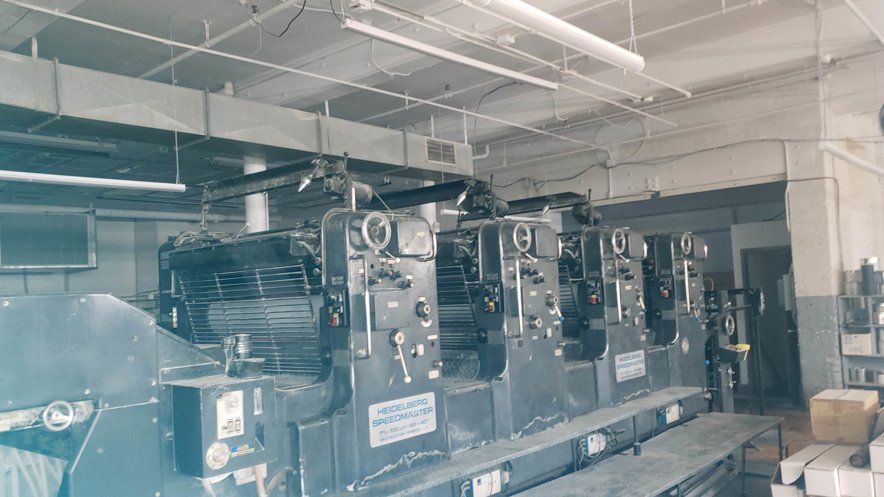

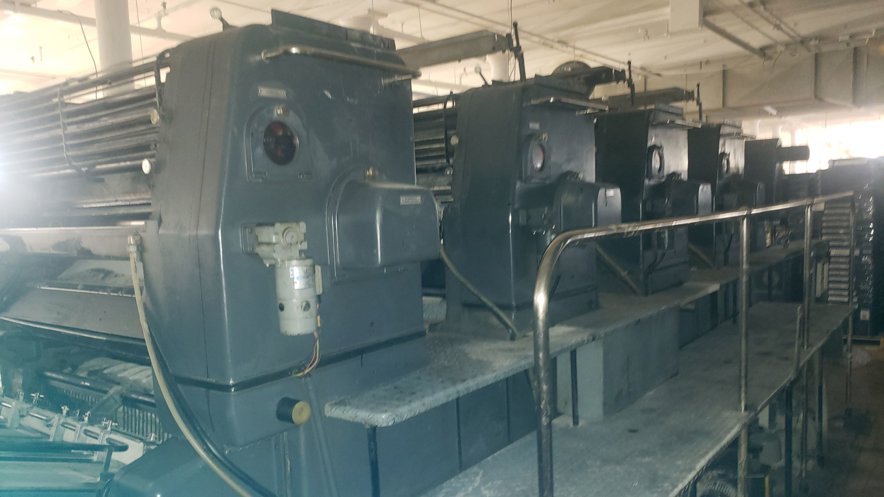

Heidelberg - Speedmaster SM 102 VP

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM 102 VP has a length of 23.62 ft (7.2 m), a width of 10.17 ft (3.1 m), and a height of 7.55 ft (2.3 m). It weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size capacity of 28.35 x 40.16 in (720 x 1020 mm).

Paper Handling : The SM 102 VP features a high-capacity feeder with a maximum pile height of 31.5 in (800 mm) and a sheet size range of 7.87 x 10.63 in (200 x 270 mm) to 28.35 x 40.16 in (720 x 1020 mm). The machine is equipped with a dual-circuit sheet guiding system and a precision register control system, ensuring accurate sheet alignment and registration.

Printing Unit : The printing unit of the SM 102 VP features a maximum printing speed of 15,000 sheets per hour, with a resolution of 400 lpi (150 l/cm). The machine uses a conventional offset printing process with a maximum printing area of 28.35 x 40.16 in (720 x 1020 mm).

Ink System : The SM 102 VP uses a conventional offset ink system with a maximum ink transfer rate of 1.5 kg/h. The machine is equipped with a high-precision ink metering system and an automatic ink supply system, ensuring consistent and accurate ink transfer.

Plate Cylinder : The plate cylinder of the SM 102 VP has a diameter of 4.33 ft (1.32 m) and a circumference of 13.78 ft (4.2 m). The machine features a high-precision plate cylinder with a maximum plate size of 28.35 x 40.16 in (720 x 1020 mm), ensuring accurate and consistent plate registration.
