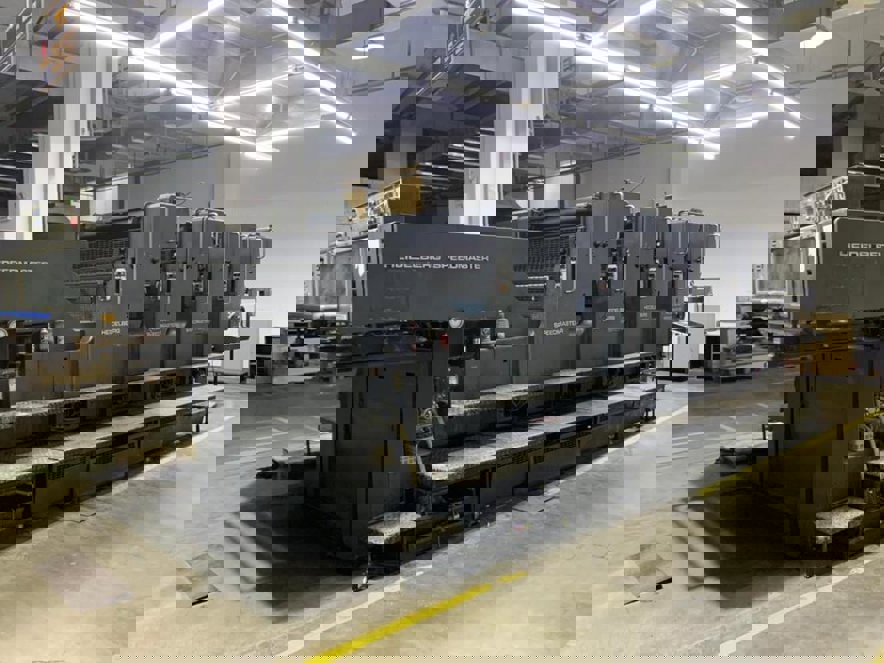

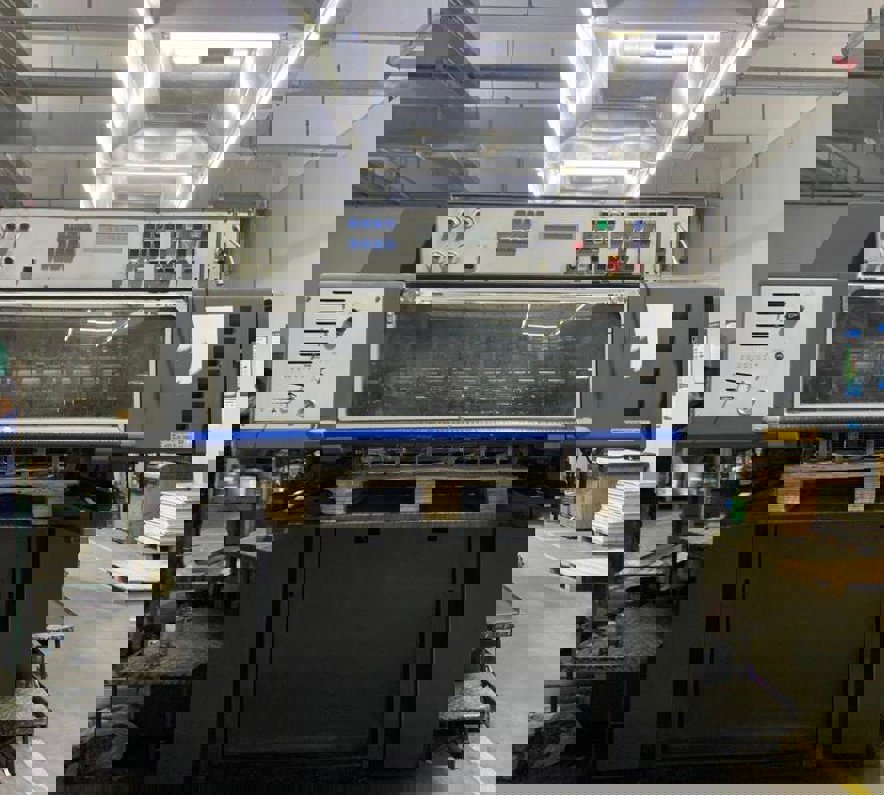

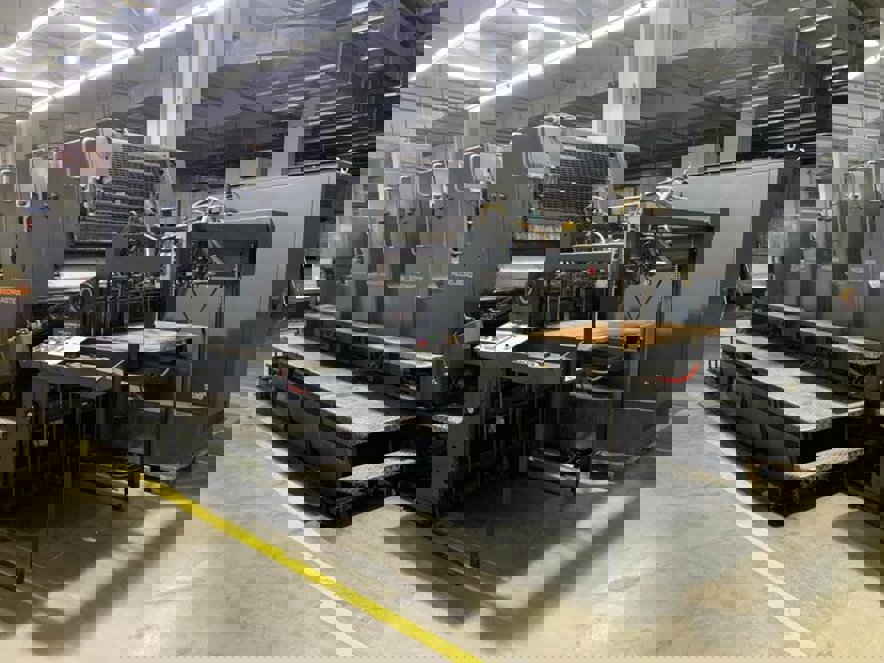

Heidelberg - Speedmaster SM 102 V

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM 102 V has a length of 23.62 ft (7.2 m), a width of 6.56 ft (2 m), and a height of 7.38 ft (2.25 m). It weighs approximately 22,046 lbs (10,000 kg) and has a maximum printing speed of 15,000 sheets per hour.

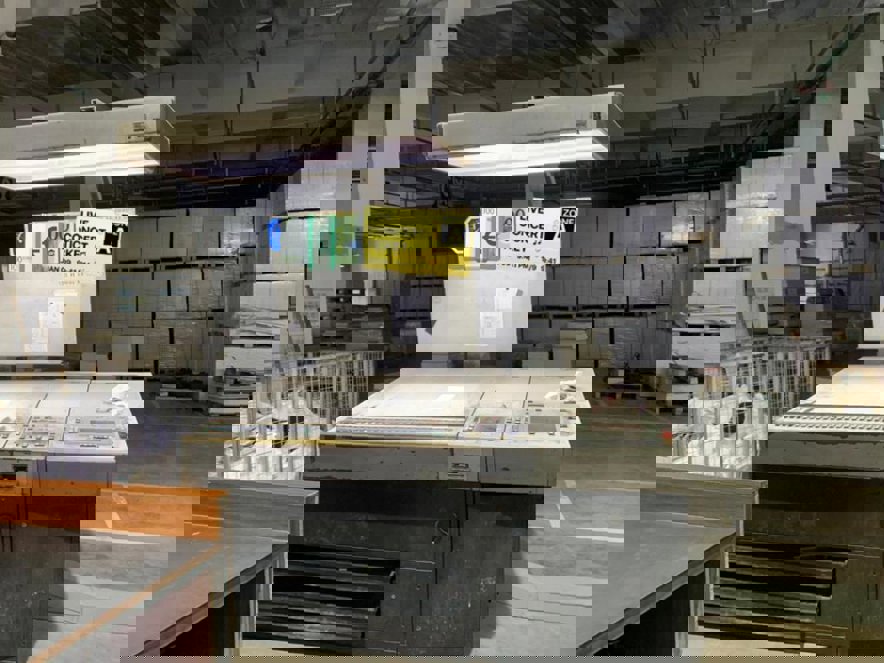

Paper Handling : The SM 102 V features a highly advanced paper handling system, including a feeder with a capacity of up to 5,000 sheets, a delivery system with a capacity of up to 10,000 sheets, and a sheet-reversing device for perfecting applications. The machine is also equipped with a high-precision sheet alignment system and an automatic sheet-size changeover feature.

Printing Unit : The printing unit of the SM 102 V is equipped with a maximum printing format of 28.35 x 40.16 in (72 x 102 cm) and a minimum printing format of 7.87 x 10.24 in (20 x 26 cm). It features a printing speed of up to 15,000 sheets per hour, a maximum printing pressure of 4,000 kN, and a precision registration system with automatic plate alignment.

Ink System : The SM 102 V uses a high-performance ink system with a maximum ink flow rate of 12 kg/h. The machine is equipped with a ductless ink system, which ensures consistent ink flow and reduces ink waste. The ink system also features an automatic ink temperature control and an ink viscosity control system.

Plate Cylinder : The plate cylinder of the SM 102 V has a diameter of 4.33 in (110 mm) and a circumference of 13.58 in (345 mm). It features a precision-ground surface and is designed for high-speed printing applications. The plate cylinder is also equipped with a automatic plate-changing system, which reduces downtime and increases productivity.
